Ordering Points to Identify the Clustering Structure (OPTICS)

Implementation of the OPTICS (Ordering points to identify the clustering structure) point ordering algorithm using a k-d tree.

Usage

optics(x, eps = Inf, minPts = 5, ...)

# S3 method for class 'optics'
print(x, ...)

# S3 method for class 'optics'
plot(x, col = NULL, ...)

# S3 method for class 'optics'
as.reachability(object, ...)

# S3 method for class 'optics'
as.dendrogram(object, ...)

extractDBSCAN(object, eps_cl)

extractXi(object, xi, minimum = FALSE, correctPredecessors = TRUE)

# S3 method for class 'optics'
predict(object, newdata, data, ...)

Arguments

x: a data matrix or a dist object.
eps: maximum epsilon neighborhood size only used for performance. The default Inf does not restrict the neighborhood and gives the complete reachability structure. NULL is treated as Inf. See details.
minPts: the parameter is used to identify dense neighborhoods. The core distance of a point is the distance to its (minPts - 1)-th nearest neighbor (minPts includes the point itself). It is used to calculate the reachability distances and controls the smoothness of the reachability plot. Default is 5 points.
...: additional arguments are passed on to fixed-radius nearest neighbor search algorithm. See frNN() for details on how to control the search strategy. For plot(), they are passed on to plot.reachability() (e.g., hide_first and type).
col: colors used to plot the reachability distances in the order of the points in the ordering. The default NULL colors the points by cluster (noise is shown in black).
object: clustering object.
eps_cl: Threshold to identify clusters (eps_cl <= eps).
xi: Steepness threshold between 0 and 1 (exclusive) to identify clusters hierarchically using the Xi method.
minimum: logical, representing whether or not to extract the minimal (non-overlapping) clusters in the Xi clustering algorithm.
correctPredecessors: logical, correct a common artifact by pruning the steep up area for points that have predecessors not in the cluster–found by the ELKI framework, see details for extractXi().
newdata: new data points for which the cluster membership should be predicted.
data: the data set used to create the clustering object.

Value

An object of class optics with components:

eps: value of eps parameter.
minPts: value of minPts parameter.
order: optics order for the data points in x.
reachdist: reachability distance for each data point in x.
coredist: core distance for each data point in x.

For extractDBSCAN(), in addition the following components are available:

eps_cl: the value of the eps_cl parameter.
cluster: assigned cluster labels in the order of the data points in x.

For extractXi(), in addition the following components are available:

xi: Steepness threshold xi.
cluster: assigned cluster labels in the order of the data points in x.
clusters_xi: data.frame containing the start and end of each cluster found in the OPTICS ordering.

Details

The Algorithm

This implementation of OPTICS implements the original algorithm as described by Ankerst et al (1999). OPTICS is an ordering algorithm with methods to extract a clustering from the ordering. While using similar concepts as DBSCAN, minPts in OPTICS has a different effect than in DBSCAN. Since it is also used to calculate the reachability distance, larger values will make the reachability distance plot smoother. The parameter eps is optional. It represents an upper limit for the neighborhood size that can be used to reduce computational complexity for large data sets. The default eps = Inf does not limit the neighborhood size and gives the complete reachability structure.

OPTICS linearly orders the data points such that points which are spatially closest become neighbors in the ordering. The closest analog to this ordering is dendrogram in single-link hierarchical clustering. The algorithm also calculates the reachability distance for each point. plot() (see reachability_plot) produces a reachability plot which shows each points reachability distance between two consecutive points where the points are sorted by OPTICS. Valleys represent clusters (the deeper the valley, the more dense the cluster) and high points indicate points between clusters.

Specifying the Data

If x is specified as a data matrix, then Euclidean distances and fast nearest neighbor lookup using a k-d tree are used. See kNN() for details on the parameters for the k-d tree.

The effect of eps

The default eps = Inf (NULL is also treated as Inf) does not restrict the neighborhood and results in the complete reachability structure (only the first reachability distance is undefined). This is the original OPTICS behavior. Computation in this implementation uses Prim's algorithm on the reachability graph using core distances and distances that are calculated on the fly. This needs only \(O(n)\) additional memory, but the running time is quadratic in the number of data points, so it can still be slow for large data sets.

A finite eps restricts the maximum epsilon neighborhood size, which can improve performance significantly for large data sets. If eps is too small, then points can have undefined core distances (they are noise) and reachability distances. Undefined reachability distances are shown as dotted lines in the reachability plot, and the ordering can differ from the one for eps = Inf. optics() gives a warning if a finite eps results in undefined reachability distances in addition to the first one. If the plot shows too many dotted lines then eps should be increased.

Ties

OPTICS repeatedly processes the unprocessed point with the smallest reachability distance. If several points have the same reachability distance, ties are broken by the position of the point in the data: the point with the lower id (row number) is processed first. This follows the ELKI implementation. With ties, the returned order (and therefore the reachability plot and extracted clusters) can depend on the row order of the data. Ties are common for data with repeated values or for data on a regular grid.

Extracting a Clustering

Several methods to extract a clustering from the order returned by OPTICS are implemented:

extractDBSCAN() extracts a clustering from an OPTICS ordering that is similar to what DBSCAN would produce with an eps set to eps_cl (see Ankerst et al, 1999). The only difference to a DBSCAN clustering is that OPTICS is not able to assign some border points and reports them instead as noise.
extractXi() extract clusters hierarchically specified in Ankerst et al (1999) based on the steepness of the reachability plot. One interpretation of the xi parameter is that it classifies clusters by change in relative cluster density. The algorithm is a port of the implementation in the ELKI framework (version 0.8.0). It follows Ankerst et al (1999) with the improvements described in Schubert and Gertz (2018). With correctPredecessors = TRUE (the default), the end of each cluster is shortened so that the predecessor of its last point is inside the cluster. This step is not part of the original algorithm and removes a common artifact (found by the ELKI framework). Clusters with fewer than minPts points are not reported.

Predict Cluster Memberships

predict() requires an extracted DBSCAN clustering with extractDBSCAN() and then uses predict for dbscan().

References

Mihael Ankerst, Markus M. Breunig, Hans-Peter Kriegel, Joerg Sander (1999). OPTICS: Ordering Points To Identify the Clustering Structure. ACM SIGMOD international conference on Management of data. ACM Press. pp. 49-60. doi:10.1145/304181.304187

Hahsler M, Piekenbrock M, Doran D (2019). dbscan: Fast Density-Based Clustering with R. Journal of Statistical Software, 91(1), 1-30. doi:10.18637/jss.v091.i01

Erich Schubert, Michael Gertz (2018). Improving the Cluster Structure Extracted from OPTICS Plots. In Lernen, Wissen, Daten, Analysen (LWDA 2018), pp. 318-329.

Author

Michael Hahsler and Matthew Piekenbrock

Examples

set.seed(2)
n <- 400

x <- cbind(
  x = runif(4, 0, 1) + rnorm(n, sd = 0.1),
  y = runif(4, 0, 1) + rnorm(n, sd = 0.1)
  )

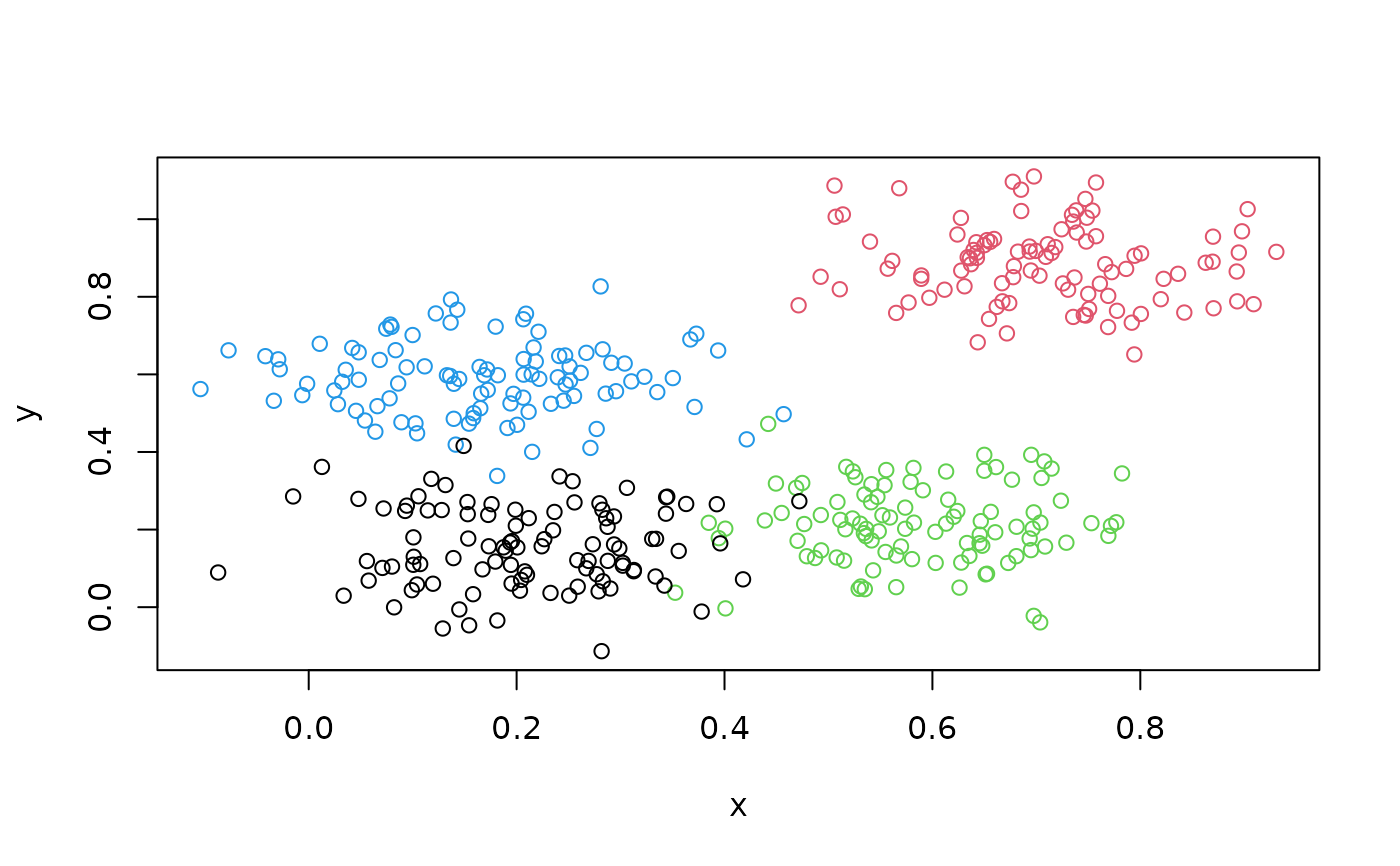

plot(x, col=rep(1:4, times = 100), asp = 1)


### run OPTICS (Note: we use the default eps = Inf)
res <- optics(x, minPts = 10)
res
#> OPTICS ordering/clustering for 400 objects.
#> Parameters: minPts = 10, eps = Inf, eps_cl = NA, xi = NA
#> Available fields: order, reachdist, coredist, predecessor, minPts, eps,
#>                   eps_cl, xi

### get order
res$order
#>   [1]   1  13  17  21  89 149 165 193 209  57 169 241 153 177 253 281 285 321
#>  [19]  29 257 333 357  77 105 293 301 229 145 181   9 117 101 185 317 377 381
#>  [37] 385 393  73 237 273 365 369 397 245 305 249 337 349 157 309 205 213 345
#>  [55]  33  49  97  41  83  25 389 121   5 329 161  53  85 141 189 217 341 225
#>  [73]  61  69 261  81 173 221 125 289 297 313 129 133 109 197  59 137 363  93
#>  [91] 277  35 191  91 147 201 203 231  11 227 235 271 299 311 351  71 375 379
#> [109] 399 291  23  55 219 323 275  47 263   3  87 175 331 367 171 247 251 319
#> [127] 339 111 223  51  63 151  31 131 143 207 303 343 391  99 115 215 283 287
#> [145] 359  43 183  27  79 199 243 295  67 347 139 187 255  39 107 195 239 119
#> [163] 179 395 371 123 159 211 103 355 327   7  95 167 267 155  15 135 259 315
#> [181] 335 383 387 113 279 373   4 127 265 353  37  45  19 224 172   8 144 160
#> [199] 192 208 232  28  72 100 256 260 288 336 368  32  96  16  88 108 120 252
#> [217] 268 292 156 124 188 220 304 340 356 388  56 136 168 332 372 236 244  76
#> [235] 184 392 380 348 116 112 280  64  52 148 152 352 360 361 284  48 216  84
#> [253]  36  92  20  80 180 212 128 200 264 272  12 196 364 132  40 324  68 164
#> [271] 176 308 316 312 384 248 300 204 328 344 140  24 296 320  60 228 276  44
#> [289]  65 233 400 163 240 376 104 396 307  75  14 325 269  82  66  70  10  18
#> [307] 158 214 226 254 246 314 350 378 366 290 342  38 190   6  34  26  98 174
#> [325] 210 282 298 310 362 374 122 318  46 142 278 330 358 386  62 118 114 202
#> [343] 322 198 286 294 242 394  30 130 162 266   2 182 382  74 126 170 194 354
#> [361] 186 150 206 234  86 306 102 338 134 346 250  78  94 138 390  42  58 274
#> [379] 258  90 146 218 222 370 326 110 270 334 166 178 398 262  22  50 238 106
#> [397] 154 230 302  54

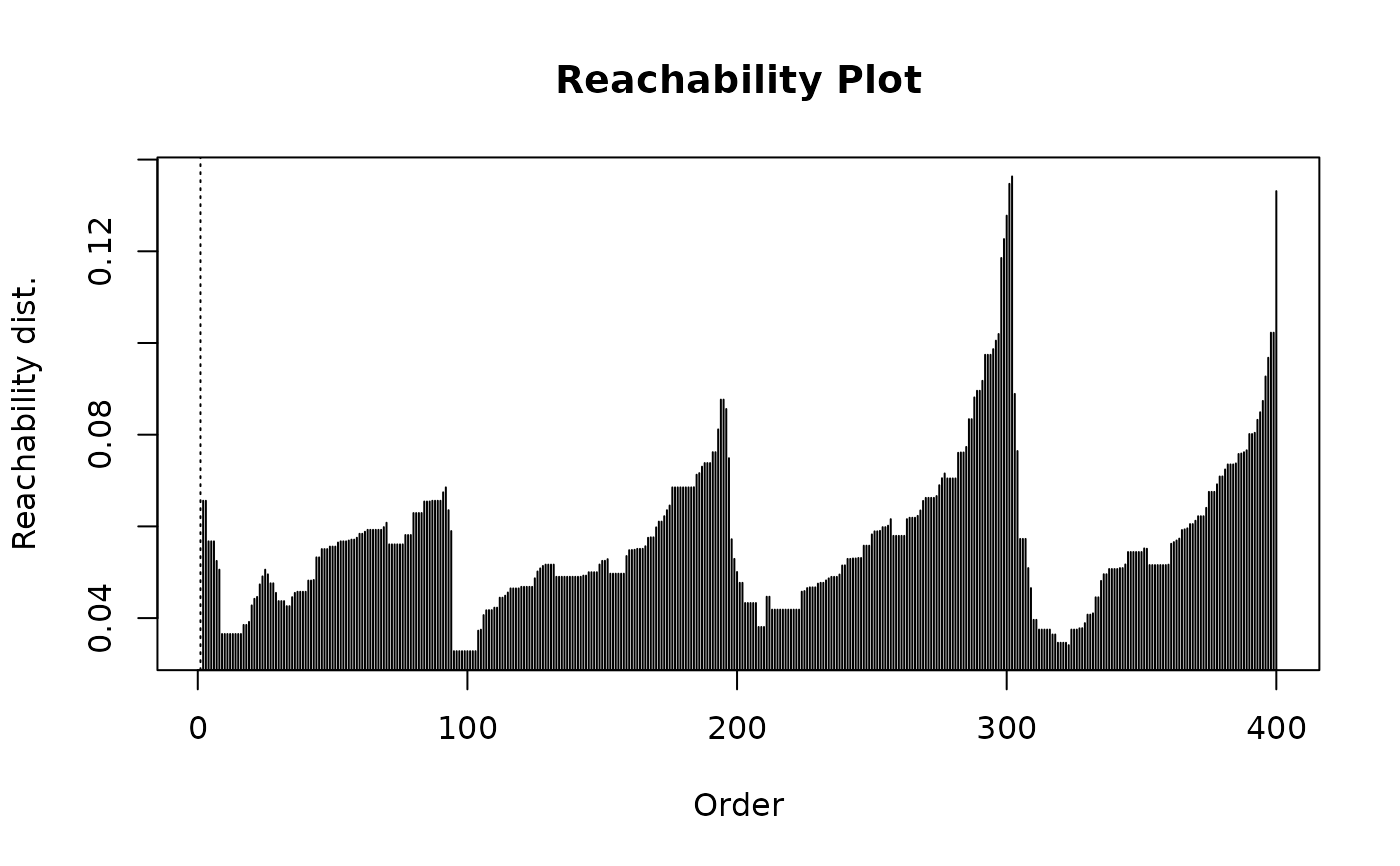

### plot produces a reachability plot
plot(res)

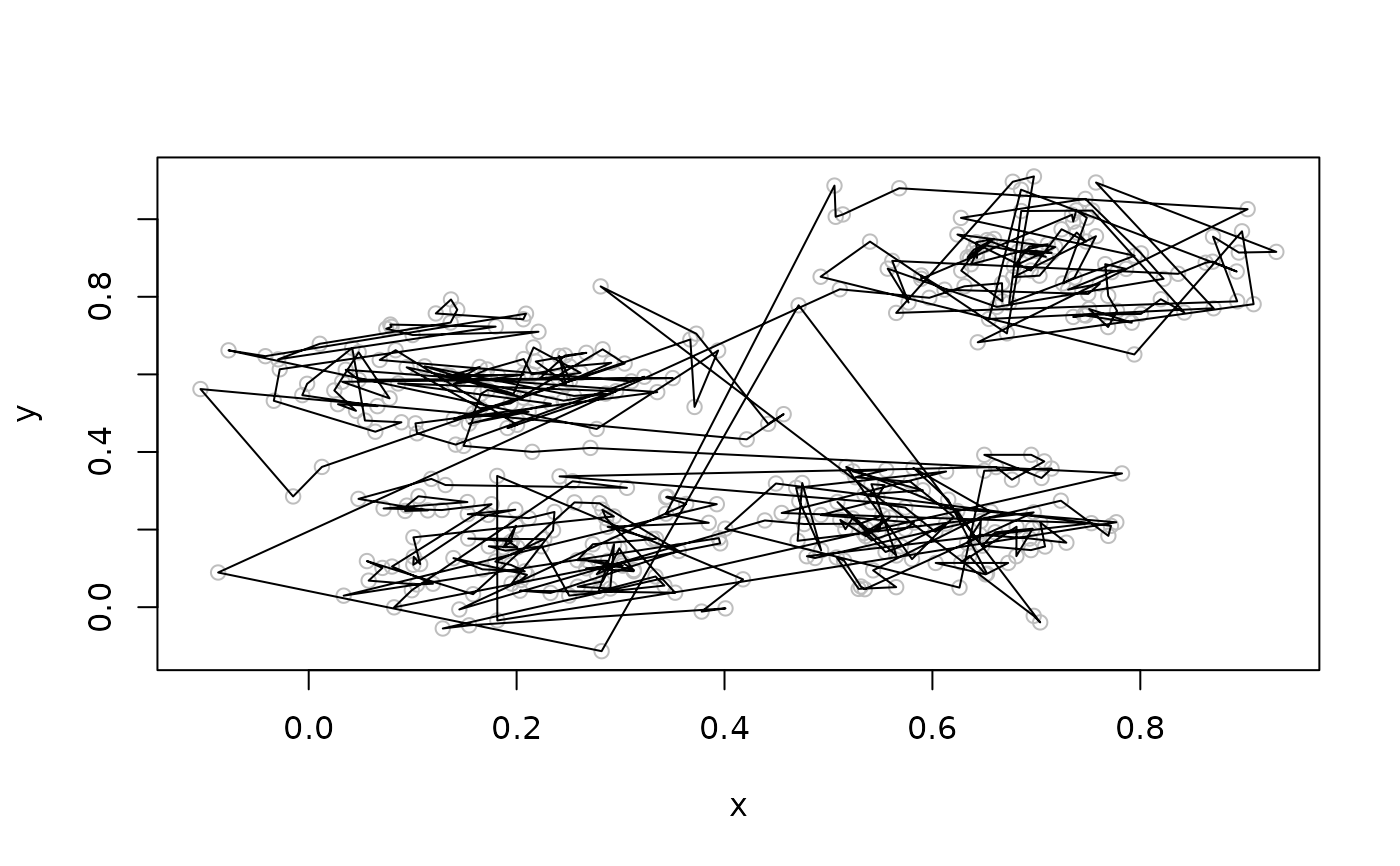

### plot the order of points in the reachability plot
plot(x, col = "grey", pch = 19, asp = 1)
polygon(x[res$order, ])


### extract a DBSCAN clustering by cutting the reachability plot at eps_cl
res <- extractDBSCAN(res, eps_cl = .065)
res
#> OPTICS ordering/clustering for 400 objects.
#> Parameters: minPts = 10, eps = Inf, eps_cl = 0.065, xi = NA
#> The clustering contains 4 cluster(s) and 95 noise points.
#>
#>  0  1  2  3  4
#> 95 78 83 73 71
#>
#> Available fields: order, reachdist, coredist, predecessor, minPts, eps,
#>                   eps_cl, xi, cluster

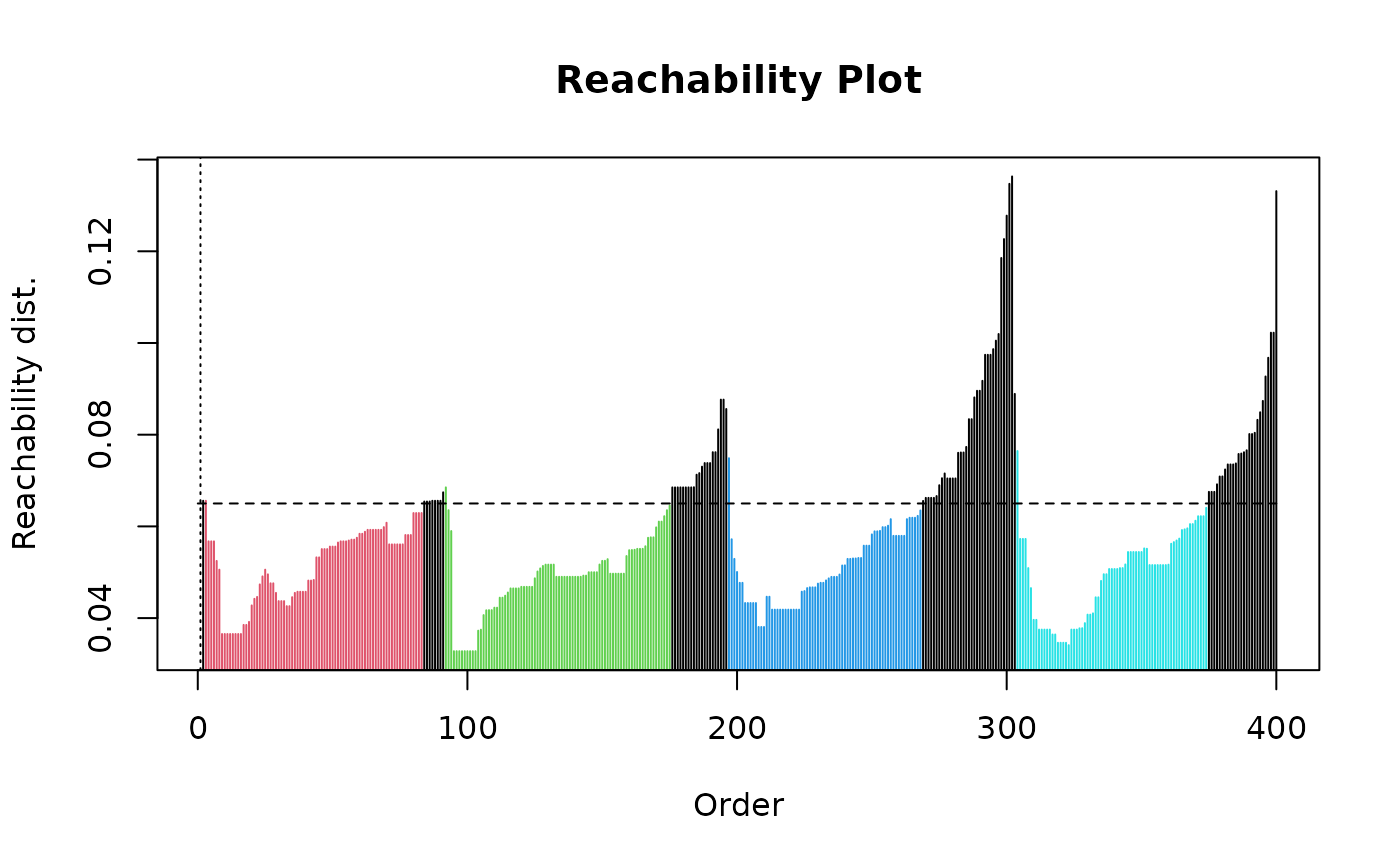

plot(res)  ## black is noise

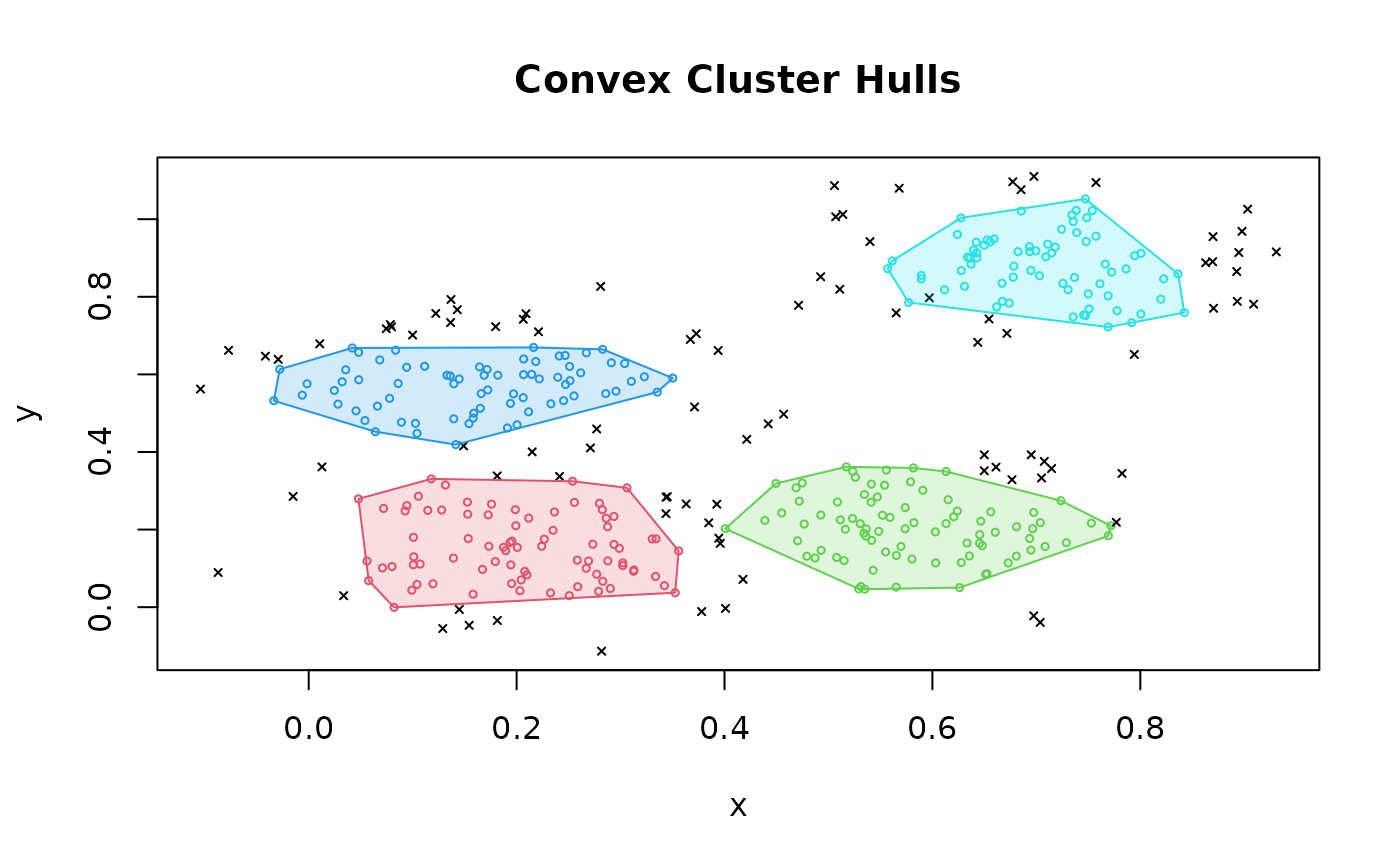

hullplot(x, res, asp = 1)


### re-cut at a higher eps threshold
res <- extractDBSCAN(res, eps_cl = .07)
res
#> OPTICS ordering/clustering for 400 objects.
#> Parameters: minPts = 10, eps = Inf, eps_cl = 0.07, xi = NA
#> The clustering contains 3 cluster(s) and 60 noise points.
#>
#>   0   1   2   3
#>  60 184  80  76
#>
#> Available fields: order, reachdist, coredist, predecessor, minPts, eps,
#>                   eps_cl, xi, cluster

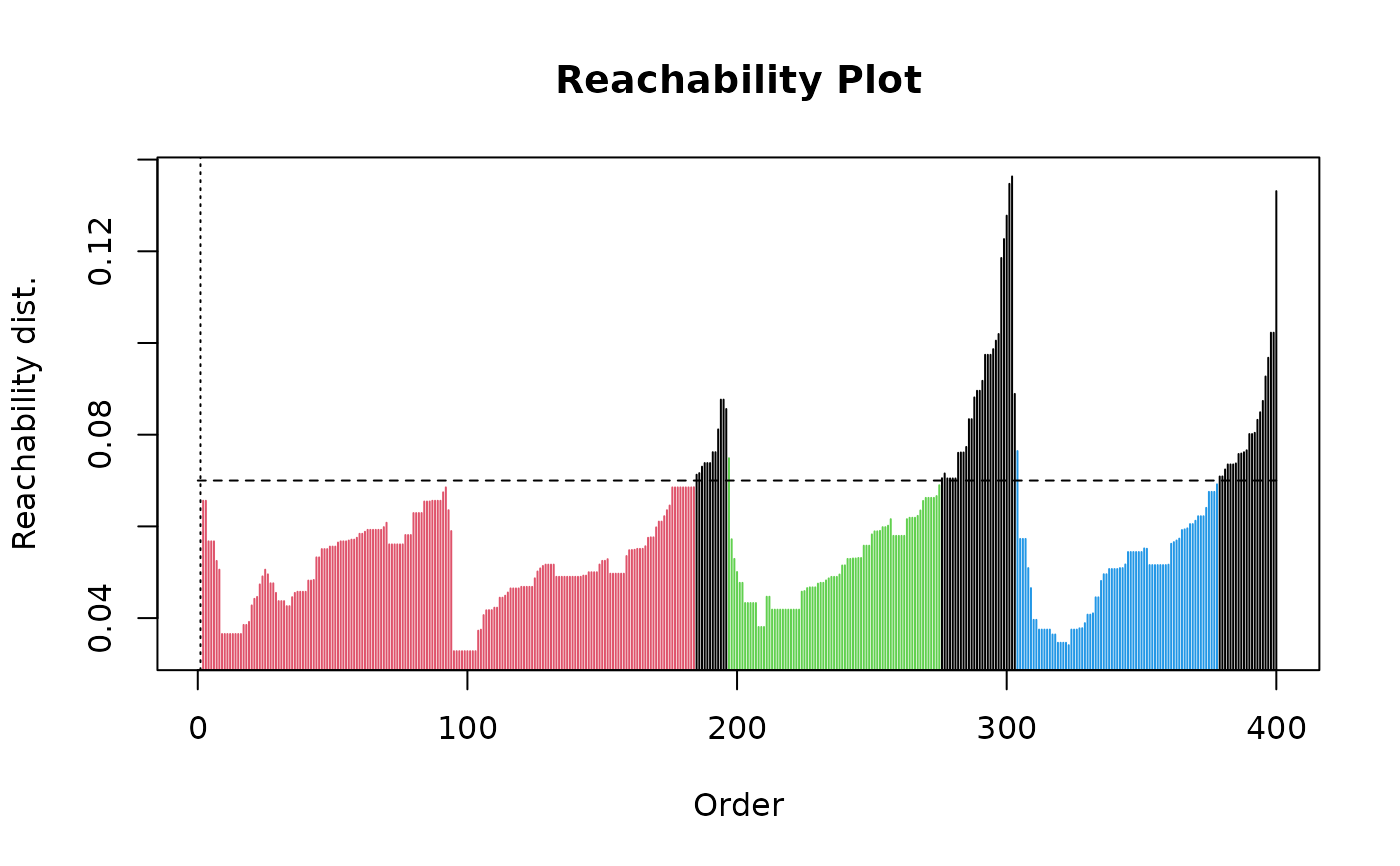

plot(res)

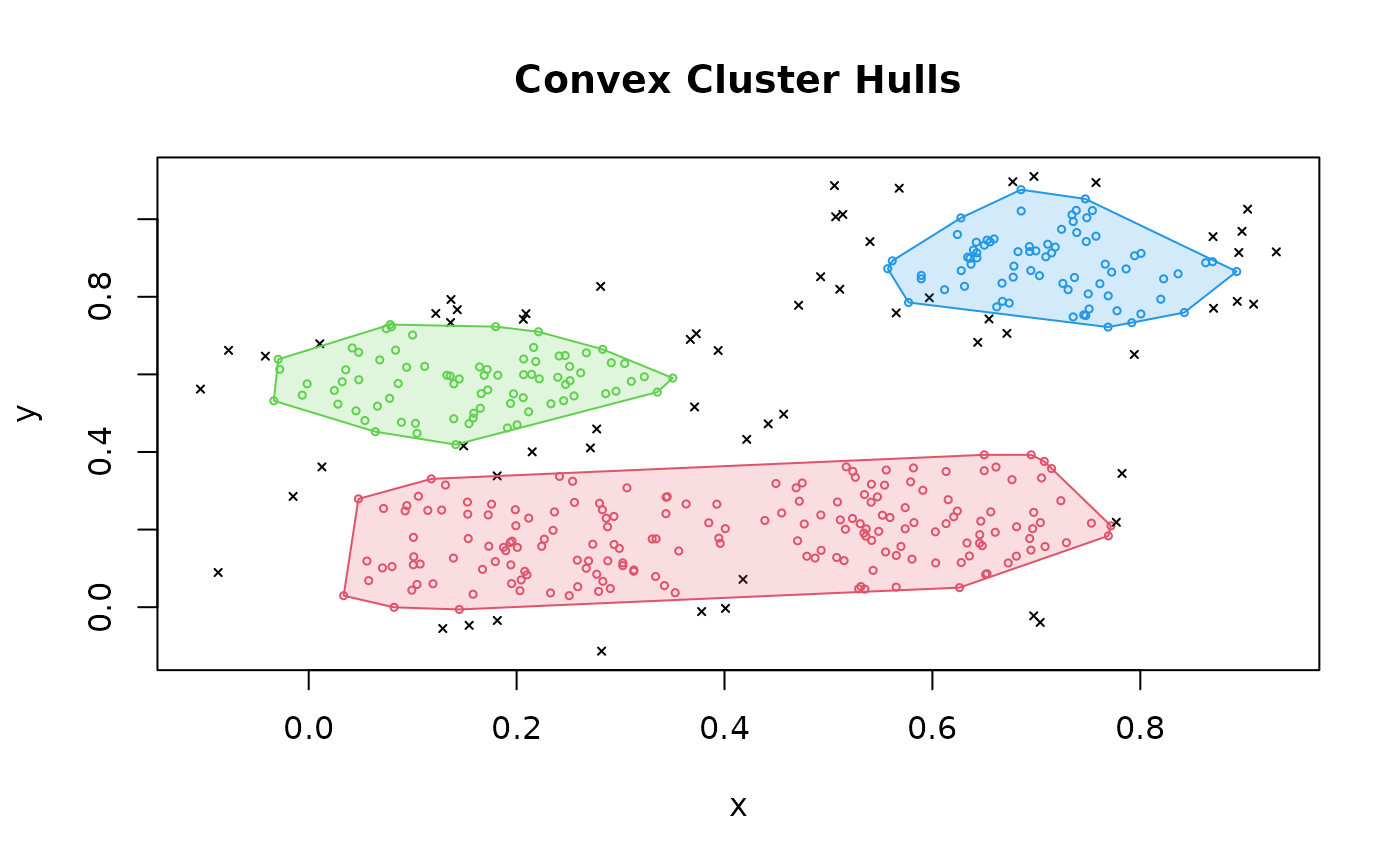

hullplot(x, res, asp = 1)


### extract hierarchical clustering of varying density using the Xi method
res <- extractXi(res, xi = 0.01)
res
#> OPTICS ordering/clustering for 400 objects.
#> Parameters: minPts = 10, eps = Inf, eps_cl = NA, xi = 0.01
#> The clustering contains 18 cluster(s) and 0 noise points.
#>
#> Available fields: order, reachdist, coredist, predecessor, minPts, eps,
#>                   eps_cl, xi, cluster, clusters_xi

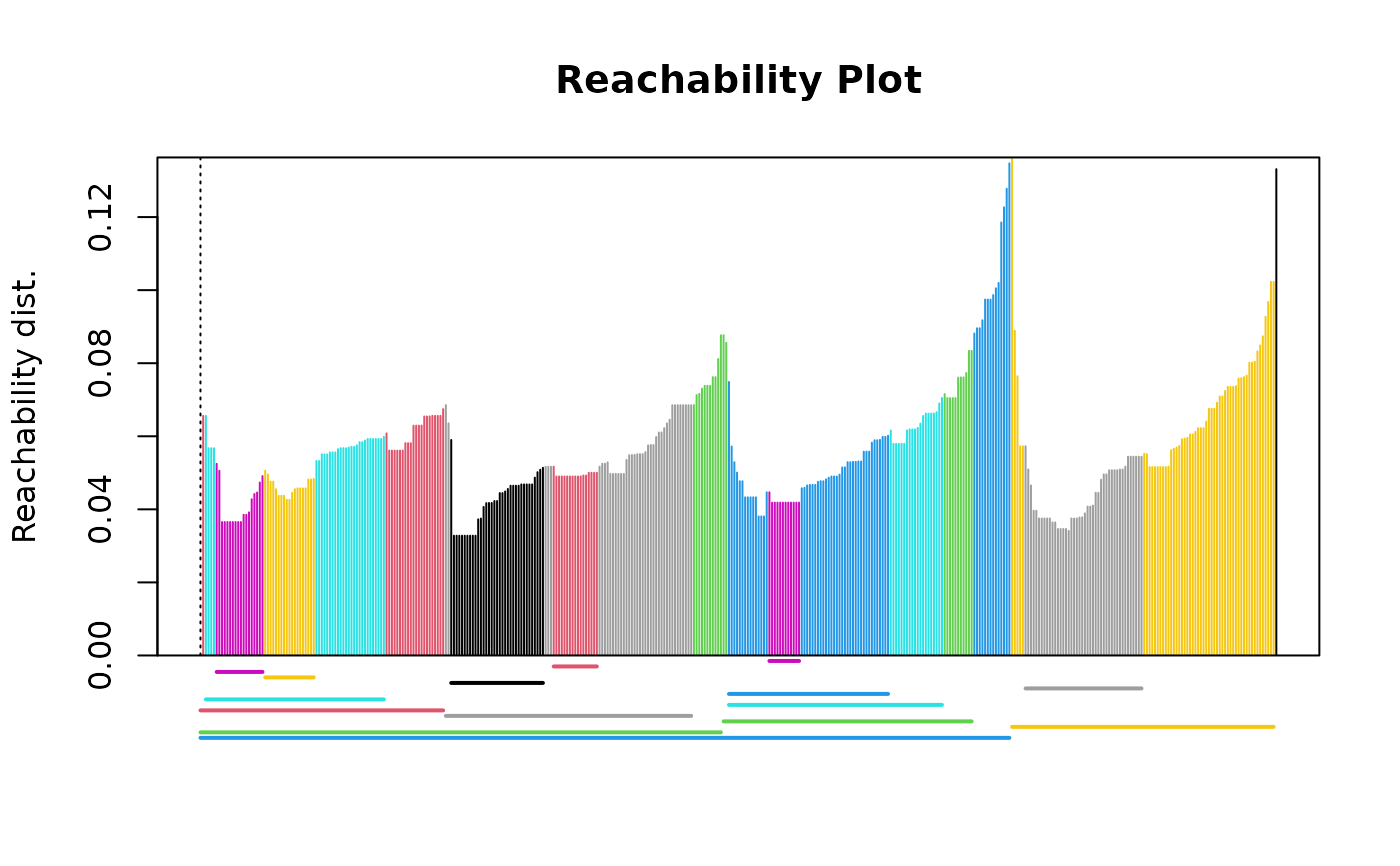

plot(res)

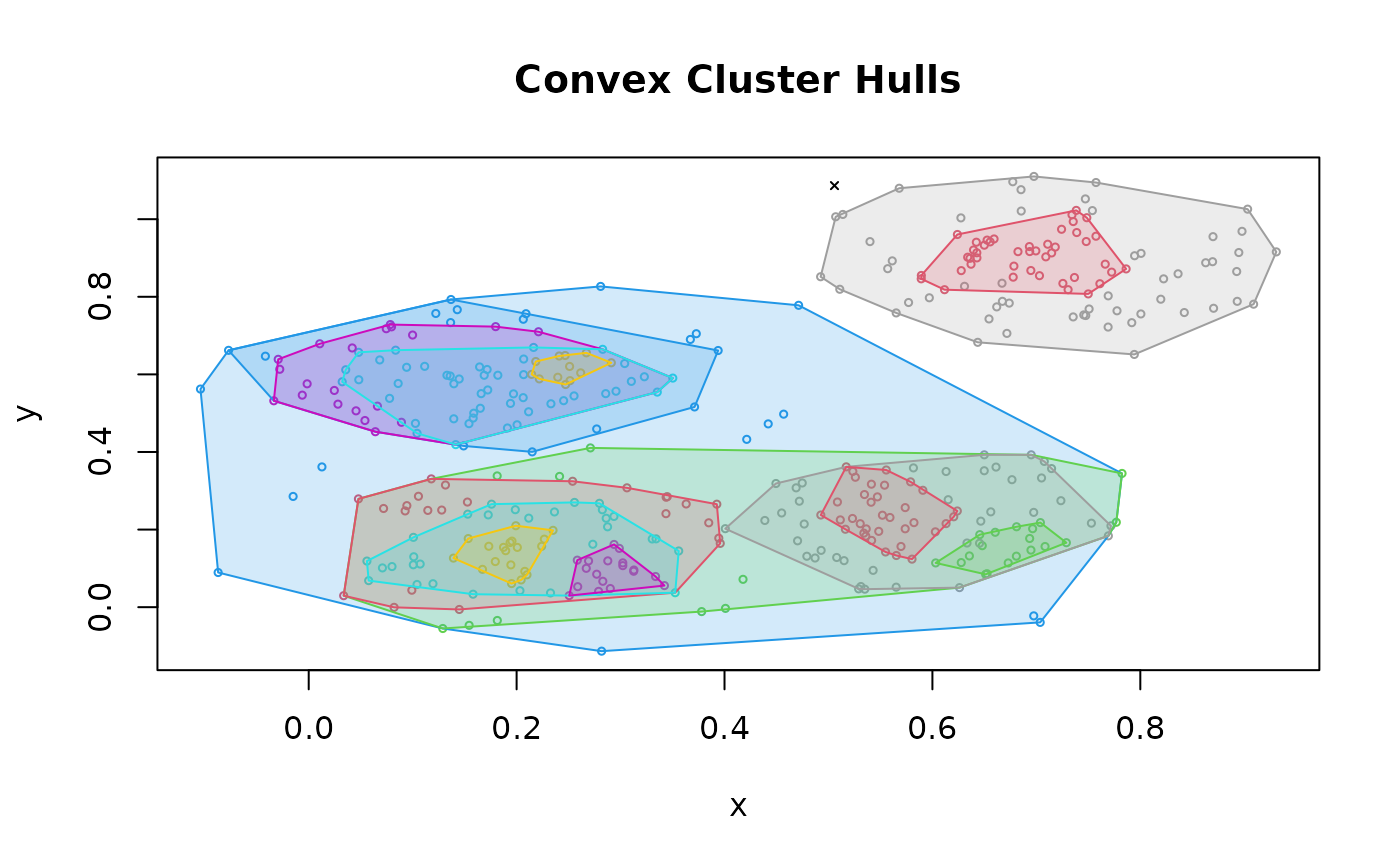

hullplot(x, res, asp = 1)
#> Warning: Not enough colors. Some colors will be reused.


# Xi cluster structure
res$clusters_xi
#>    start end cluster_id
#> 1      1  91          1
#> 2      1 193          2
#> 3      1 301          3
#> 4      1 400          4
#> 5      9  72          5
#> 6     10  28          6
#> 7     29  47          7
#> 8     93 183          8
#> 9     98 130          9
#> 10    98 152         10
#> 11   132 151         11
#> 12   194 288         12
#> 13   195 275         13
#> 14   196 255         14
#> 15   219 231         15
#> 16   302 400         16
#> 17   306 315         17
#> 18   319 359         18

### use OPTICS on a precomputed distance matrix
d <- dist(x)
res <- optics(d, minPts = 10)
plot(res)
