Ordering Points With OPTICS

OPTICS (Ordering Points To Identify the Clustering Structure) is a density-based ordering algorithm. Like DBSCAN, it describes dense regions in terms of an epsilon neighborhood and a minimum number of points. Unlike DBSCAN, its main result is not a single clustering. OPTICS orders observations and records their reachability distances, revealing clustering structure over a range of density levels.

This vignette shows how to create and interpret an OPTICS ordering and how to extract flat or hierarchical clusters from it.

Create an OPTICS ordering

We generate four compact groups for a small reproducible example.

set.seed(2)
n <- 400
x <- cbind(
  x = runif(4, 0, 1) + rnorm(n, sd = 0.1),
  y = runif(4, 0, 1) + rnorm(n, sd = 0.1)
)

plot(x, asp = 1, main = "Example data")

optics() accepts a numeric matrix or data frame. For numeric data it uses Euclidean distance and a fast k-d tree search.

opt <- optics(x, minPts = 10)
opt
#> OPTICS ordering/clustering for 400 objects.
#> Parameters: minPts = 10, eps = Inf, eps_cl = NA, xi = NA
#> Available fields: order, reachdist, coredist, predecessor, minPts, eps,
#>                   eps_cl, xi

The most important result components are:

order: row numbers of the observations in OPTICS order;
reachdist: each observation’s reachability distance; and
coredist: each observation’s core distance.

The distance vectors use the original row order. For example, reachability distances in OPTICS order are obtained with:

head(opt$order, 10)
#>  [1]   1  13  17  21  89 149 165 193 209  57
head(opt$reachdist[opt$order], 10)
#>  [1]        Inf 0.06559013 0.06559013 0.06559013 0.06559013 0.06559013
#>  [7] 0.06559013 0.06559013 0.06559013 0.05673844

The first reachability distance is undefined because the first point has no predecessor. It is stored as Inf.

Read the reachability plot

Plotting an OPTICS object produces a reachability plot. Each vertical bar is one observation, arranged in OPTICS order rather than input order.

plot(opt)

Low-reachability valleys represent dense groups. Peaks separate groups, and deeper valleys represent denser structure. The plot is therefore best read as a density landscape, not as a scatter plot or a sequence in the original data.

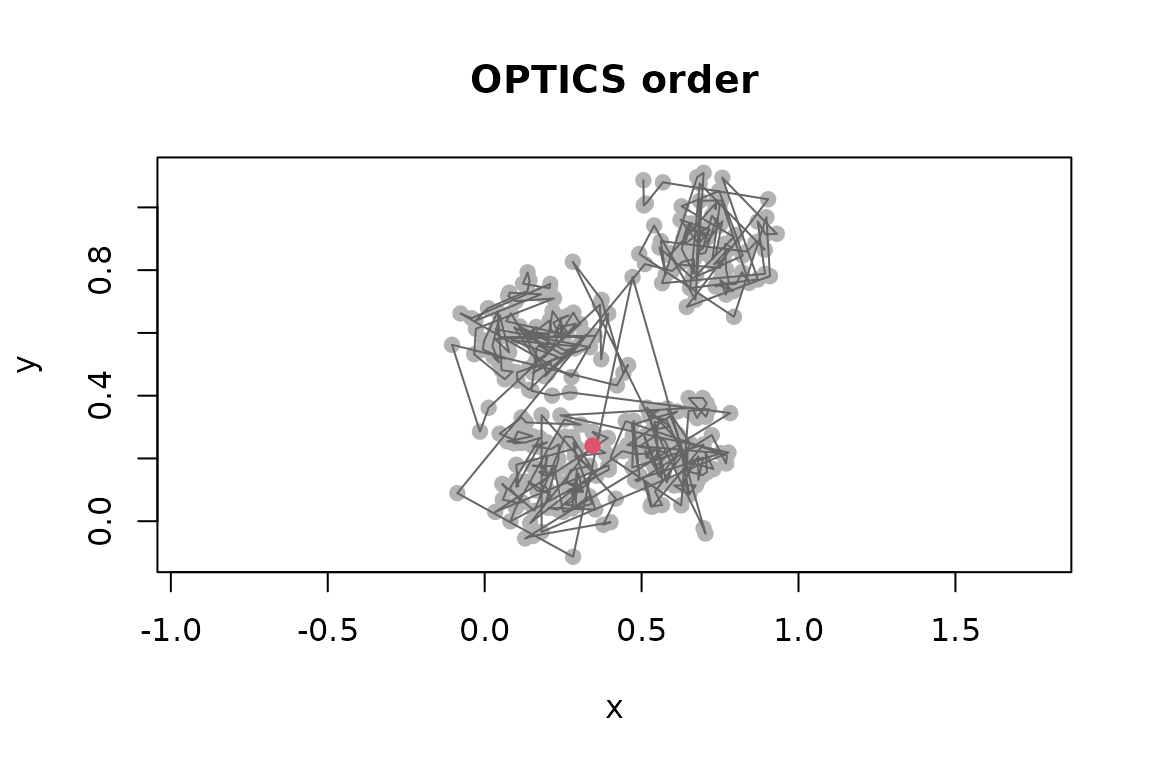

The ordering can also be displayed in the original coordinate space. This is mainly useful for understanding the algorithm; the reachability plot is usually clearer for real data.

plot(x, col = "grey70", pch = 19, asp = 1, main = "OPTICS order")
lines(x[opt$order, ], col = "grey40")
points(x[opt$order[1], , drop = FALSE], pch = 19, col = 2)

Choose `minPts`

minPts controls the scale at which density is evaluated. It includes the point itself, so minPts = 10 uses the distance to the ninth other nearest neighbor for the core-distance calculation. Larger values average over larger neighborhoods and generally produce a smoother reachability plot; smaller values reveal finer structure but are more sensitive to local variation.

Considerations for `eps`

OPTICS does not restrict eps, the maximum neighborhood radius explored by the algorithm. This is implemented by the default eps = Inf and typically should not be changed.

The standard OPTICS algorithm runs an $\epsilon$-range query for every point that it visits, sorts the returned distances to obtain the core distance, and then updates the reachability distances of the unvisited neighbors. With eps = Inf, each query returns all $n$ points, so this costs $O(n^2 \log n)$ time and repeatedly allocates neighbor lists of size $n$.

An unlimited neighborhood makes these queries unnecessary. If there are at least minPts points, every point is a core point, and the reachability distance of an unvisited point $o$ from a visited point $p$ is

\[\mathrm{reach}(p, o) = \max\left(\mathrm{coredist}(p),\, d(p, o)\right).\]

OPTICS always visits next the unvisited point with the smallest reachability distance. This is exactly Prim’s algorithm for a minimum spanning tree with the weights above, starting from the first observation. The order of the observations is the order in which Prim’s algorithm adds them, the reachability distance is the weight of the added edge, and the predecessor is the visited point that provided the smallest weight. As in the general implementation, ties are resolved in favor of the observation with the lower row number.

This implementaion of optics() therefore proceeds in two steps if eps = Inf (the default):

The core distances of all points are computed with a $k$-nearest-neighbor search ($k = \mathtt{minPts} - 1$, using the k-d tree).
Prim’s algorithm scans the unvisited points once for every visited point and calculates the needed distances on the fly. A distance matrix is never created, so only $O(n)$ memory is needed in addition to the data. For data given as a dist object, the existing distances are used.

The running time is still quadratic in $n$, but without the sorting and neighbor lists.

For large data sets, manually supplying a smaller upper bound can reduce computation, but may lead to missing reachability distances and warnings. Multiple dashed bars in the reachability plot indicate undefined distances and usually mean that eps is too small. The first dashed bar is expected.

Extract a DBSCAN-like clustering

extractDBSCAN() cuts the reachability plot at a global threshold eps_cl. This does not rerun OPTICS, so several thresholds can be explored using the same ordering. The extraction closely resembles DBSCAN with the same minPts and epsilon, although OPTICS can leave some DBSCAN border points unassigned.

opt_db <- extractDBSCAN(opt, eps_cl = 0.065)
opt_db
#> OPTICS ordering/clustering for 400 objects.
#> Parameters: minPts = 10, eps = Inf, eps_cl = 0.065, xi = NA
#> The clustering contains 4 cluster(s) and 95 noise points.
#>
#>  0  1  2  3  4
#> 95 78 83 73 71
#>
#> Available fields: order, reachdist, coredist, predecessor, minPts, eps,
#>                   eps_cl, xi, cluster

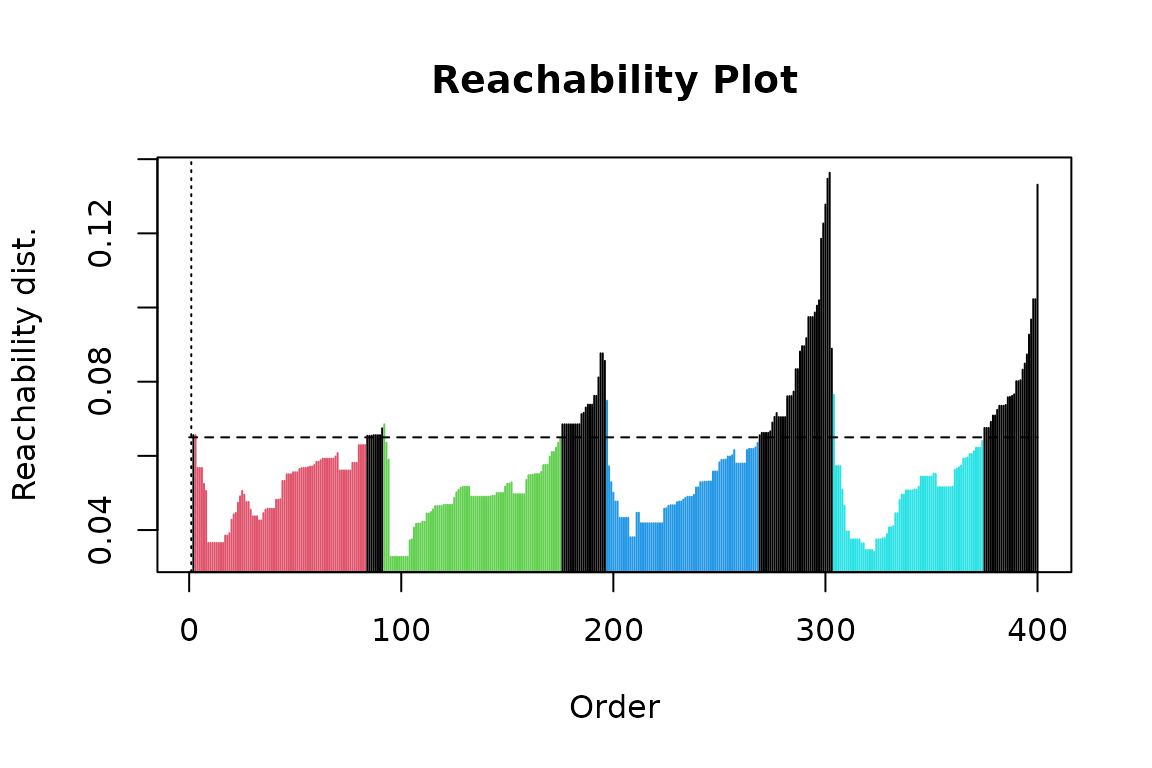

plot(opt_db)

The dashed horizontal line is the extraction threshold. Bars are colored by cluster; cluster 0 is noise and appears black with the default palette. Cluster assignments are stored in original data order.

table(opt_db$cluster)
#>
#>  0  1  2  3  4
#> 95 78 83 73 71

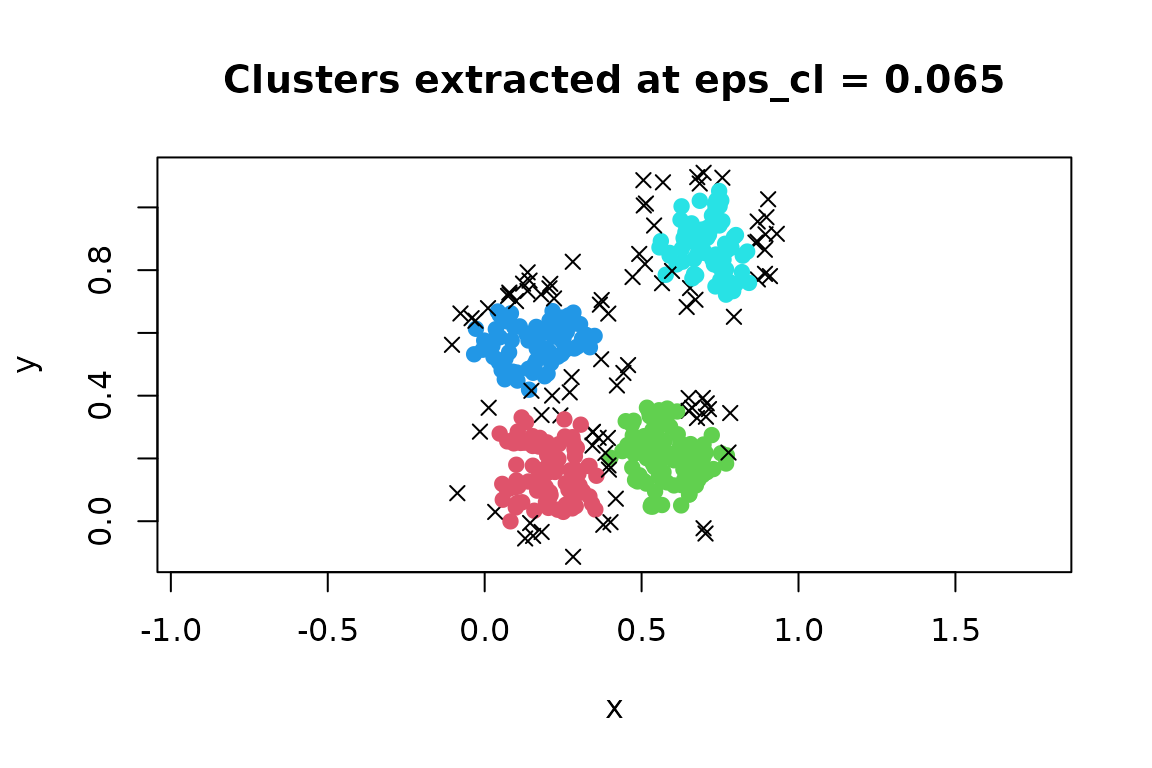

hullplot(
  x,
  opt_db,
  asp = 1,
  main = "Clusters extracted at eps_cl = 0.065"
)

Changing the cut illustrates structure at a different density level:

opt_db_wide <- extractDBSCAN(opt, eps_cl = 0.07)
c(
  clusters = max(opt_db_wide$cluster),
  noise = sum(opt_db_wide$cluster == 0)
)
#> clusters    noise
#>        3       60

Choose eps_cl <= opt$eps. A useful threshold crosses stable valleys below the peaks that separate them. If a single global cut cannot represent groups of differing density, use the Xi extraction described next.

Extract clusters with the Xi method

extractXi() identifies relative steep-down and steep-up regions in the reachability plot. The xi value is the minimum relative change in reachability used to recognize a boundary. This can find nested clusters and clusters at different density levels without selecting one global distance threshold.

opt_xi <- extractXi(opt, xi = 0.05)
opt_xi
#> OPTICS ordering/clustering for 400 objects.
#> Parameters: minPts = 10, eps = Inf, eps_cl = NA, xi = 0.05
#> The clustering contains 15 cluster(s) and 0 noise points.
#>
#> Available fields: order, reachdist, coredist, predecessor, minPts, eps,
#>                   eps_cl, xi, clusters_xi, cluster
opt_xi$clusters_xi
#>    start end cluster_id
#> 1      1 193          1
#> 2      1 300          2
#> 3      1 400          3
#> 4     10  49          4
#> 5     12  23          5
#> 6     31  47          6
#> 7     93 175          7
#> 8     99 109          8
#> 9    195 288          9
#> 10   196 247         10
#> 11   219 231         11
#> 12   302 400         12
#> 13   304 375         13
#> 14   305 315         14
#> 15   319 346         15

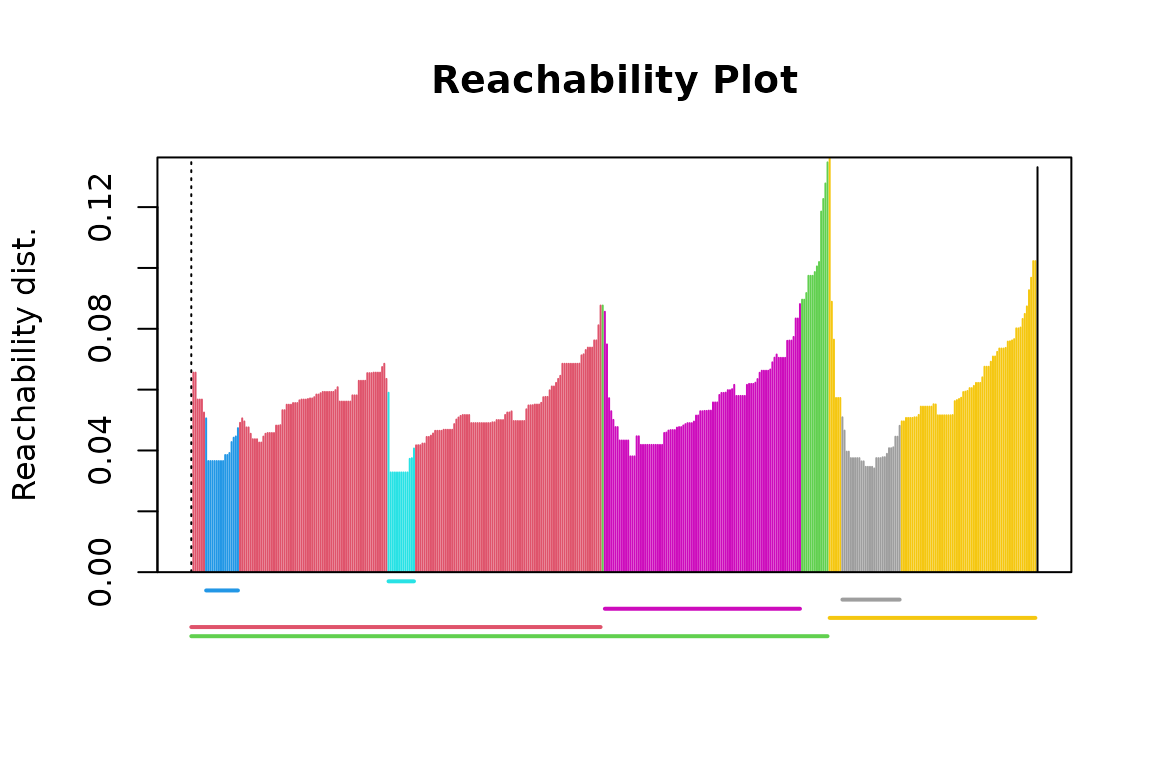

plot(opt_xi)

Each row of clusters_xi gives the start and end positions of a cluster in OPTICS order. These intervals can be nested. The colored line segments below the reachability plot show the intervals, while cluster contains a convenient non-nested labeling in original data order for plotting.

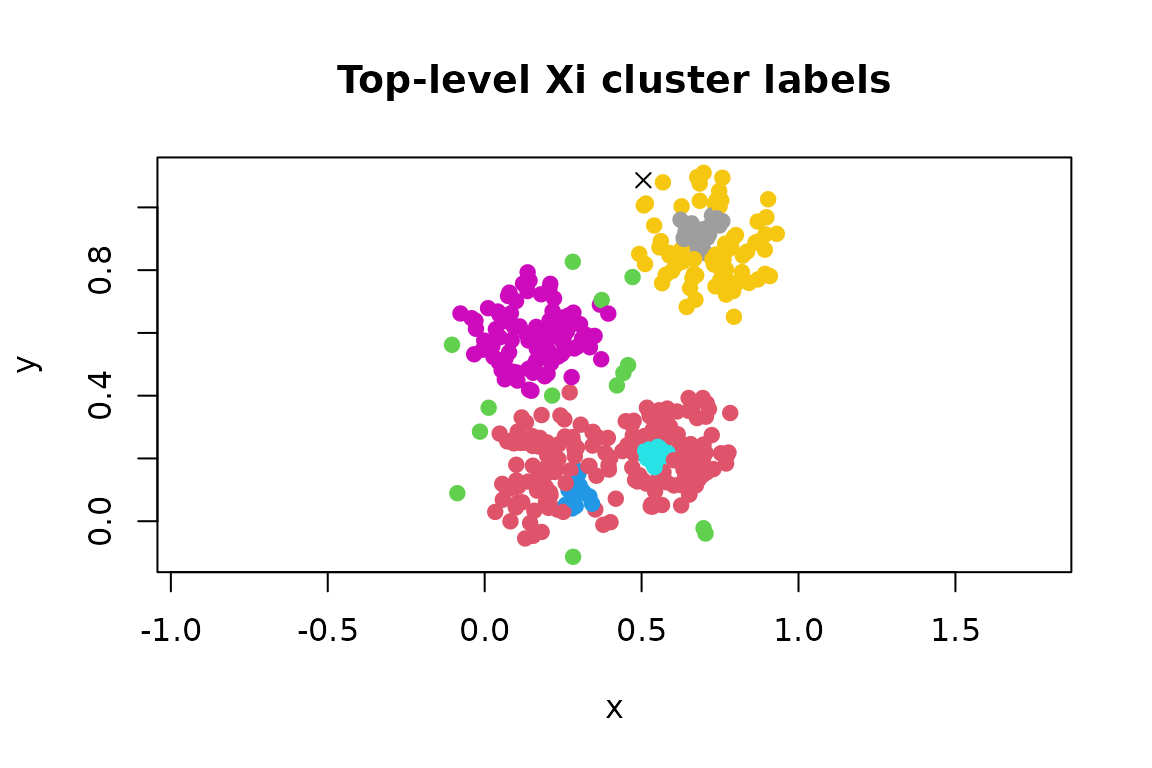

hullplot(x, opt_xi, asp = 1, main = "Optics Xi Clusters")
#> Warning in hullplot(x, opt_xi, asp = 1, main = "Optics Xi Clusters"): Not
#> enough colors. Some colors will be reused.

Set minimum = TRUE to retain minimal clusters that do not contain other Xi clusters. This is useful when a non-overlapping, fine-grained solution is needed.

opt_xi_min <- extractXi(opt, xi = 0.05, minimum = TRUE)
opt_xi_min
#> OPTICS ordering/clustering for 400 objects.
#> Parameters: minPts = 10, eps = Inf, eps_cl = NA, xi = 0.05
#> The clustering contains 6 cluster(s) and 308 noise points.
#>
#> Available fields: order, reachdist, coredist, predecessor, minPts, eps,
#>                   eps_cl, xi, clusters_xi, cluster
plot(opt_xi_min)


hullplot(x, opt_xi_min, asp = 1, main = "Optics Xi (minimal clusters)")
#> Warning in hullplot(x, opt_xi_min, asp = 1, main = "Optics Xi (minimal
#> clusters)"): Not enough colors. Some colors will be reused.

The predecessor correction is enabled by default and removes a known artifact of the original Xi extraction procedure. It should normally remain enabled.

Convert the ordering to a dendrogram

An OPTICS reachability structure can be represented as a dendrogram. This is often convenient for smaller data sets or for code that works with standard R dendrogram objects.

dend <- as.dendrogram(opt)
plot(dend, leaflab = "none", ylab = "Reachability distance")

Conversion requires a complete reachability structure. If OPTICS was run with an eps that is too small, rerun it with a larger value or the default before converting.

Predict labels for new observations

Prediction is available only after extractDBSCAN(), because prediction needs a flat clustering and its global eps_cl threshold. Supply the original training data along with the new observations.

new_points <- rbind(
  c(0.2, 0.3),
  c(0.8, 0.8),
  c(2.0, 2.0)
)

predict(opt_db, newdata = new_points, data = x)
#> [1] 1 4 0

A new observation receives the label of its nearest non-noise training point within eps_cl; otherwise it is labeled 0. Apply the same transformations used for the training data to new observations.

Use another distance measure

To use a distance other than Euclidean distance, calculate a dist object and pass it to optics(). This uses the supplied pairwise distances rather than the k-d tree search.

d <- dist(x, method = "manhattan")
opt_manhattan <- optics(d, minPts = 10)
plot(opt_manhattan)

Prediction from a precomputed-distance analysis is not generally available, because distances from new observations to the training data are not stored in the dist object.

References

Ankerst, M., Breunig, M. M., Kriegel, H.-P., and Sander, J. (1999). OPTICS: Ordering Points To Identify the Clustering Structure. Proceedings of the 1999 ACM SIGMOD International Conference on Management of Data, 49–60. doi:10.1145/304181.304187.

Schubert, E. and Gertz, M. (2018). Improving the Cluster Structure Extracted from OPTICS Plots. Lernen, Wissen, Daten, Analysen (LWDA 2018), 318–329.

Hahsler, M., Piekenbrock, M., and Doran, D. (2019). dbscan: Fast Density-Based Clustering with R. Journal of Statistical Software, 91(1), 1–30. doi:10.18637/jss.v091.i01.
