Find Connected Components in a Nearest-neighbor Graph

Generic function and methods to find connected components in nearest neighbor graphs.

Usage

comps(x, ...)

# S3 method for class 'dist'
comps(x, eps, ...)

# S3 method for class 'kNN'
comps(x, mutual = FALSE, ...)

# S3 method for class 'sNN'
comps(x, ...)

# S3 method for class 'frNN'
comps(x, ...)

Arguments

x

the NN object representing the graph or a dist object

...

further arguments are currently unused.

eps

threshold on the distance

mutual

for a pair of points, do both have to be in each other's neighborhood?

Value

an integer vector with component assignments.

Details

Note that for kNN graphs, one point may be in the kNN of the other but nor vice versa. mutual = TRUE requires that both points are in each other's kNN.

See also

Other NN functions: NN, frNN(), kNN(), kNNdist(), sNN()

Author

Michael Hahsler

Examples

set.seed(665544)
n <- 100
x <- cbind(
  x=runif(10, 0, 5) + rnorm(n, sd = 0.4),
  y=runif(10, 0, 5) + rnorm(n, sd = 0.4)
  )

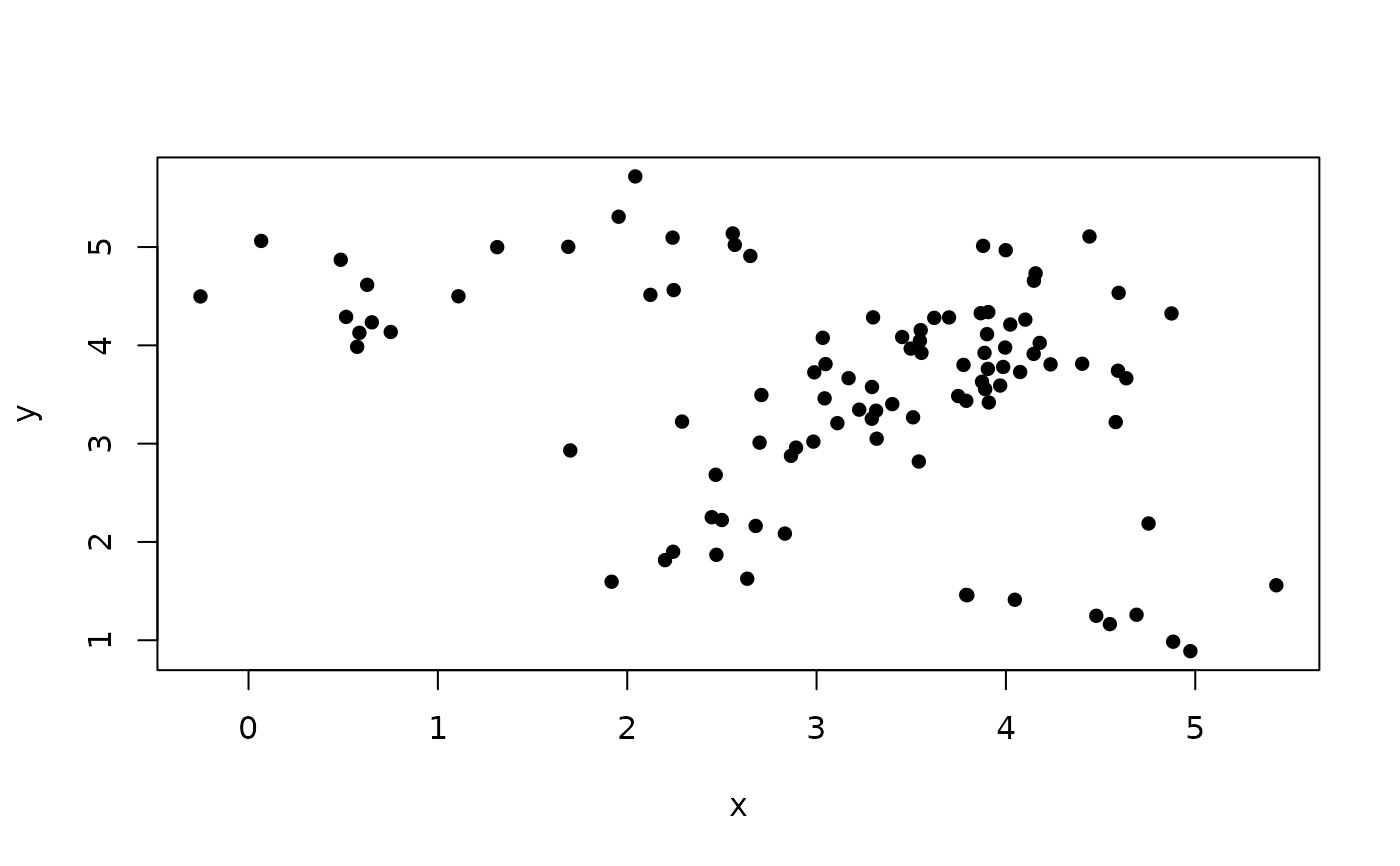

plot(x, pch = 16)

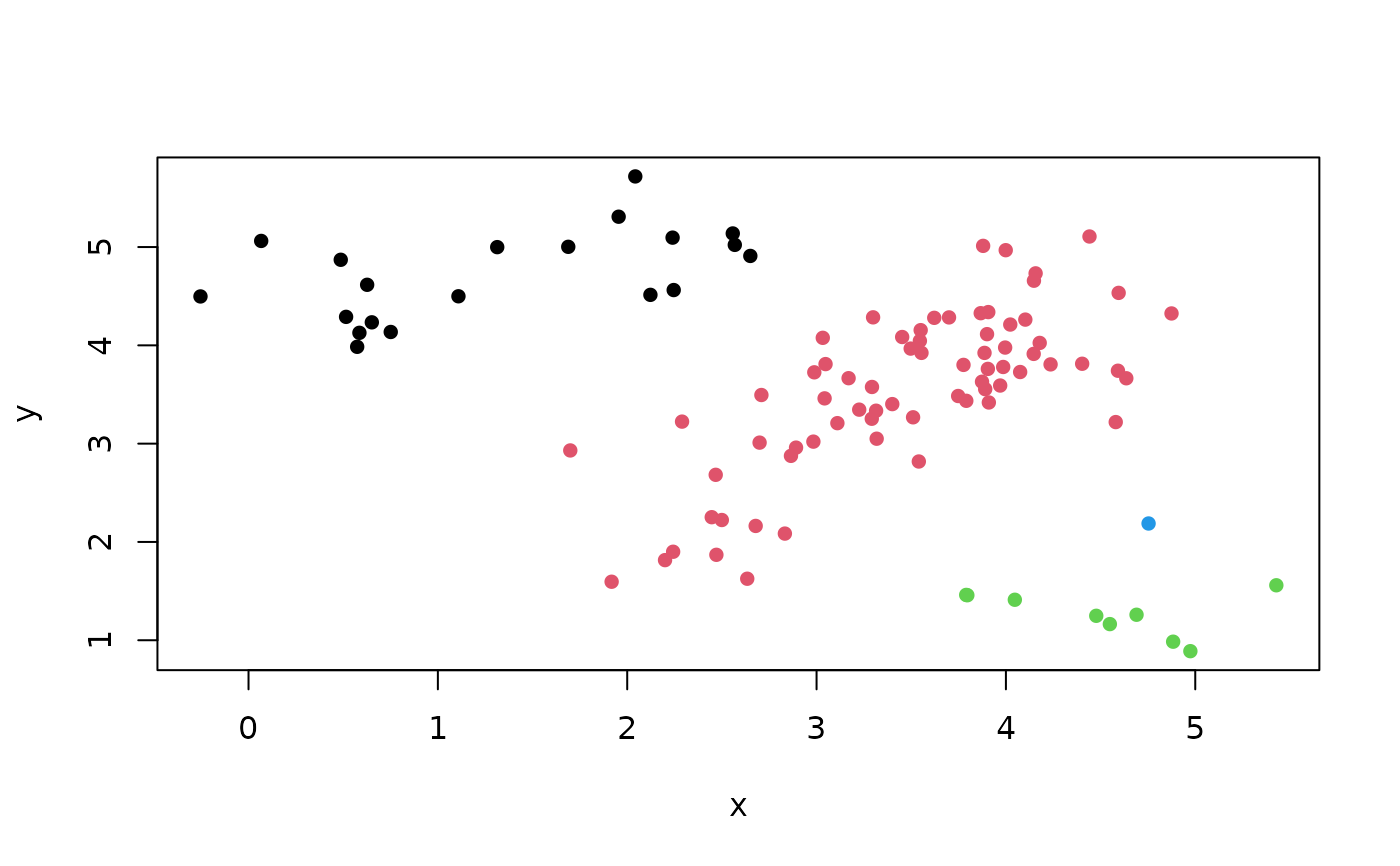

# Connected components on a graph where each pair of points
# with a distance less or equal to eps are connected
d <- dist(x)
components <- comps(d, eps = .8)
plot(x, col = components, pch = 16)

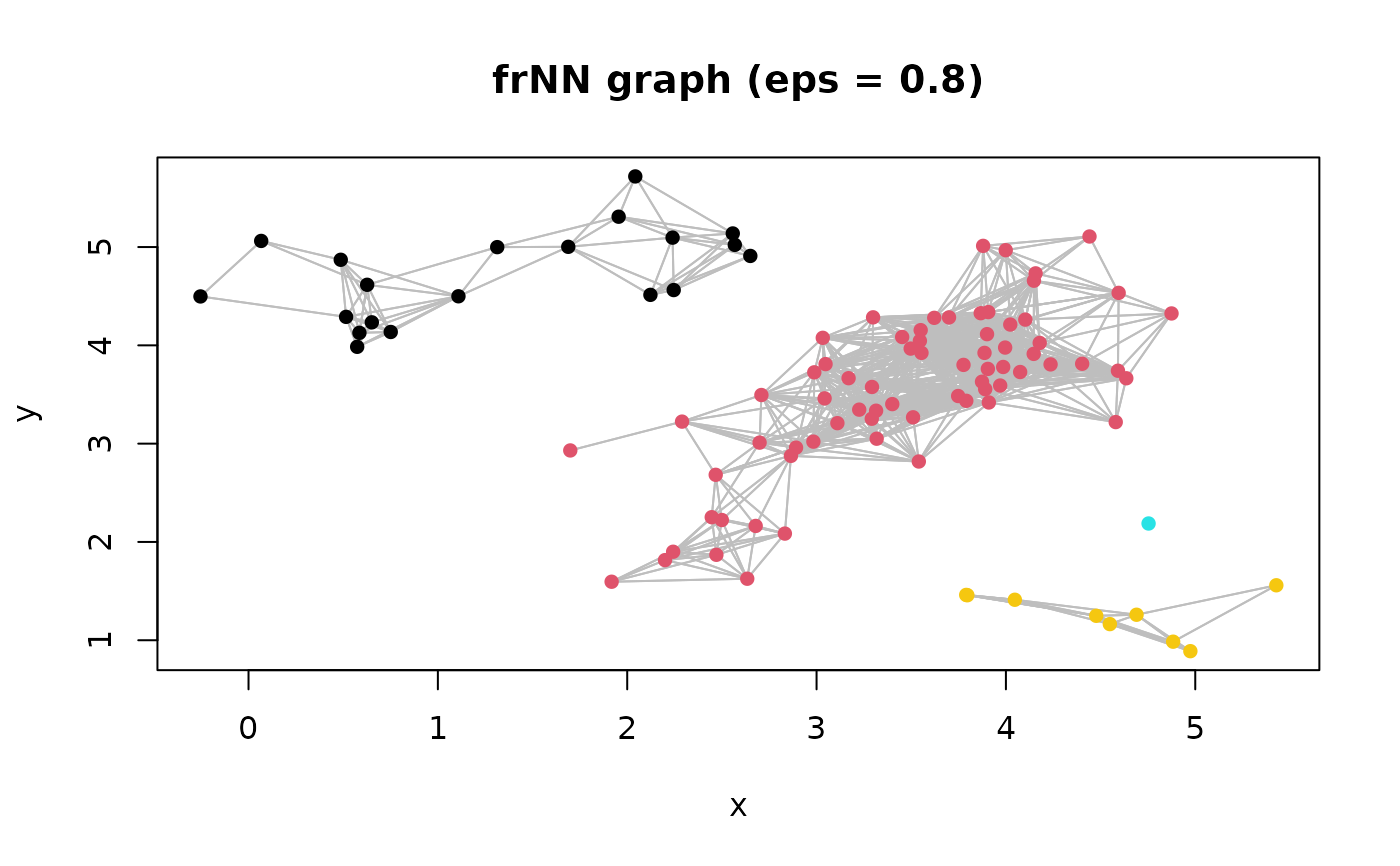

# Connected components in a fixed radius nearest neighbor graph
# Gives the same result as the threshold on the distances above
frnn <- frNN(x, eps = .8)
components <- comps(frnn)
plot(frnn, data = x, col = components)

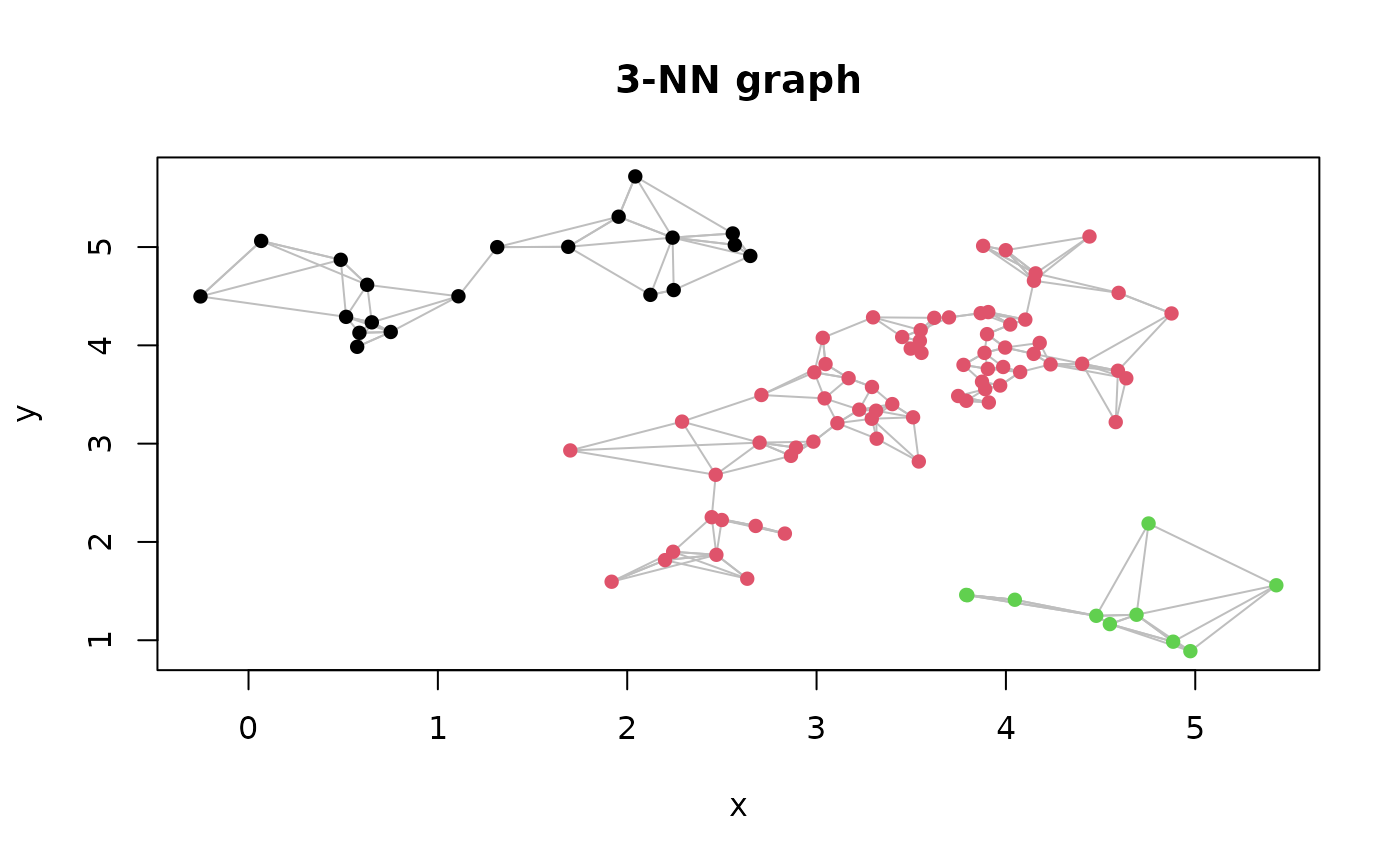

# Connected components on a k nearest neighbors graph
knn <- kNN(x, 3)
components <- comps(knn, mutual = FALSE)
plot(knn, data = x, col = components)

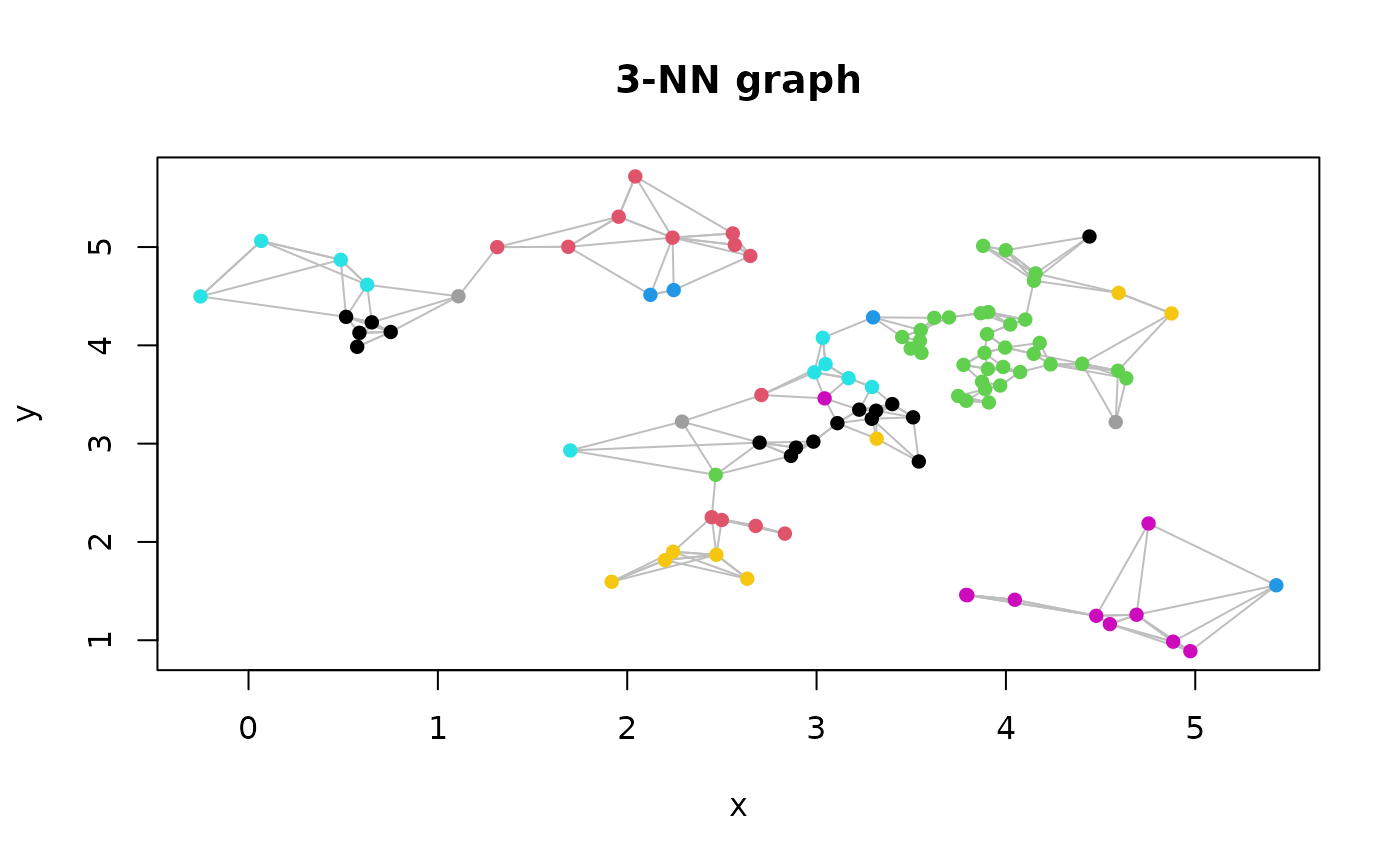

components <- comps(knn, mutual = TRUE)
plot(knn, data = x, col = components)

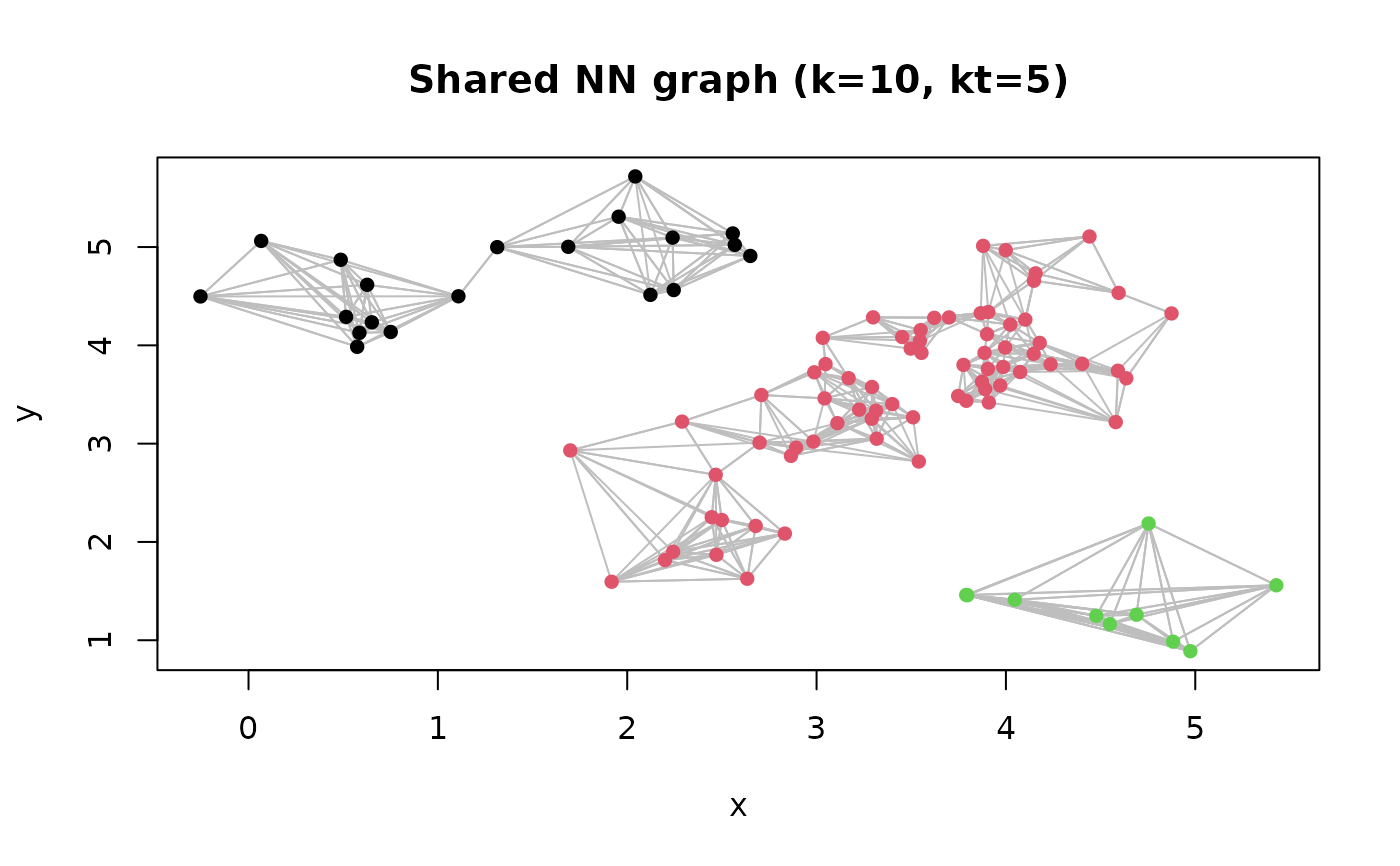

# Connected components in a shared nearest neighbor graph
snn <- sNN(x, k = 10, kt = 5)
components <- comps(snn)
plot(snn, data = x, col = components)
