Helper Functions for Gridworld MDPs

Helper functions for gridworld MDPs to convert between state names and gridworld positions, and for visualizing policies.

Usage

gridworld_init(
  dim,
  action_labels = c("up", "right", "down", "left"),
  unreachable_states = NULL,
  absorbing_states = NULL,
  labels = NULL
)

gridworld_maze_MDP(
  dim,
  start,
  goal,
  walls = NULL,
  action_labels = c("up", "right", "down", "left"),
  goal_reward = 1,
  step_cost = 0,
  restart = FALSE,
  discount = 0.9,
  horizon = Inf,
  info = NULL,
  name = NA
)

gridworld_s2rc(s)

gridworld_rc2s(rc)

gridworld_matrix(model, epoch = 1L, what = "states")

gridworld_plot_policy(
  model,
  epoch = 1L,
  actions = "character",
  states = FALSE,
  labels = TRUE,
  absorbing_state_action = FALSE,
  main = NULL,
  cex = 1,
  offset = 0.5,
  lines = TRUE,
  ...
)

gridworld_plot_transition_graph(
  x,
  hide_unreachable_states = TRUE,
  remove.loops = TRUE,
  vertex.color = "gray",
  vertex.shape = "square",
  vertex.size = 10,
  vertex.label = NA,
  edge.arrow.size = 0.3,
  margin = 0.2,
  main = NULL,
  ...
)

gridworld_animate(x, method, n, zlim = NULL, ...)

Arguments

dim: vector of length two with the x and y extent of the gridworld.
action_labels: vector with four action labels that move the agent up, right, down, and left.
unreachable_states: a vector with state labels for unreachable states. These states will be excluded.
absorbing_states: a vector with state labels for absorbing states.
labels: logical; show state labels.
start, goal: labels for the start state and the goal state.
walls: a vector with state labels for walls. Walls will become unreachable states.
goal_reward: reward to transition to the goal state.
step_cost: cost of each action that does not lead to the goal state.
restart: logical; if TRUE then the problem automatically restarts when the agent reaches the goal state.
discount, horizon: MDP discount factor, and horizon.
info: A list with additional information. Has to contain the gridworld dimensions as element gridworld_dim.
name: a string to identify the MDP problem.
s: a state label.
rc: a vector of length two with the row and column coordinate of a state in the gridworld matrix.
model, x: a solved gridworld MDP.
epoch: epoch for unconverged finite-horizon solutions.
what: What should be returned in the matrix. Options are: "states", "labels", "values", "actions", "absorbing", and "reachable".
actions: how to show actions. Options are: simple "character", "unicode" arrows (needs to be supported by the used font), "label" of the action, and "none" to suppress showing the action.
states: logical; show state names.
absorbing_state_action: logical; show the value and the action for absorbing states.
main: a main title for the plot. Defaults to the name of the problem.
cex: expansion factor for the action.
offset: move the state labels out of the way (in fractions of a character width).
lines: logical; draw lines to separate states.
...: further arguments are passed on to igraph::plot.igraph().
hide_unreachable_states: logical; do not show unreachable states.
remove.loops: logical; do not show transitions from a state back to itself.
vertex.color, vertex.shape, vertex.size, vertex.label, edge.arrow.size: see igraph::igraph.plotting for details. Set vertex.label = NULL to show the state labels on the graph.
margin: a single number specifying the margin of the plot. Can be used if the graph does not fit inside the plotting area.
method: an MDP solution method for solve_MDP().
n: number of iterations to animate.
zlim: limits for visualizing the state value.

Details

Gridworlds are implemented with state names s(row,col), where row and col are locations in the matrix representing the gridworld. The actions are "up", "right", "down", and "left".

gridworld_init() initializes a new gridworld creating a matrix of states with the given dimensions. Other action names can be specified, but they must have the same effects in the same order as above. Unreachable states (walls) and absorbing states can be defined. This information can be used to build a custom gridworld MDP.

Several helper functions are provided to use states, look at the state layout, and plot policies on the gridworld.

gridworld_maze_MDP() helps to easily define maze-like gridworld MDPs. By default, the goal state is absorbing, but with restart = TRUE, the agent restarts the problem at the start state every time it reaches the goal and receives the reward. Note that this implies that the goal state itself becomes unreachable.

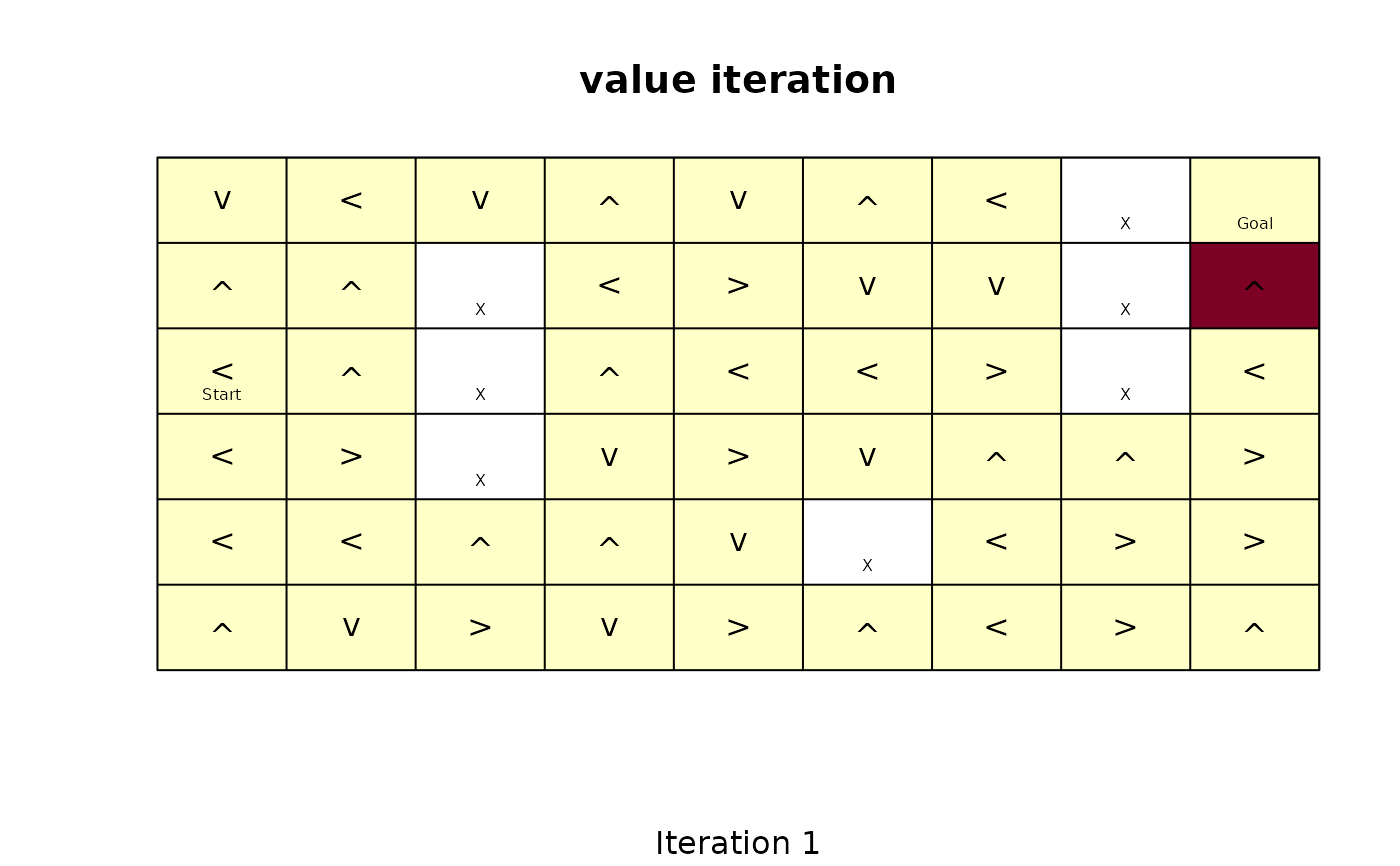

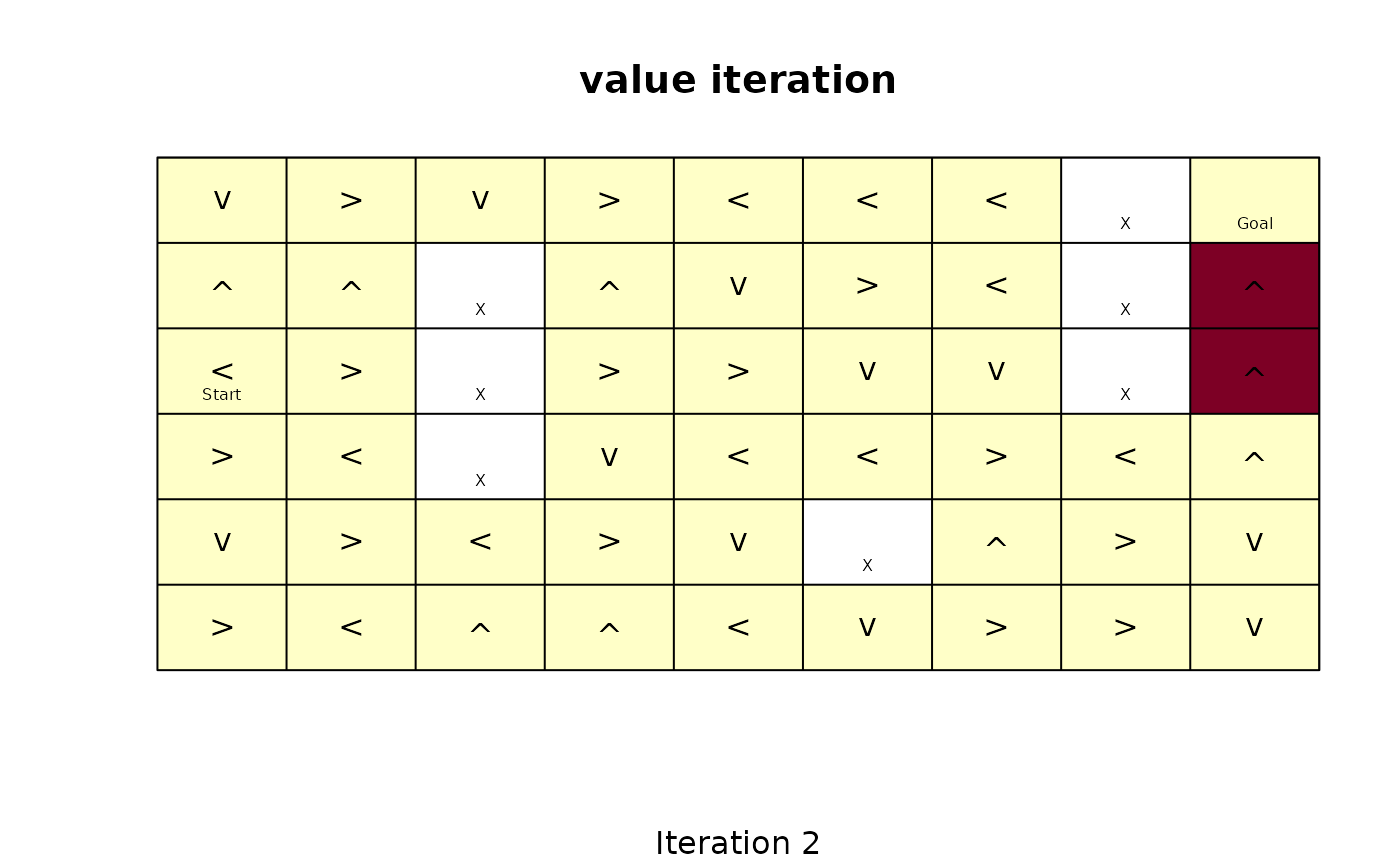

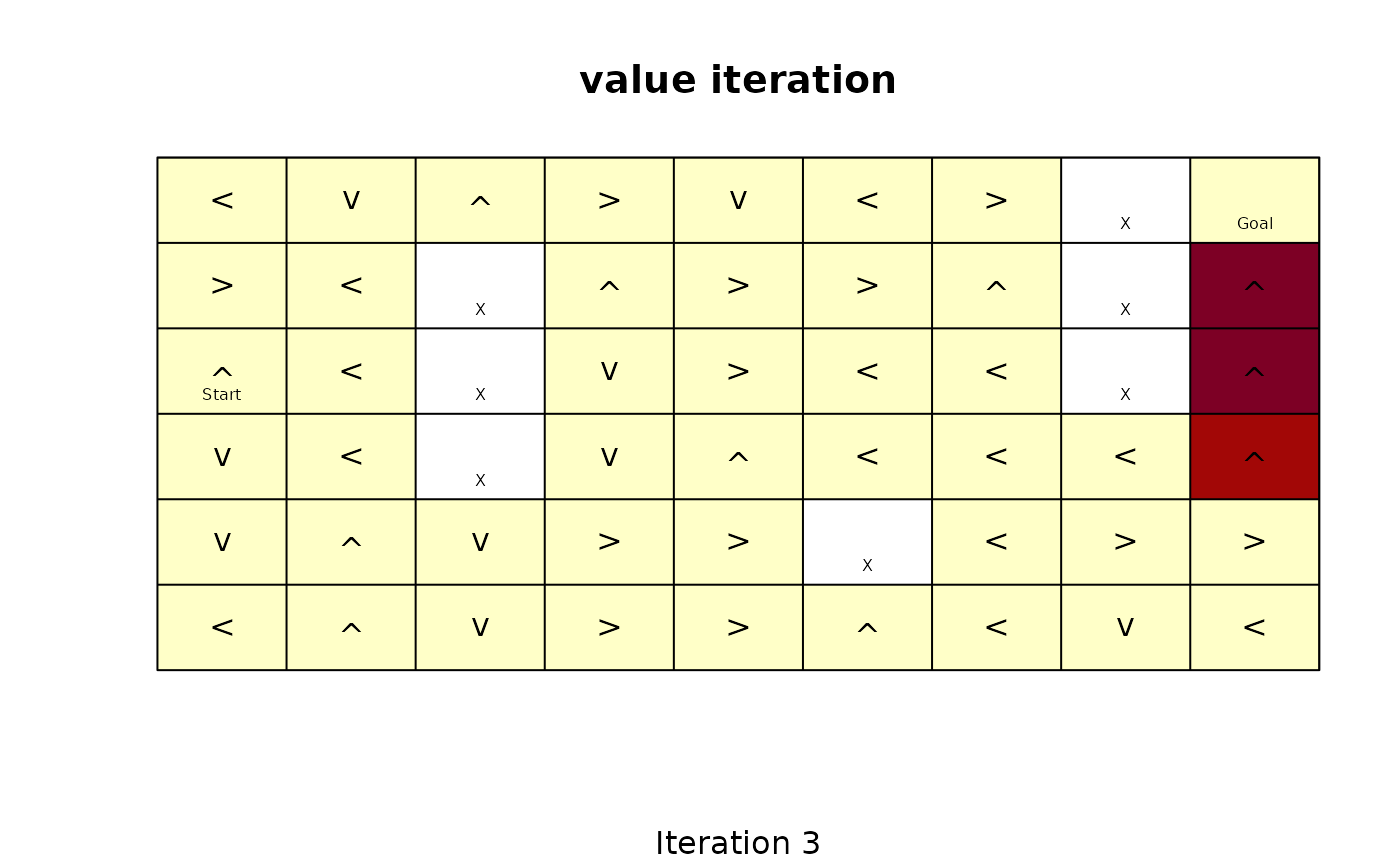

gridworld_animate() applies algorithms from solve_MDP() iteration by iteration and visualized the state utilities. This helps to understand how the algorithms work.

Examples

# Defines states, actions and a transition model for a standard gridworld
gw <- gridworld_init(dim = c(7,7),
                unreachable_states = c("s(2,2)", "s(7,3)", "s(3,6)"),
                absorbing_states = "s(4,4)",
                labels = list("s(4,4)" = "Black Hole")
                )

gw$states
#>  [1] "s(1,1)" "s(2,1)" "s(3,1)" "s(4,1)" "s(5,1)" "s(6,1)" "s(7,1)" "s(1,2)"
#>  [9] "s(3,2)" "s(4,2)" "s(5,2)" "s(6,2)" "s(7,2)" "s(1,3)" "s(2,3)" "s(3,3)"
#> [17] "s(4,3)" "s(5,3)" "s(6,3)" "s(1,4)" "s(2,4)" "s(3,4)" "s(4,4)" "s(5,4)"
#> [25] "s(6,4)" "s(7,4)" "s(1,5)" "s(2,5)" "s(3,5)" "s(4,5)" "s(5,5)" "s(6,5)"
#> [33] "s(7,5)" "s(1,6)" "s(2,6)" "s(4,6)" "s(5,6)" "s(6,6)" "s(7,6)" "s(1,7)"
#> [41] "s(2,7)" "s(3,7)" "s(4,7)" "s(5,7)" "s(6,7)" "s(7,7)"
gw$actions
#> [1] "up"    "right" "down"  "left"
gw$info
#> $gridworld_dim
#> [1] 7 7
#>
#> $gridworld_labels
#> $gridworld_labels$`s(4,4)`
#> [1] "Black Hole"
#>
#>

# display the state labels in the gridworld
gridworld_matrix(gw)
#>      [,1]     [,2]     [,3]     [,4]     [,5]     [,6]     [,7]
#> [1,] "s(1,1)" "s(1,2)" "s(1,3)" "s(1,4)" "s(1,5)" "s(1,6)" "s(1,7)"
#> [2,] "s(2,1)" NA       "s(2,3)" "s(2,4)" "s(2,5)" "s(2,6)" "s(2,7)"
#> [3,] "s(3,1)" "s(3,2)" "s(3,3)" "s(3,4)" "s(3,5)" NA       "s(3,7)"
#> [4,] "s(4,1)" "s(4,2)" "s(4,3)" "s(4,4)" "s(4,5)" "s(4,6)" "s(4,7)"
#> [5,] "s(5,1)" "s(5,2)" "s(5,3)" "s(5,4)" "s(5,5)" "s(5,6)" "s(5,7)"
#> [6,] "s(6,1)" "s(6,2)" "s(6,3)" "s(6,4)" "s(6,5)" "s(6,6)" "s(6,7)"
#> [7,] "s(7,1)" "s(7,2)" NA       "s(7,4)" "s(7,5)" "s(7,6)" "s(7,7)"
gridworld_matrix(gw, what = "label")
#>      [,1] [,2] [,3] [,4]         [,5] [,6] [,7]
#> [1,] ""   ""   ""   ""           ""   ""   ""
#> [2,] ""   "X"  ""   ""           ""   ""   ""
#> [3,] ""   ""   ""   ""           ""   "X"  ""
#> [4,] ""   ""   ""   "Black Hole" ""   ""   ""
#> [5,] ""   ""   ""   ""           ""   ""   ""
#> [6,] ""   ""   ""   ""           ""   ""   ""
#> [7,] ""   ""   "X"  ""           ""   ""   ""
gridworld_matrix(gw, what = "reachable")
#>      [,1]  [,2]  [,3] [,4] [,5]  [,6] [,7]
#> [1,] TRUE  TRUE  TRUE TRUE TRUE  TRUE TRUE
#> [2,] TRUE FALSE  TRUE TRUE TRUE  TRUE TRUE
#> [3,] TRUE  TRUE  TRUE TRUE TRUE FALSE TRUE
#> [4,] TRUE  TRUE  TRUE TRUE TRUE  TRUE TRUE
#> [5,] TRUE  TRUE  TRUE TRUE TRUE  TRUE TRUE
#> [6,] TRUE  TRUE  TRUE TRUE TRUE  TRUE TRUE
#> [7,] TRUE  TRUE FALSE TRUE TRUE  TRUE TRUE
gridworld_matrix(gw, what = "absorbing")
#>       [,1]  [,2]  [,3]  [,4]  [,5]  [,6]  [,7]
#> [1,] FALSE FALSE FALSE FALSE FALSE FALSE FALSE
#> [2,] FALSE  TRUE FALSE FALSE FALSE FALSE FALSE
#> [3,] FALSE FALSE FALSE FALSE FALSE  TRUE FALSE
#> [4,] FALSE FALSE FALSE  TRUE FALSE FALSE FALSE
#> [5,] FALSE FALSE FALSE FALSE FALSE FALSE FALSE
#> [6,] FALSE FALSE FALSE FALSE FALSE FALSE FALSE
#> [7,] FALSE FALSE  TRUE FALSE FALSE FALSE FALSE

# a transition function for regular moves in the gridworld is provided
gw$transition_prob("right", "s(1,1)", "s(1,2)")
#> [1] 1
gw$transition_prob("right", "s(2,1)", "s(2,2)")  ### we cannot move into an unreachable state
#> [1] 0
gw$transition_prob("right", "s(2,1)", "s(2,1)")  ### but the agent stays in place
#> [1] 1

# convert between state names and row/column indices
gridworld_s2rc("s(1,1)")
#> [1] 1 1
gridworld_rc2s(c(1,1))
#> [1] "s(1,1)"

# The information in gw can be used to build a custom MDP.

# We modify the standard transition function so there is a 50% chance that
# you will get sucked into the black hole from the adjacent squares.
trans_black_hole <- function(action = NA, start.state = NA, end.state = NA) {
  # ignore the action next to the black hole
  if (start.state %in% c("s(3,3)", "s(3,4)", "s(3,5)", "s(4,3)", "s(4,5)",
                         "s(5,3)", "s(5,4)", "s(5,5)")) {
        if(end.state == "s(4,4)")
            return(.5)
        else
            return(gw$transition_prob(action, start.state, end.state) * .5)
  }

  # use the standard gridworld movement
  gw$transition_prob(action, start.state, end.state)
}

black_hole <- MDP(states = gw$states,
  actions = gw$actions,
  transition_prob = trans_black_hole,
  reward = rbind(R_(value = +1), R_(end.state = "s(4,4)", value = -100)),
  info = gw$info,
  name = "Black hole"
  )

black_hole
#> MDP, list - Black hole
#>   Discount factor: 0.9
#>   Horizon: Inf epochs
#>   Size: 46 states / 4 actions
#>   Start: uniform
#>
#>   List components: ‘name’, ‘discount’, ‘horizon’, ‘states’, ‘actions’,
#>     ‘transition_prob’, ‘reward’, ‘info’, ‘start’

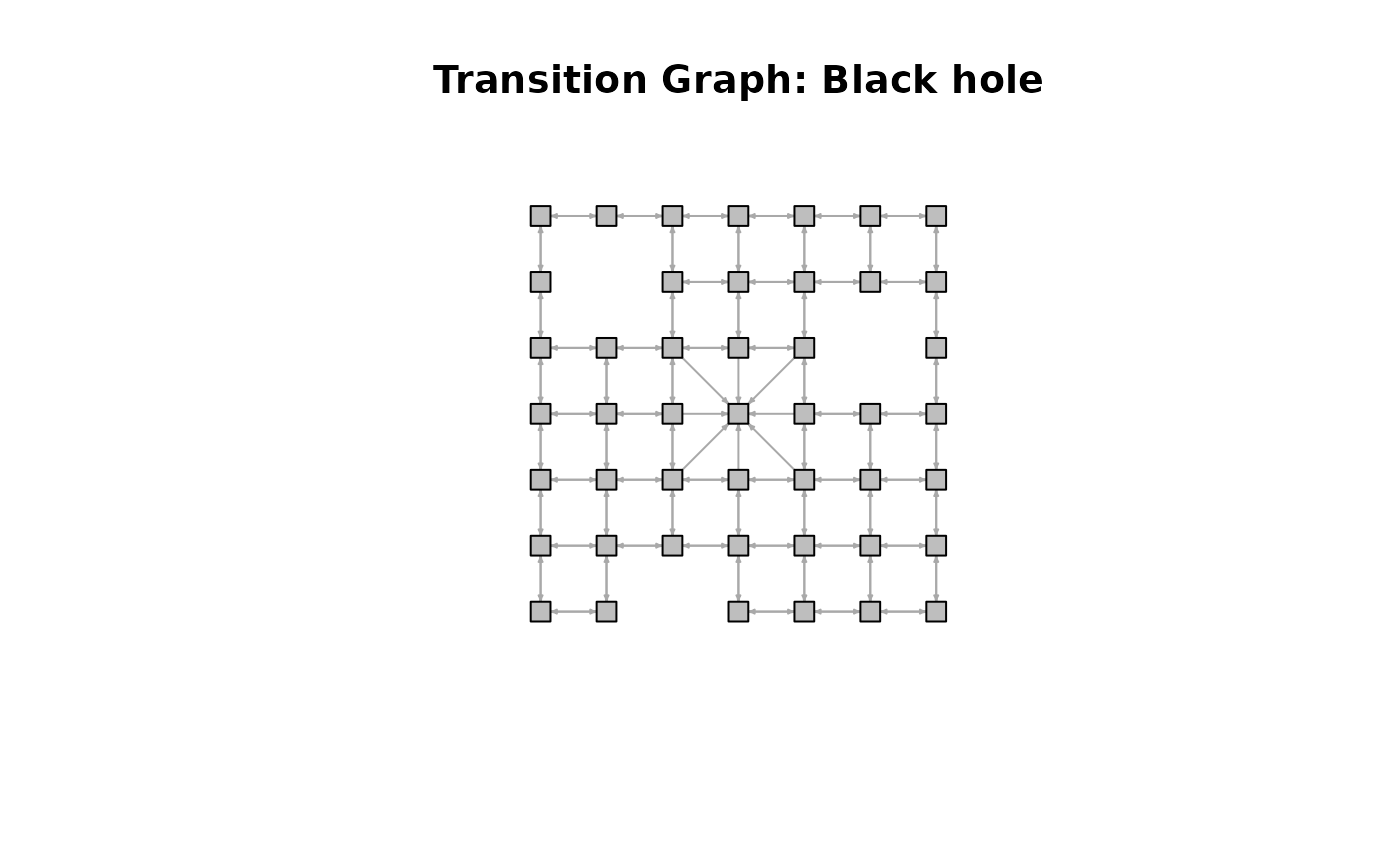

gridworld_plot_transition_graph(black_hole)


# solve the problem
sol <- solve_MDP(black_hole)
gridworld_matrix(sol, what = "values")
#>          [,1]     [,2]        [,3]        [,4]        [,5]     [,6]     [,7]
#> [1,] 9.999907 9.999907    9.999907    9.999907    9.999907 9.999907 9.999907
#> [2,] 9.999907       NA    9.999907    9.999907    9.999907 9.999907 9.999907
#> [3,] 9.999907 9.999907 -494.995416 -494.995416 -494.995416       NA 9.999907
#> [4,] 9.999907 9.999907 -494.995416 -999.990739 -494.995416 9.999907 9.999907
#> [5,] 9.999907 9.999907 -494.995416 -494.995416 -494.995416 9.999907 9.999907
#> [6,] 9.999907 9.999907    9.999907    9.999907    9.999907 9.999907 9.999907
#> [7,] 9.999907 9.999907          NA    9.999907    9.999907 9.999907 9.999907

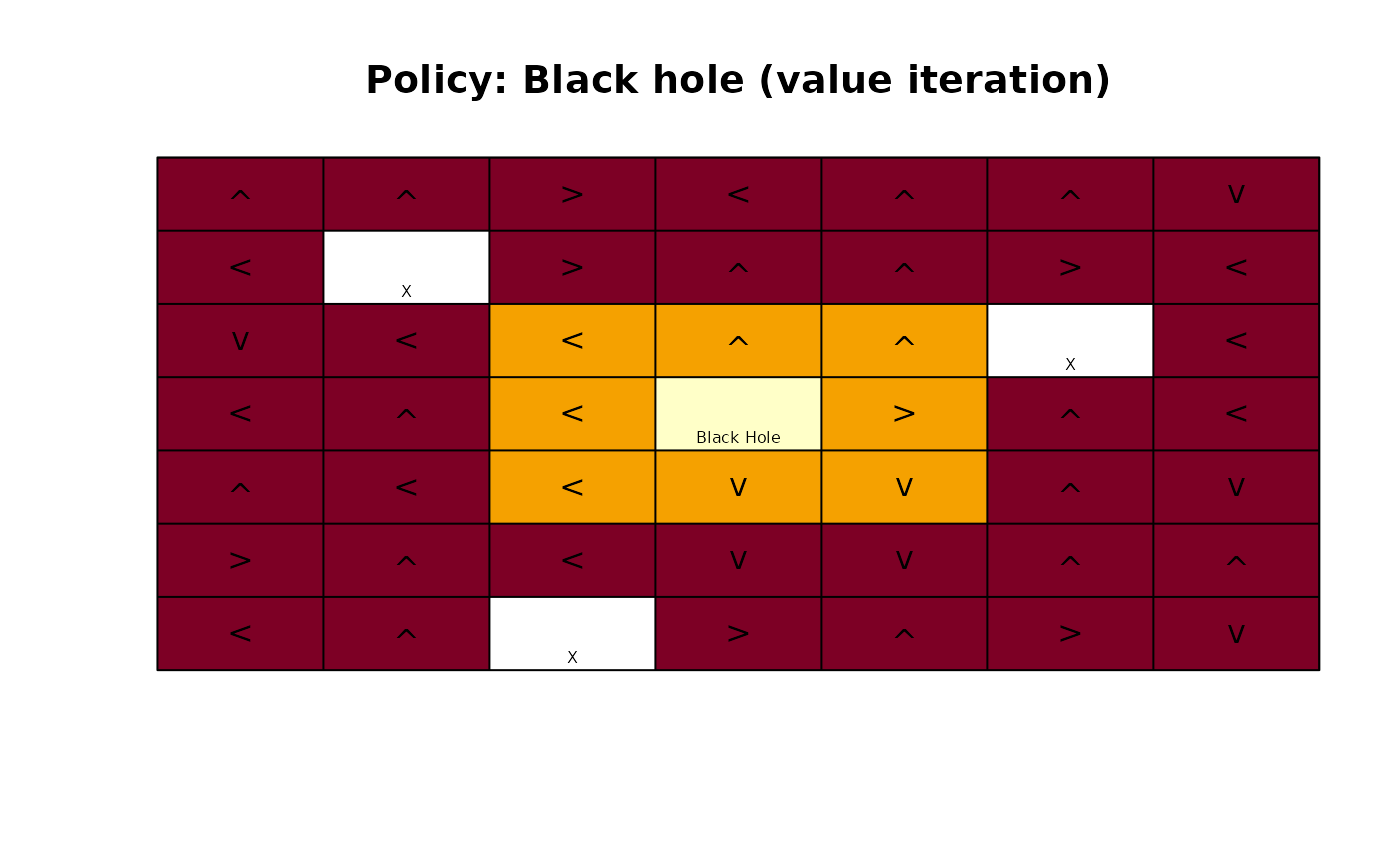

gridworld_plot_policy(sol)

# the optimal policy is to fly around, but avoid the black hole.

# Build a Maze: The Dyna Maze from Chapter 8 in the RL book

DynaMaze <- gridworld_maze_MDP(
                dim = c(6,9),
                start = "s(3,1)",
                goal = "s(1,9)",
                walls = c("s(2,3)", "s(3,3)", "s(4,3)",
                          "s(5,6)",
                          "s(1,8)", "s(2,8)", "s(3,8)"),
                restart = TRUE,
                discount = 0.95,
                name = "Dyna Maze",
                )
DynaMaze
#> MDP, list - Dyna Maze
#>   Discount factor: 0.95
#>   Horizon: Inf epochs
#>   Size: 47 states / 5 actions
#>   Start: s(3,1)
#>
#>   List components: ‘name’, ‘discount’, ‘horizon’, ‘states’, ‘actions’,
#>     ‘transition_prob’, ‘reward’, ‘info’, ‘start’

gridworld_matrix(DynaMaze)
#>      [,1]     [,2]     [,3]     [,4]     [,5]     [,6]     [,7]     [,8]
#> [1,] "s(1,1)" "s(1,2)" "s(1,3)" "s(1,4)" "s(1,5)" "s(1,6)" "s(1,7)" NA
#> [2,] "s(2,1)" "s(2,2)" NA       "s(2,4)" "s(2,5)" "s(2,6)" "s(2,7)" NA
#> [3,] "s(3,1)" "s(3,2)" NA       "s(3,4)" "s(3,5)" "s(3,6)" "s(3,7)" NA
#> [4,] "s(4,1)" "s(4,2)" NA       "s(4,4)" "s(4,5)" "s(4,6)" "s(4,7)" "s(4,8)"
#> [5,] "s(5,1)" "s(5,2)" "s(5,3)" "s(5,4)" "s(5,5)" NA       "s(5,7)" "s(5,8)"
#> [6,] "s(6,1)" "s(6,2)" "s(6,3)" "s(6,4)" "s(6,5)" "s(6,6)" "s(6,7)" "s(6,8)"
#>      [,9]
#> [1,] "s(1,9)"
#> [2,] "s(2,9)"
#> [3,] "s(3,9)"
#> [4,] "s(4,9)"
#> [5,] "s(5,9)"
#> [6,] "s(6,9)"
gridworld_matrix(DynaMaze, what = "labels")
#>      [,1]    [,2] [,3] [,4] [,5] [,6] [,7] [,8] [,9]
#> [1,] ""      ""   ""   ""   ""   ""   ""   "X"  "Goal"
#> [2,] ""      ""   "X"  ""   ""   ""   ""   "X"  ""
#> [3,] "Start" ""   "X"  ""   ""   ""   ""   "X"  ""
#> [4,] ""      ""   "X"  ""   ""   ""   ""   ""   ""
#> [5,] ""      ""   ""   ""   ""   "X"  ""   ""   ""
#> [6,] ""      ""   ""   ""   ""   ""   ""   ""   ""

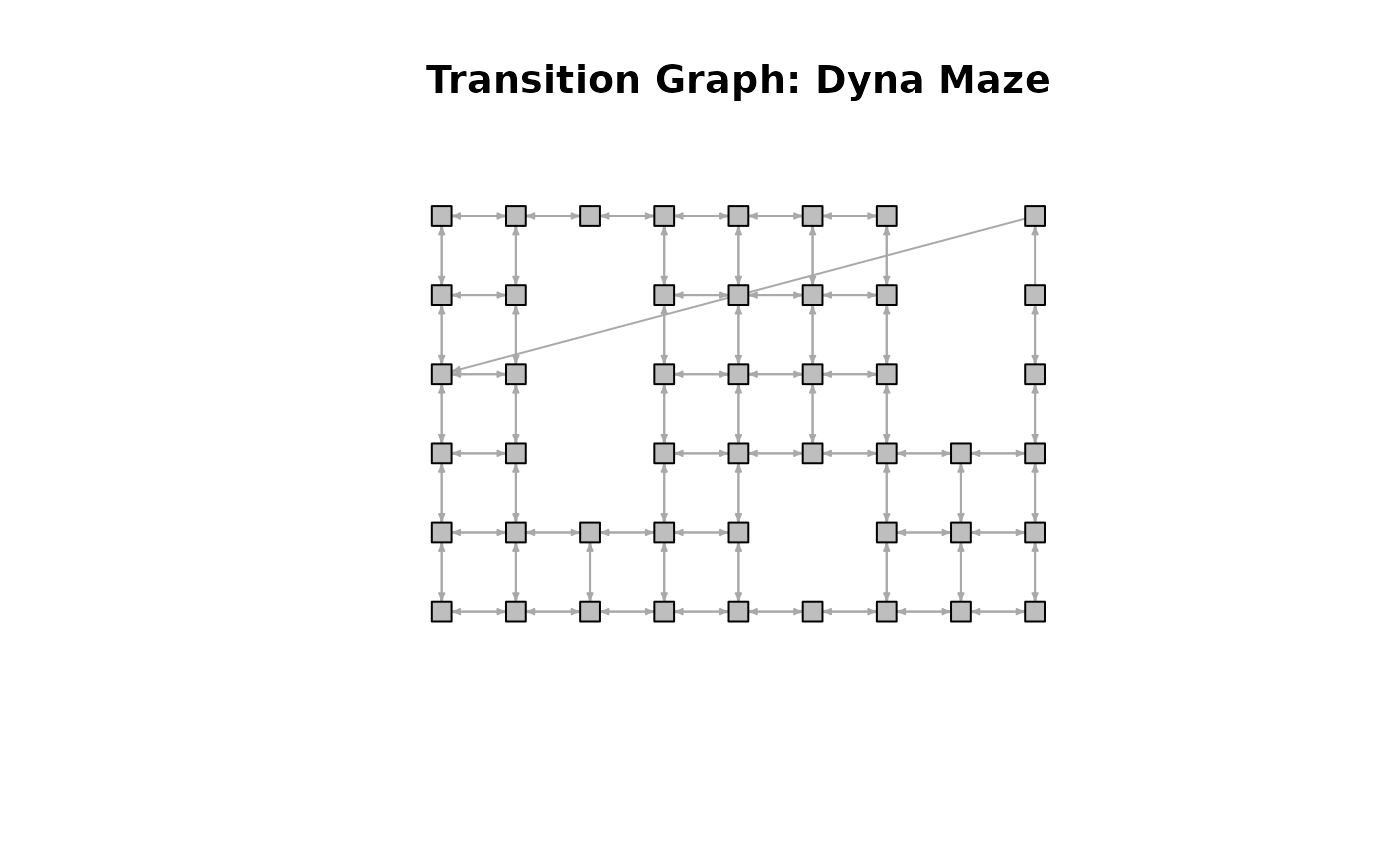

gridworld_plot_transition_graph(DynaMaze)

# Note that the problems resets if the goal state would be reached.

sol <- solve_MDP(DynaMaze)

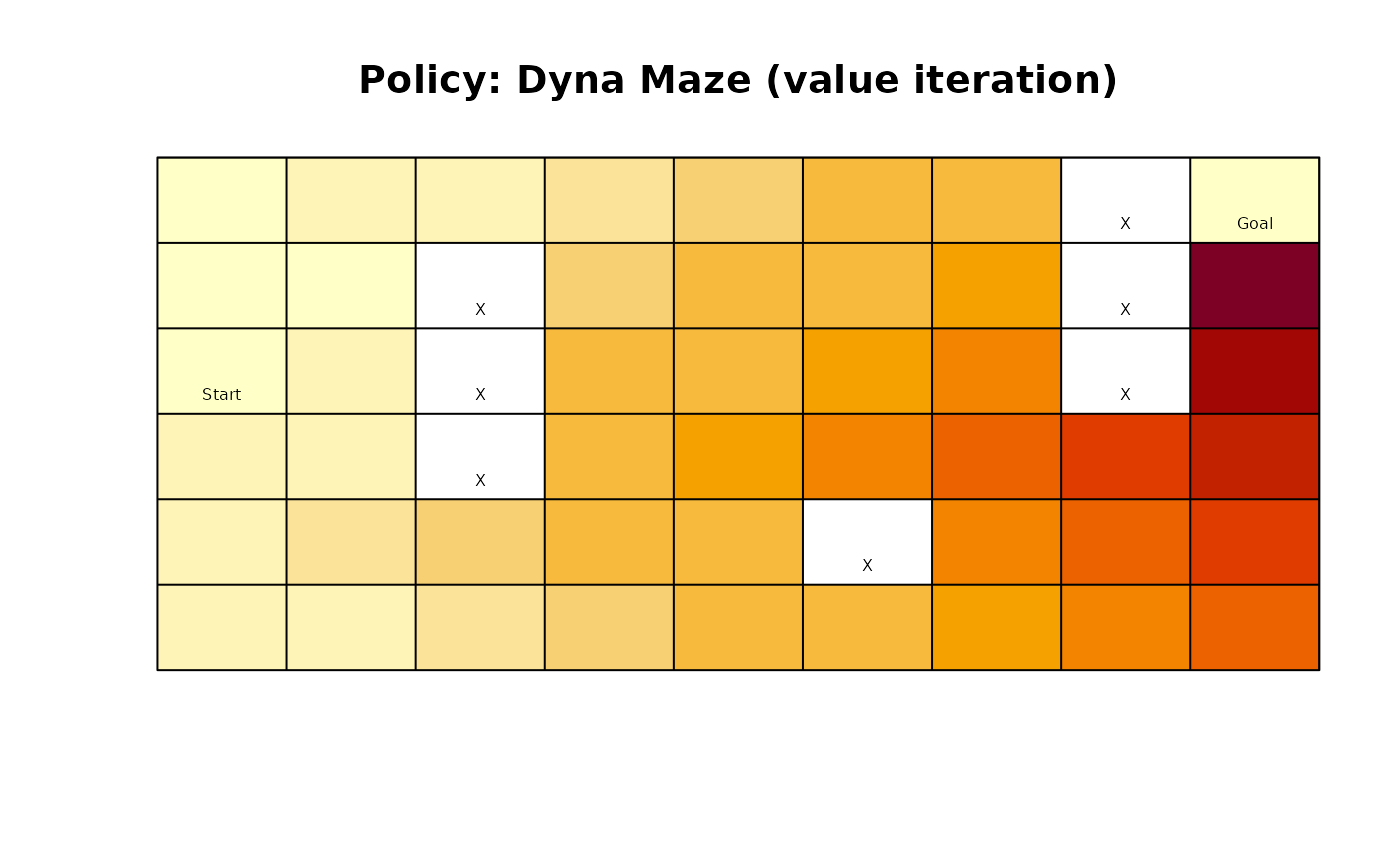

gridworld_matrix(sol, what = "values")
#>           [,1]      [,2]     [,3]     [,4]     [,5]     [,6]     [,7]     [,8]
#> [1,] 0.9560273 1.0063445 1.059310 1.115063 1.173751 1.235527 1.300555       NA
#> [2,] 0.9077464 0.9560273       NA 1.173751 1.235527 1.300555 1.369005       NA
#> [3,] 0.9560273 1.0063445       NA 1.235527 1.300555 1.369005 1.441058       NA
#> [4,] 1.0063445 1.0593100       NA 1.300555 1.369005 1.441058 1.516903 1.596740
#> [5,] 1.0593100 1.1150632 1.173751 1.235527 1.300555       NA 1.441058 1.516903
#> [6,] 1.0063445 1.0593100 1.115063 1.173751 1.235527 1.300555 1.369005 1.441058
#>           [,9]
#> [1,] 0.9077464
#> [2,] 1.8623591
#> [3,] 1.7692411
#> [4,] 1.6807791
#> [5,] 1.5967401
#> [6,] 1.5169031

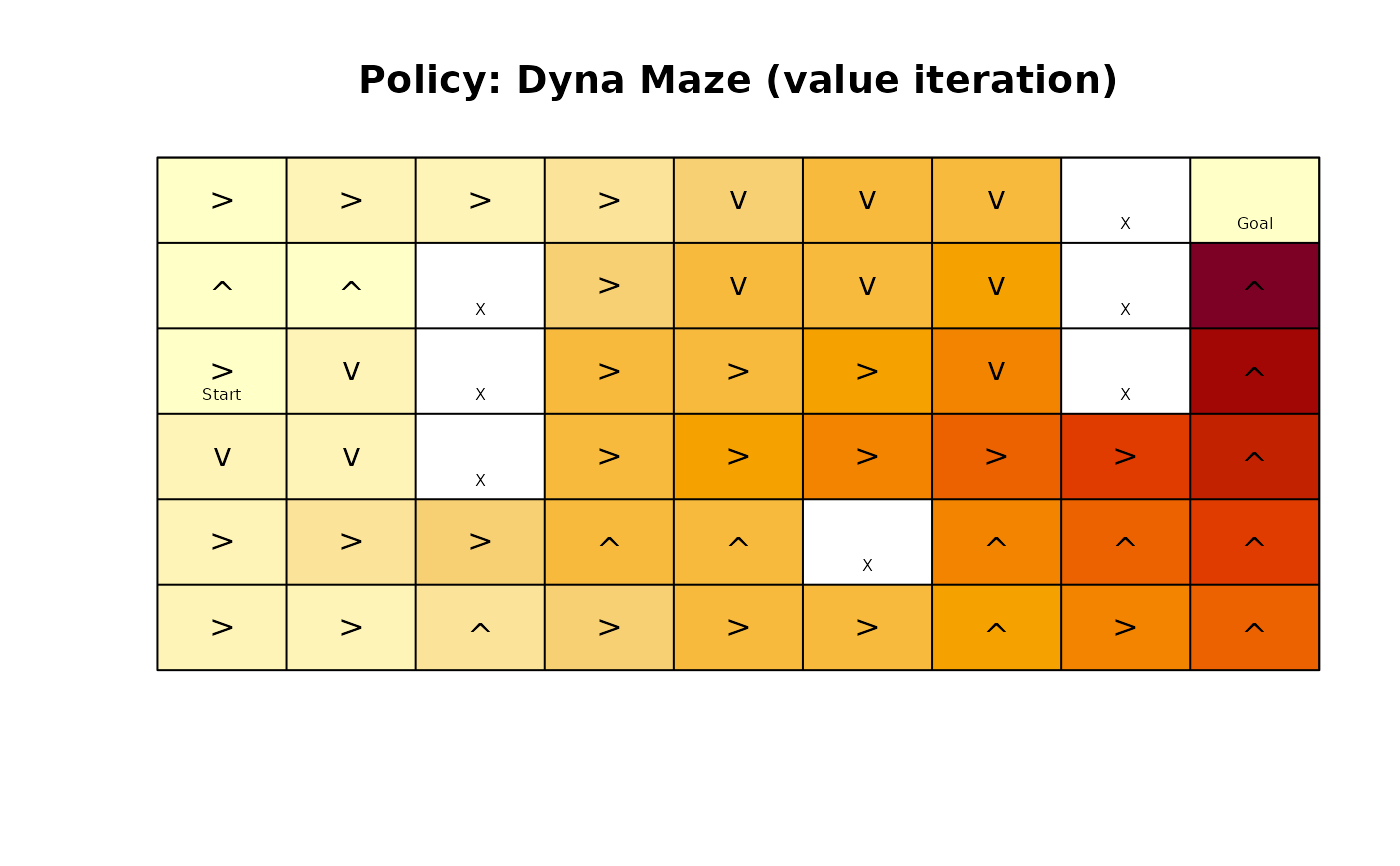

gridworld_matrix(sol, what = "actions")
#>      [,1]    [,2]    [,3]    [,4]    [,5]    [,6]    [,7]    [,8]    [,9]
#> [1,] "right" "right" "right" "right" "down"  "down"  "down"  NA      "restart"
#> [2,] "up"    "up"    NA      "right" "down"  "down"  "down"  NA      "up"
#> [3,] "right" "down"  NA      "right" "right" "right" "down"  NA      "up"
#> [4,] "down"  "down"  NA      "right" "right" "right" "right" "right" "up"
#> [5,] "right" "right" "right" "up"    "up"    NA      "up"    "up"    "up"
#> [6,] "right" "right" "up"    "right" "right" "right" "up"    "right" "up"
gridworld_plot_policy(sol)

gridworld_plot_policy(sol, actions = "label", cex = 1, states = FALSE)


# visualize the first 3 iterations of value iteration
gridworld_animate(DynaMaze, method = "value", n = 3)

Helper Functions for Gridworld MDPs

Usage

Arguments

Details

See also

Examples
