Access to Parts of the Model Description

Source: R/accessors.R, R/accessors_reward.R, R/accessors_trans_obs.R
accessors.Rd

Functions to provide uniform access to different parts of the POMDP/MDP problem description.

Usage

start_vector(x)

normalize_POMDP(
  x,
  sparse = TRUE,
  trans_start = FALSE,
  trans_function = TRUE,
  trans_keyword = FALSE
)

normalize_MDP(
  x,
  sparse = TRUE,
  trans_start = FALSE,
  trans_function = TRUE,
  trans_keyword = FALSE
)

reward_matrix(
  x,
  action = NULL,
  start.state = NULL,
  end.state = NULL,
  observation = NULL,
  episode = NULL,
  epoch = NULL,
  sparse = FALSE,
  drop = TRUE
)

reward_val(
  x,
  action,
  start.state,
  end.state = NULL,
  observation = NULL,
  episode = NULL,
  epoch = NULL
)

transition_matrix(
  x,
  action = NULL,
  start.state = NULL,
  end.state = NULL,
  episode = NULL,
  epoch = NULL,
  sparse = FALSE,
  trans_keyword = TRUE,
  drop = TRUE
)

transition_val(x, action, start.state, end.state, episode = NULL, epoch = NULL)

observation_matrix(
  x,
  action = NULL,
  end.state = NULL,
  observation = NULL,
  episode = NULL,
  epoch = NULL,
  sparse = FALSE,
  trans_keyword = TRUE,
  drop = TRUE
)

observation_val(
  x,
  action,
  end.state,
  observation,
  episode = NULL,
  epoch = NULL
)

Arguments

x

A POMDP or MDP object.

sparse

logical; use sparse matrices when the density is below 50% and keeps data.frame representation for the reward field. NULL returns the representation stored in the problem description which saves the time for conversion.

trans_start

logical; expand the start to a probability vector?

trans_function

logical; convert functions into matrices?

trans_keyword

logical; convert distribution keywords (uniform and identity) in transition_prob or observation_prob to matrices?

action

name or index of an action.

start.state, end.state

name or index of the state.

observation

name or index of observation.

episode, epoch

Episode or epoch used for time-dependent POMDPs. Epochs are internally converted to the episode using the model horizon.

drop

logical; simplify a selection to a vector or scalar. Use drop = FALSE to preserve matrix dimensions.

Value

A list or a list of lists of matrices.

Details

Several parts of the POMDP/MDP description can be defined in different ways. In particular, the fields transition_prob, observation_prob, reward, and start can be defined using matrices, data frames, keywords, or functions. See POMDP for details. The functions provided here offer unified access to the data in these fields to make writing code easier.

Transition Probabilities \(T(s'|s,a)\)

transition_matrix() accesses the transition model. The complete model is a list with one element for each action. Each element contains a states x states matrix with \(s\) (start.state) as rows and \(s'\) (end.state) as columns. Matrices with a density below 50% can be requested in sparse format (as a Matrix::dgCMatrix).

Observation Probabilities \(O(o|s',a)\)

observation_matrix() accesses the observation model. The complete model is a list with one element for each action. Each element contains a states x observations matrix with \(s\) (start.state) as rows and \(o\) (observation) as columns. Matrices with a density below 50% can be requested in sparse format (as a Matrix::dgCMatrix)

Reward \(R(s,s',o,a)\)

reward_matrix() accesses the reward model. The preferred representation is a data.frame with the columns action, start.state, end.state, observation, and value. This is a sparse representation. The dense representation is a list of lists of matrices. The list levels are \(a\) (action) and \(s\) (start.state). The matrices have rows representing \(s'\) (end.state) and columns representing \(o\) (observations). The reward structure cannot be efficiently stored using a standard sparse matrix since there might be a fixed cost for each action resulting in no entries with 0.

Initial Belief

start_vector() translates the initial probability vector description into a numeric vector.

Deprecated scalar accessors

transition_val(), observation_val(), and reward_val() are deprecated. Use the corresponding *_matrix() accessor with the same selection arguments and drop = TRUE instead.

Convert the Complete POMDP Description into a consistent form

normalize_POMDP() returns a new POMDP definition where transition_prob, observations_prob, reward, and start are normalized.

Also, states, actions, and observations are ordered as given in the problem definition to make safe access using numerical indices possible. Normalized POMDP descriptions can be used in custom code that expects consistently a certain format.

See also

Other POMDP: MDP2POMDP, POMDP(), actions(), add_policy(), plot_belief_space(), projection(), reachable_and_absorbing, regret(), sample_belief_space(), simulate_POMDP(), solve_POMDP(), solve_SARSOP(), transition_graph(), update_belief(), value_function(), write_POMDP()

Other MDP: MDP(), MDP2POMDP, MDP_policy_functions, actions(), add_policy(), gridworld, reachable_and_absorbing, regret(), simulate_MDP(), solve_MDP(), transition_graph(), value_function()

Author

Michael Hahsler

Examples

data("Tiger")

# List of |A| transition matrices. One per action in the from start.states x end.states
Tiger$transition_prob
#> $listen
#> [1] "identity"
#>
#> $`open-left`
#> [1] "uniform"
#>
#> $`open-right`
#> [1] "uniform"
#>
transition_matrix(Tiger)
#> $listen
#>             tiger-left tiger-right
#> tiger-left           1           0
#> tiger-right          0           1
#>
#> $`open-left`
#>             tiger-left tiger-right
#> tiger-left         0.5         0.5
#> tiger-right        0.5         0.5
#>
#> $`open-right`
#>             tiger-left tiger-right
#> tiger-left         0.5         0.5
#> tiger-right        0.5         0.5
#>
transition_matrix(Tiger, action = "listen", start.state = "tiger-left",
  end.state = "tiger-left")
#> [1] 1

# List of |A| observation matrices. One per action in the from states x observations
Tiger$observation_prob
#> $listen
#>             tiger-left tiger-right
#> tiger-left        0.85        0.15
#> tiger-right       0.15        0.85
#>
#> $`open-left`
#> [1] "uniform"
#>
#> $`open-right`
#> [1] "uniform"
#>
observation_matrix(Tiger)
#> $listen
#>             tiger-left tiger-right
#> tiger-left        0.85        0.15
#> tiger-right       0.15        0.85
#>
#> $`open-left`
#>             tiger-left tiger-right
#> tiger-left         0.5         0.5
#> tiger-right        0.5         0.5
#>
#> $`open-right`
#>             tiger-left tiger-right
#> tiger-left         0.5         0.5
#> tiger-right        0.5         0.5
#>
observation_matrix(Tiger, action = "listen", end.state = "tiger-left",
  observation = "tiger-left")
#> [1] 0.85

# List of list of reward matrices. 1st level is action and second level is the
#  start state in the form end state x observation
Tiger$reward
#>       action start.state end.state observation value
#> 1     listen        <NA>      <NA>        <NA>    -1
#> 2  open-left  tiger-left      <NA>        <NA>  -100
#> 3  open-left tiger-right      <NA>        <NA>    10
#> 4 open-right  tiger-left      <NA>        <NA>    10
#> 5 open-right tiger-right      <NA>        <NA>  -100
reward_matrix(Tiger)
#> $listen
#> $listen$`tiger-left`
#>             tiger-left tiger-right
#> tiger-left          -1          -1
#> tiger-right         -1          -1
#>
#> $listen$`tiger-right`
#>             tiger-left tiger-right
#> tiger-left          -1          -1
#> tiger-right         -1          -1
#>
#>
#> $`open-left`
#> $`open-left`$`tiger-left`
#>             tiger-left tiger-right
#> tiger-left        -100        -100
#> tiger-right       -100        -100
#>
#> $`open-left`$`tiger-right`
#>             tiger-left tiger-right
#> tiger-left          10          10
#> tiger-right         10          10
#>
#>
#> $`open-right`
#> $`open-right`$`tiger-left`
#>             tiger-left tiger-right
#> tiger-left          10          10
#> tiger-right         10          10
#>
#> $`open-right`$`tiger-right`
#>             tiger-left tiger-right
#> tiger-left        -100        -100
#> tiger-right       -100        -100
#>
#>
reward_matrix(Tiger, sparse = TRUE)
#>       action start.state end.state observation value
#> 1     listen        <NA>      <NA>        <NA>    -1
#> 2  open-left  tiger-left      <NA>        <NA>  -100
#> 3  open-left tiger-right      <NA>        <NA>    10
#> 4 open-right  tiger-left      <NA>        <NA>    10
#> 5 open-right tiger-right      <NA>        <NA>  -100
reward_matrix(Tiger, action = "open-right", start.state = "tiger-left", end.state = "tiger-left",
  observation = "tiger-left")
#> [1] 10

# Translate the initial belief vector
Tiger$start
#> [1] "uniform"
start_vector(Tiger)
#>  tiger-left tiger-right
#>         0.5         0.5

# Normalize the whole model
Tiger_norm <- normalize_POMDP(Tiger)
Tiger_norm$transition_prob
#> $listen
#> [1] "identity"
#>
#> $`open-left`
#> [1] "uniform"
#>
#> $`open-right`
#> [1] "uniform"
#>

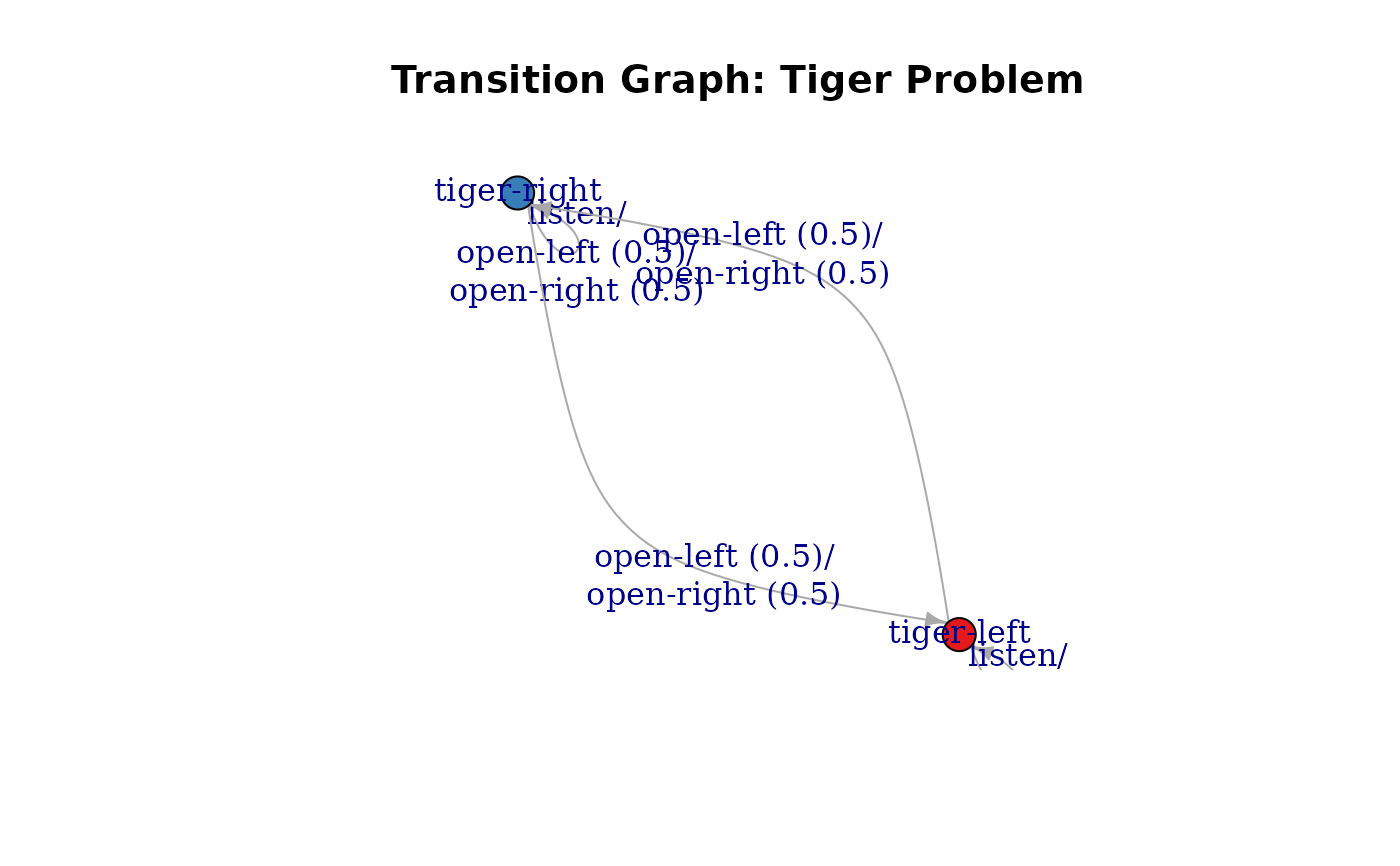

## Visualize transition matrix for action 'open-left'
plot_transition_graph(Tiger)


## Use a function for the Tiger transition model
trans <- function(action, end.state, start.state) {
  ## listen has an identity matrix
  if (action == 'listen')
    if (end.state == start.state) return(1)
    else return(0)

  # other actions have a uniform distribution
  return(1/2)
}

Tiger$transition_prob <- trans

# transition_matrix evaluates the function
transition_matrix(Tiger)
#> $listen
#>             tiger-left tiger-right
#> tiger-left           1           0
#> tiger-right          0           1
#>
#> $`open-left`
#>             tiger-left tiger-right
#> tiger-left         0.5         0.5
#> tiger-right        0.5         0.5
#>
#> $`open-right`
#>             tiger-left tiger-right
#> tiger-left         0.5         0.5
#> tiger-right        0.5         0.5
#>
