The dbscan package [6] provides a fast implementation of Hierarchical DBSCAN (HDBSCAN) and related algorithms for R. Nearest-neighbor searches use k-d trees, and for data matrices the minimum spanning tree (MST) is computed with Prim’s algorithm without materializing the full distance matrix. This vignette introduces the corresponding interface. For an introduction to the concepts of the algorithm, see the HDBSCAN documentation of the Python library hdbscan. We use the same sample dataset as that documentation:

##
## Attaching package: 'dbscan'
## The following object is masked from 'package:stats':
##
##     as.dendrogram
data("moons")
plot(moons, pch=20)

To run HDBSCAN, pass the data and the single parameter minPts to hdbscan().

  cl <- hdbscan(moons, minPts = 5)
  cl
## HDBSCAN clustering for 100 objects.
## Parameters: minPts = 5
## The clustering contains 3 cluster(s) and 0 noise points.
##
##  1  2  3
## 25 25 50
##
## Available fields: cluster, minPts, coredist, cluster_scores,
##                   membership_prob, outlier_scores, hc

The flat clustering is stored in the cluster component. Noise points are assigned the cluster id 0, so we add 1 to obtain valid color indices.

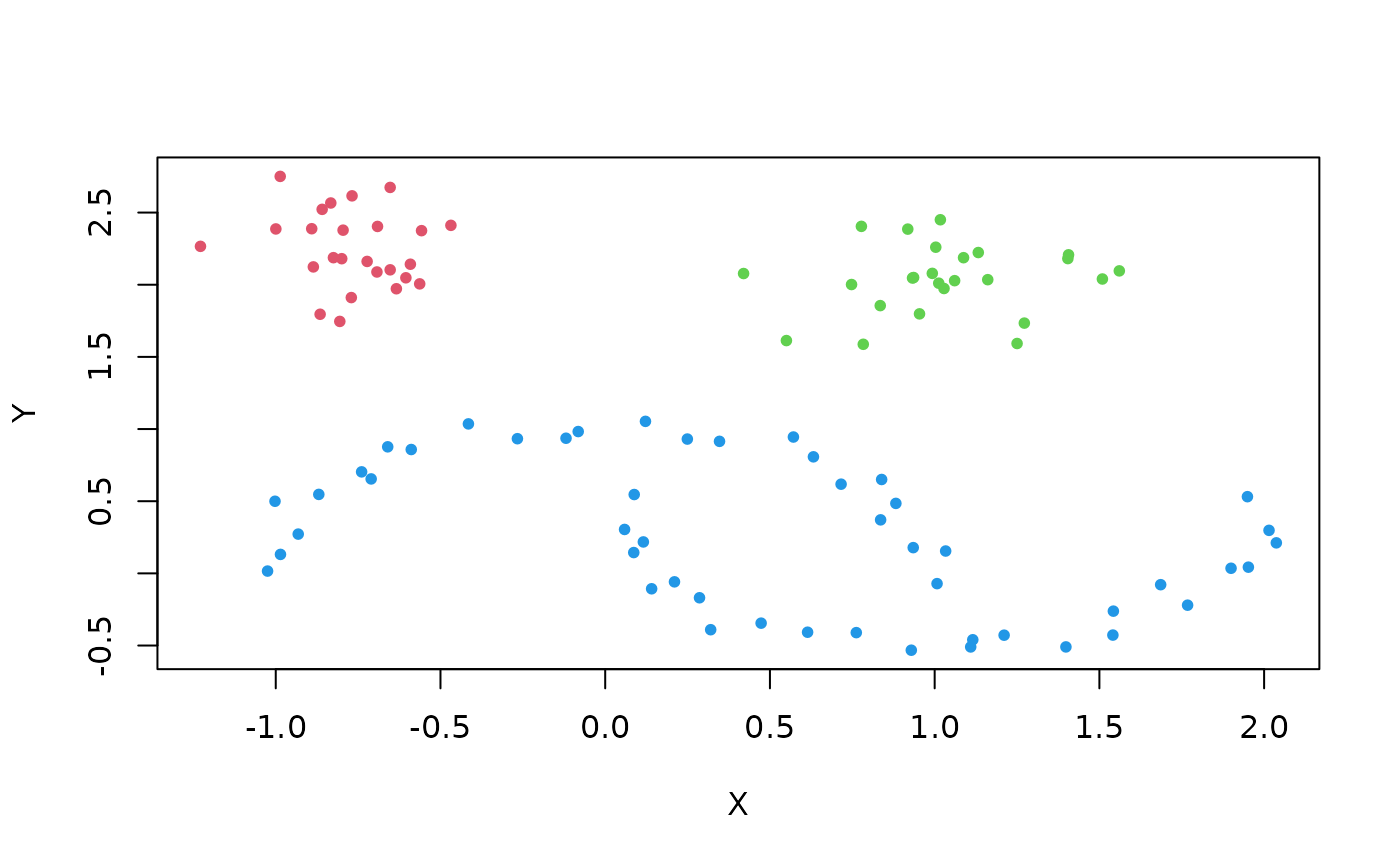

 plot(moons, col=cl$cluster+1, pch=20)

The clustering recovers the intuitive, arbitrarily shaped groups in the data.

The HDBSCAN* Hierarchy

The hdbscan object contains a hierarchical representation of all DBSCAN* clusterings for the given minPts. The hierarchy is stored in the hc component as an hclust object (see stats::hclust()).

cl$hc
##
## Call:
## mst_mrdist(x = x, minPts = minPts, coredist = coredist)
##
## Cluster method   : robust single
## Distance         : mutual reachability (euclidean)
## Number of objects: 100

The object can be used with functions that accept hclust objects. Note, however, that the hierarchy is a single-linkage hierarchy under the mutual reachability distance (see [3]), which stats::hclust() does not provide as a linkage method. It is called the “HDBSCAN* hierarchy” in [3, 4] and can be visualized with the plot method for hclust objects from the stats package:

plot(cl$hc, main="HDBSCAN* Hierarchy")

DBSCAN* vs. Cutting the HDBSCAN* Hierarchy

A global cut of the HDBSCAN* hierarchy at height \(\varepsilon\) is equivalent to running DBSCAN* (DBSCAN [1] without border points) with \(\varepsilon\) and the same \(minPts\). We can verify this empirically. stats::cutree() does not label singletons as noise, so the function below assigns noise (cluster id 0) to all points whose core distance exceeds \(\varepsilon\). The clusterings are then compared across all cut heights.

cl <- hdbscan(moons, minPts = 5)
check <- rep(FALSE, nrow(moons)-1)
core_dist <- kNNdist(moons, k=5-1)

## cutree doesn't distinguish noise as 0, so we make a new method to do it manually
cut_tree <- function(hcl, eps, core_dist){
  cuts <- unname(cutree(hcl, h=eps))
  cuts[which(core_dist > eps)] <- 0 # Use core distance to distinguish noise
  cuts
}

eps_values <- sort(cl$hc$height, decreasing = TRUE)+.Machine$double.eps ## Machine eps for consistency between cuts
for (i in 1:length(eps_values)) {
  cut_cl <- cut_tree(cl$hc, eps_values[i], core_dist)
  dbscan_cl <- dbscan(moons, eps = eps_values[i], minPts = 5, borderPoints = FALSE) # DBSCAN* doesn't include border points

  ## Use run length encoding as an ID-independent way to check ordering
  check[i] <- (all.equal(rle(cut_cl)$lengths, rle(dbscan_cl$cluster)$lengths) == "TRUE")
}
print(all(check == TRUE))
## [1] TRUE

Simplified Cluster Tree

The full HDBSCAN* hierarchy becomes unwieldy for larger datasets because every observation is a leaf. The plot() method for hdbscan objects instead shows the simplified (condensed) cluster tree (see [3, 4]), which displays cluster-wide changes over all values of \(\varepsilon\). It is the default visualization:

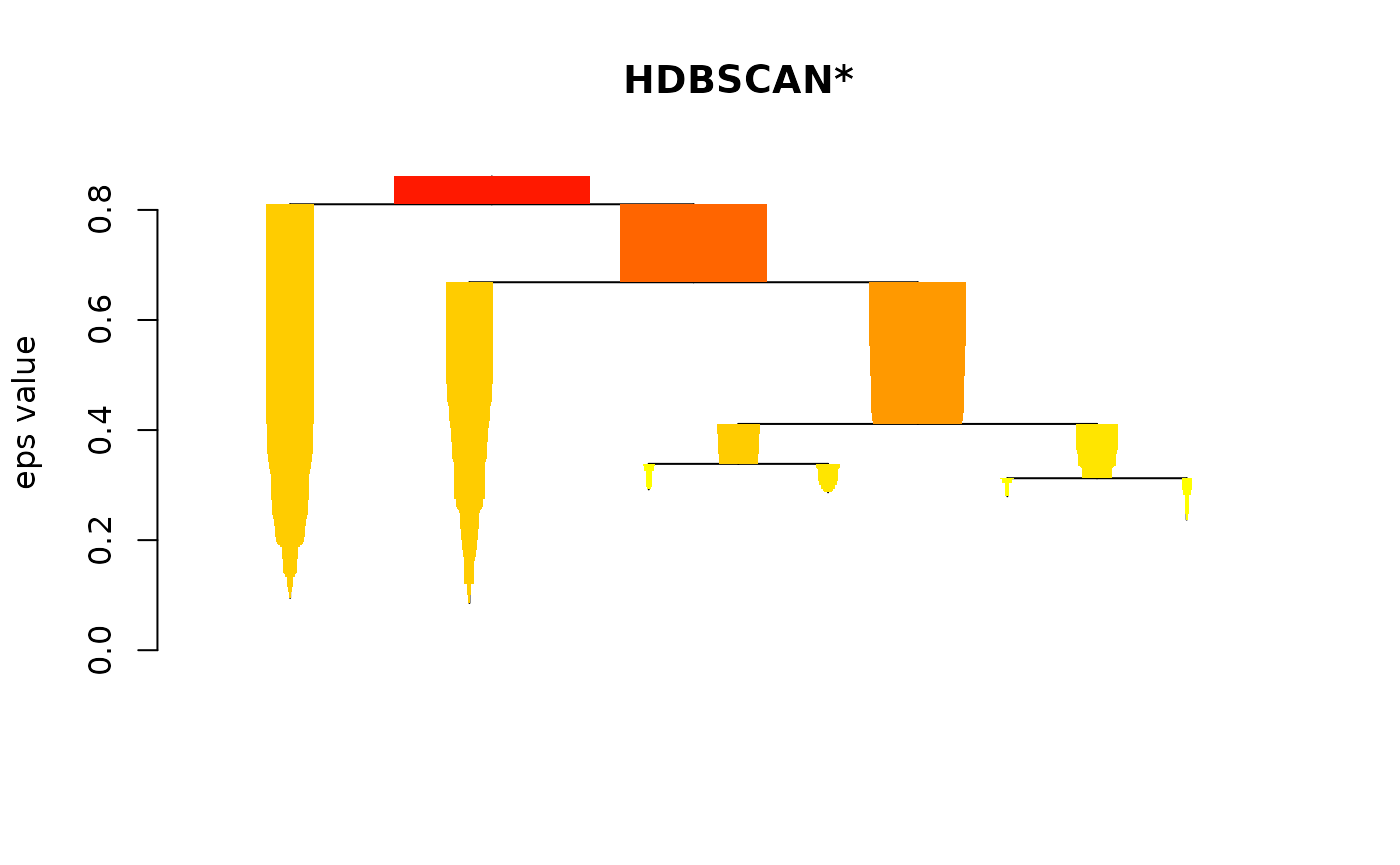

 plot(cl)

The color gradient can be changed,

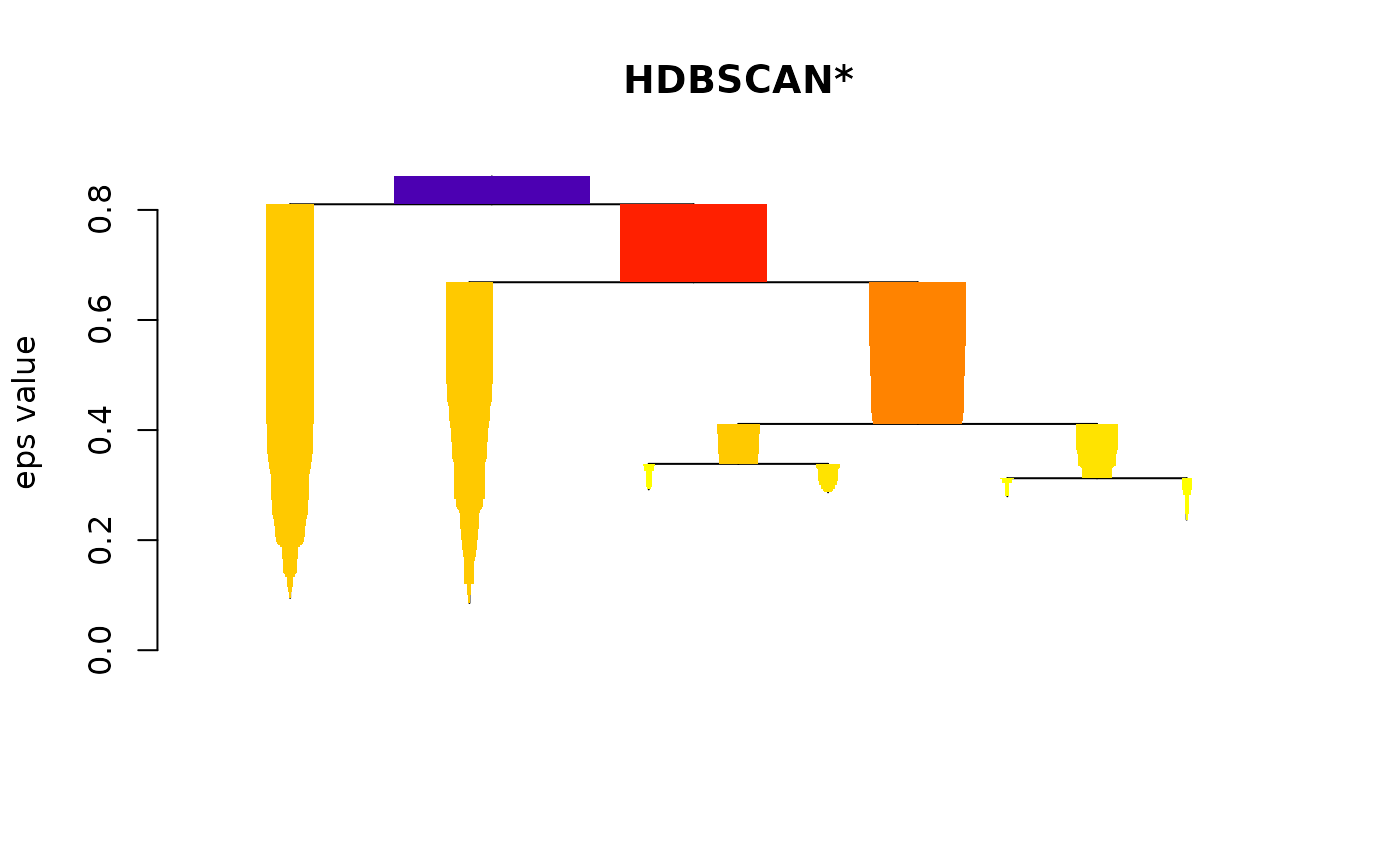

 plot(cl, gradient = c("yellow", "orange", "red", "blue"))

the widths scaled to the output device,

plot(cl, gradient = c("purple", "blue", "green", "yellow"), scale=1.5)

and the clusters selected for the flat solution (those with maximal stability [2]) can be outlined:

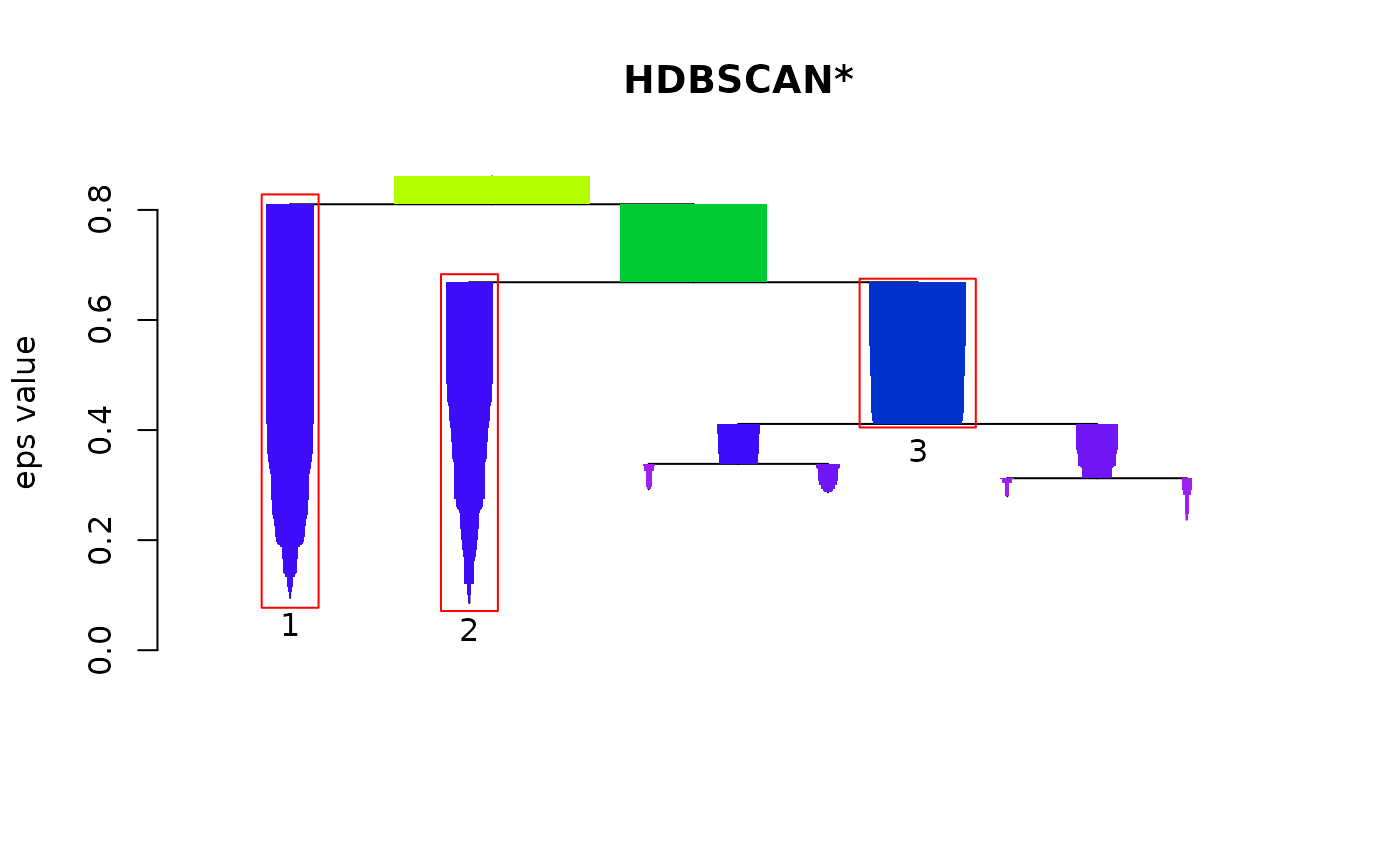

plot(cl, gradient = c("purple", "blue", "green", "yellow"), show_flat = TRUE)

Cluster Stability Scores

The stability scores are indexed by the cluster labels of the condensed tree. These labels differ from the cluster ids in the cluster component. The scores are the stability values before the bottom-up traversal of the tree that updates them based on the stability of the child clusters.

print(cl$cluster_scores)
##         1         2         3
## 110.70613  90.86559  45.62762

The membership “probabilities” of the individual points are stored in membership_prob. They are derived from the core distances and are not probabilities in a statistical sense.

  head(cl$membership_prob)
## [1] 0.4354753 0.2893287 0.4778663 0.4035933 0.4574012 0.4904582

They can be used to visualize the degree of cluster membership, for example, by mapping it to the transparency of the points.

  plot(moons, col=cl$cluster+1, pch=21)
  colors <- mapply(function(col, i) adjustcolor(col, alpha.f = cl$membership_prob[i]),
                   palette()[cl$cluster+1], seq_along(cl$cluster))
  points(moons, col=colors, pch=20)

Global-Local Outlier Score from Hierarchies

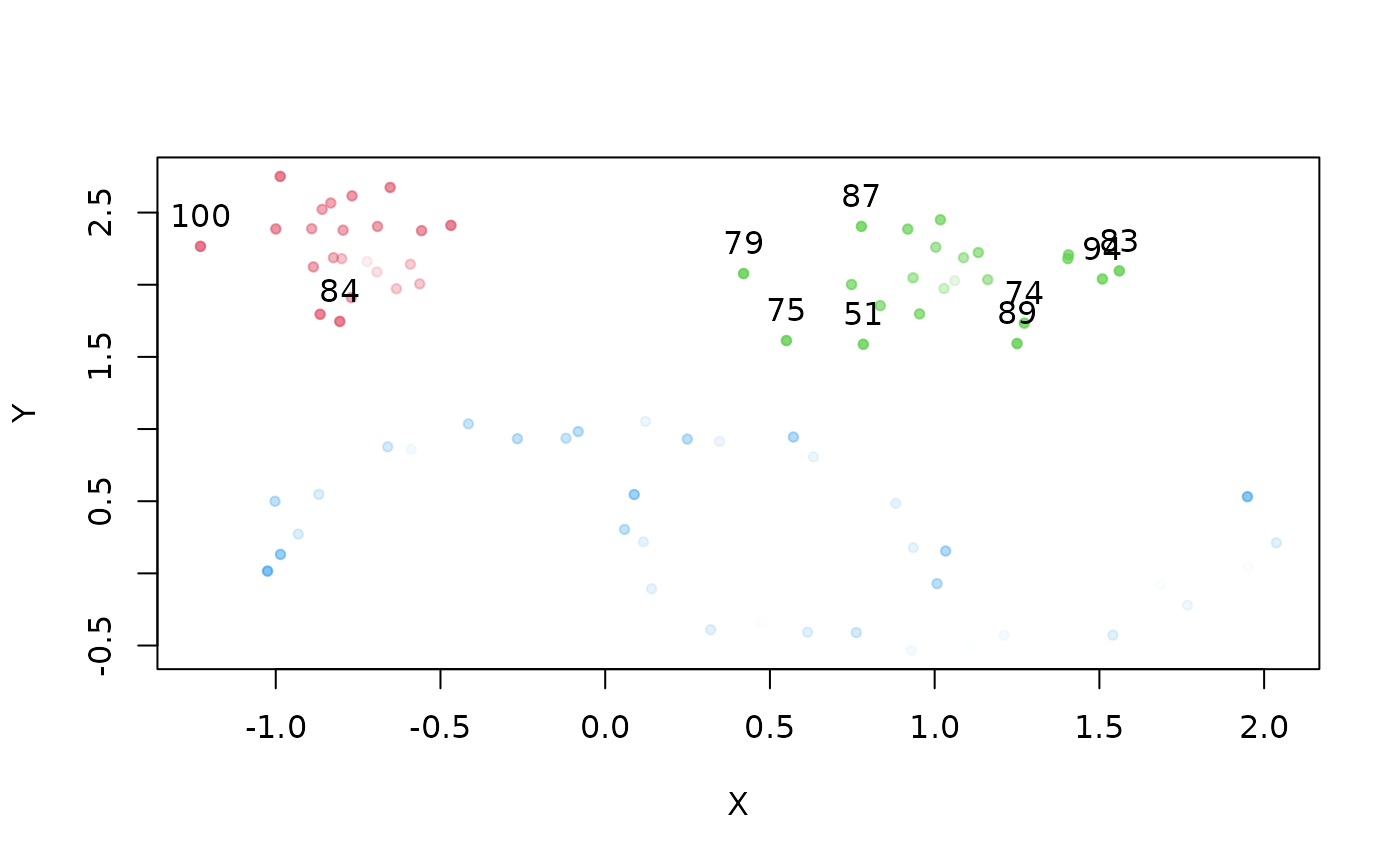

The Global-Local Outlier Score from Hierarchies (GLOSH) [4] assigns an outlier score to each point based on both local and global properties of the hierarchy. The scores are available in the outlier_scores component. In the plot below, the opacity of a point represents its outlier score, and the ten points with the highest scores are labeled.

Note: GLOSH is computed from the hierarchy. It is not simply the complement of the membership probabilities, which are based on the core distances of the points within the selected clusters. Noise points (points not assigned to any cluster) are taken into account in the definition of an outlier.

  top_outliers <- order(cl$outlier_scores, decreasing = TRUE)[1:10]
  colors <- mapply(function(col, i) adjustcolor(col, alpha.f = cl$outlier_scores[i]),
                   palette()[cl$cluster+1], seq_along(cl$cluster))
  plot(moons, col=colors, pch=20)
  text(moons[top_outliers, ], labels = top_outliers, pos=3)

A Larger Example

A larger dataset illustrates the advantages of HDBSCAN more clearly. The DS3 dataset was published as a benchmark for the Chameleon clustering algorithm [5]. Its shapes are easy to identify visually, but many clustering algorithms fail to recover them.

data("DS3")
plot(DS3, pch=20, cex=0.25)

With minPts = 25, HDBSCAN finds the 6 clusters in the data:

cl2 <- hdbscan(DS3, minPts = 25)
cl2
## HDBSCAN clustering for 8000 objects.
## Parameters: minPts = 25
## The clustering contains 6 cluster(s) and 814 noise points.
##
##    0    1    2    3    4    5    6
##  814 1585  618  614  924 1656 1789
##
## Available fields: cluster, minPts, coredist, cluster_scores,
##                   membership_prob, outlier_scores, hc

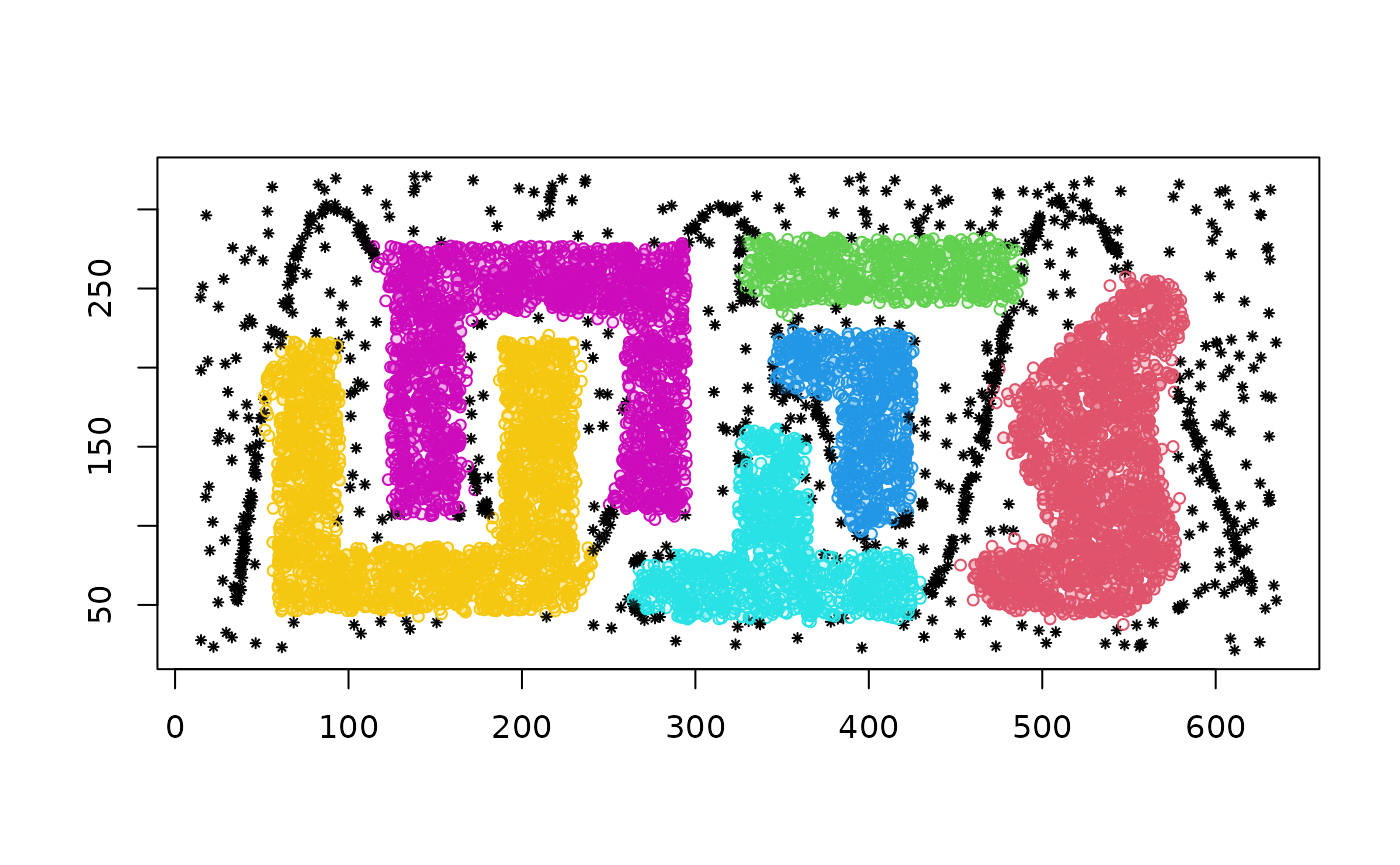

As before, we mark noise points and map the membership probabilities to opacity.

  plot(DS3, col=cl2$cluster+1,
       pch=ifelse(cl2$cluster == 0, 8, 1), # Mark noise as star
       cex=ifelse(cl2$cluster == 0, 0.5, 0.75), # Decrease size of noise
       xlab=NA, ylab=NA)
  colors <- sapply(1:length(cl2$cluster),
                   function(i) adjustcolor(palette()[(cl2$cluster+1)[i]], alpha.f = cl2$membership_prob[i]))
  points(DS3, col=colors, pch=20)

The simplified cluster tree is particularly useful for larger datasets:

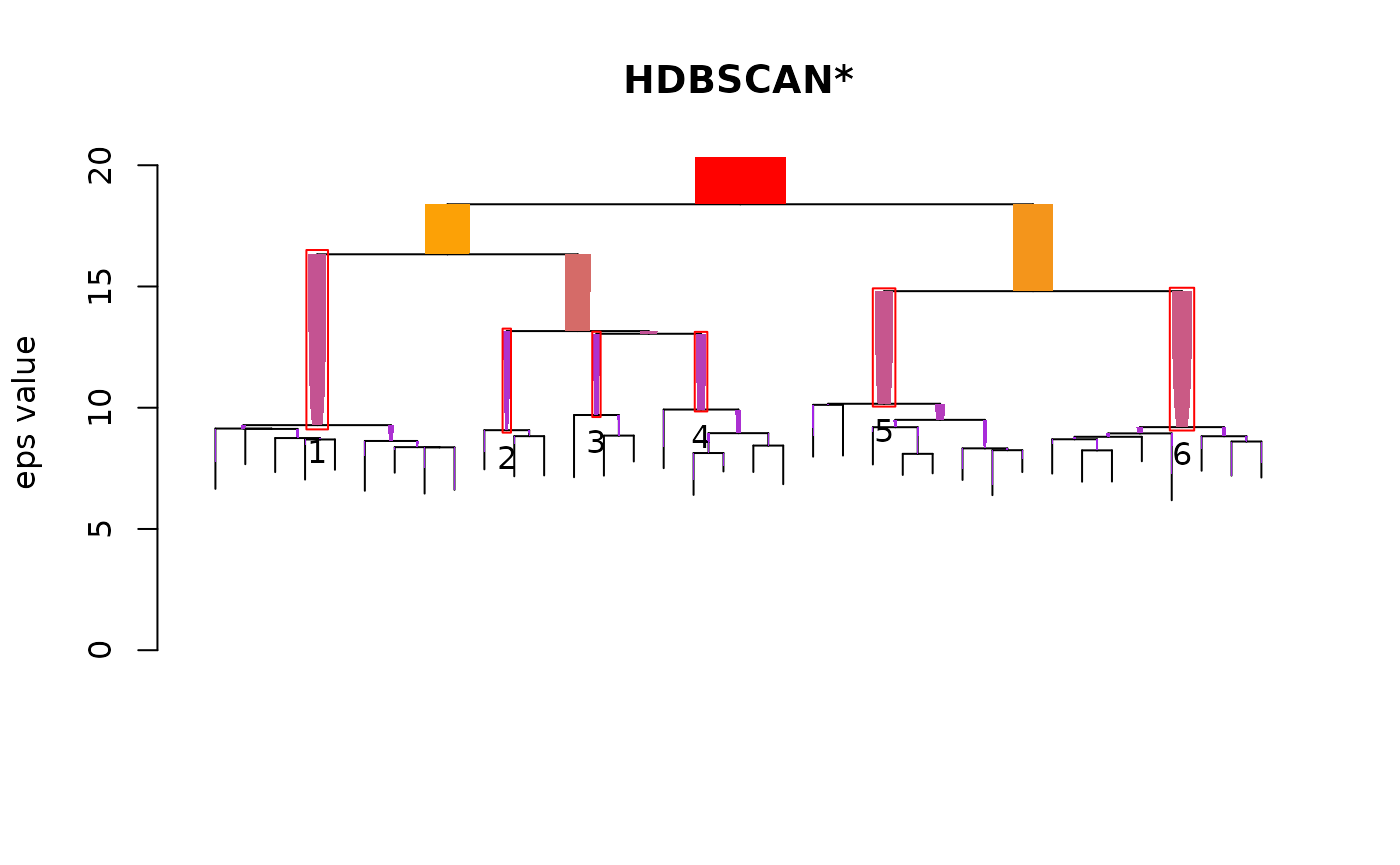

  plot(cl2, scale = 3, gradient = c("purple", "orange", "red"), show_flat = TRUE)

Performance

The computationally intensive steps of HDBSCAN are implemented in C++ using Rcpp. Core distances are computed with a k-d tree based k-nearest-neighbor search. For a data matrix, hdbscan() then constructs the MST of the mutual reachability graph with Prim’s algorithm and computes the (Euclidean) mutual reachability distances on the fly (see mst_mrdist()). The \(n \times n\) distance matrix is never stored, so memory use is \(O(nd)\) for \(n\) points in \(d\) dimensions. The running time is still quadratic in \(n\).

If a dist object is supplied instead of a data matrix, its distances are used directly. This supports other distance measures, but requires \(O(n^2)\) memory.
