Apply a Filter to a Data Stream

Applies a filter (i.e., a convolution with a filter kernel) to a data stream.

Usage

DSF_Convolve(
  dsd = NULL,
  dim = NULL,
  kernel = NULL,
  pre = NULL,
  post = NULL,
  na.rm = FALSE,
  replace = TRUE,
  name = NULL
)

filter_MA(width)

filter_Hamming(width)

filter_diff(lag)

filter_Sinc(fc, fs, width = NULL, bw = NULL)

pow2(x)

Arguments

dsd: An object of class DSD.
dim: Columns to which the filter is applied. The default is all columns.
kernel: A numeric vector of filter weights.
pre, post: Functions applied before and after the convolution.
na.rm: Logical; should missing values be ignored?
replace: Logical; should the original column be replaced? If FALSE, the convolved column is added.
name: Character string used to name a new column. The new name combines the original column name, _, and name.
width: filter width.
lag: an integer indicating which time lag to use.
fc: cutoff frequency.
fs: sampling frequency.
bw: transition bandwidth.
x: values to be squared.

Value

An object of class DSF_Convolve (subclass of DSF and DSD).

Details

A filter kernel is a vector of weights. Several filters are provided.

filter_MA(width) creates a moving average.
filter_diff(lag) calculates lagged differences. Using na.rm = TRUE can introduce artifacts and is not recommended.
filter_Hamming(width) creates a Hamming window.
filter_Sinc(fc, fs, width, bw) creates a windowed-sinc filter. Use either width (filter length) or bw (transition bandwidth) to control the filter roll-off. The relationship is \(width = 4/bw\). See Chapter 16 in Smith (1997).

pre and post are functions called before and after the convolution. For example, use pre = pow2 and post = sqrt to calculate the RMS. pow2() is a convenience function.

References

Steven W. Smith, The Scientist and Engineer's Guide to Digital Signal Processing, California Technical Pub; 1st edition (January 1, 1997). ISBN 0966017633, URL: https://www.dspguide.com/

Author

Michael Hahsler

Examples

data(presidents)

## Example 1: Create a data stream with three copies of president approval ratings.
## We will use several convolutions.
stream <- data.frame(
    approval_orig = presidents,
    approval_MA = presidents,
    approval_diff1 = presidents,
    .time = time(presidents)) %>%
  DSD_Memory()

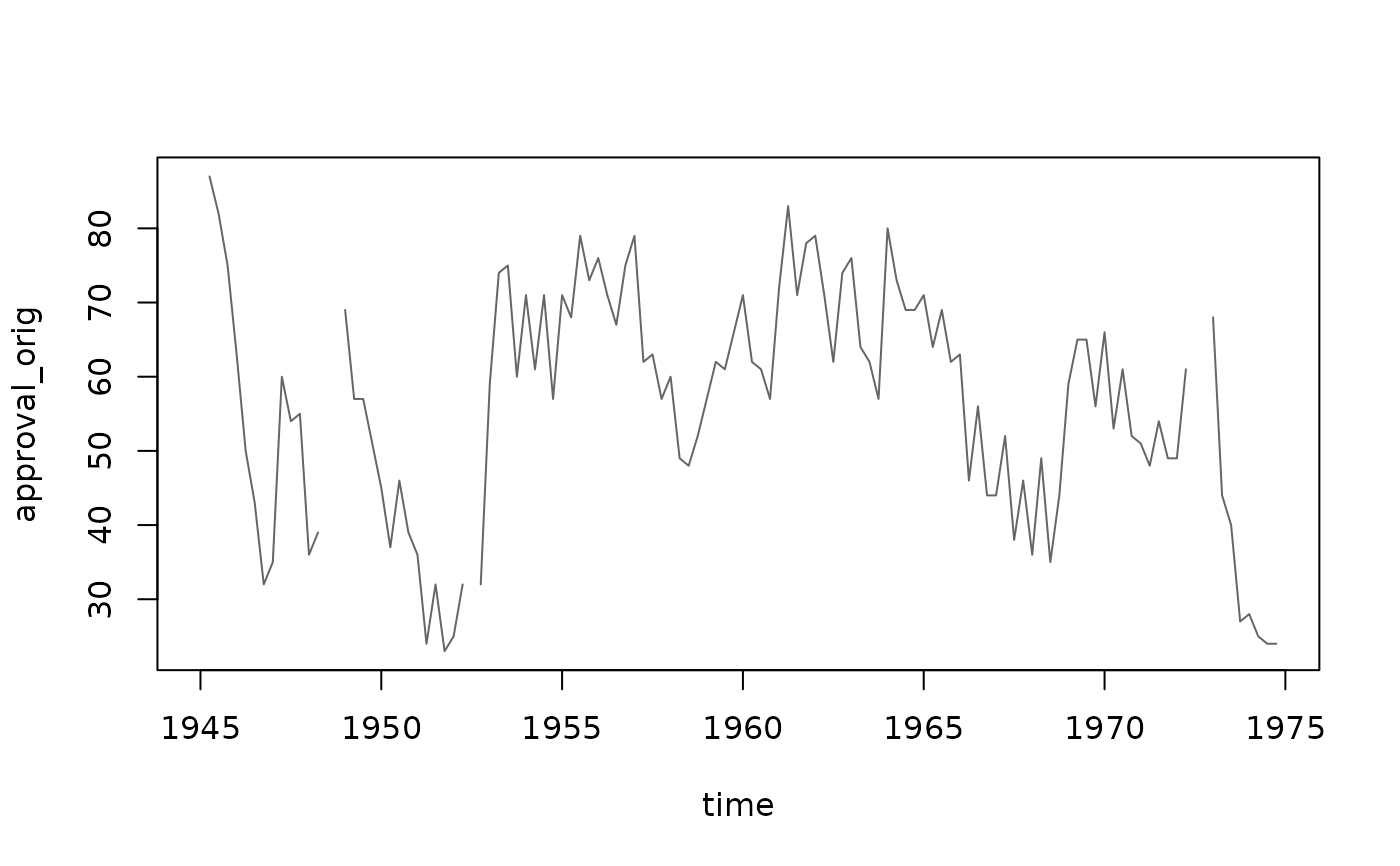

plot(stream, dim = 1, n = 120, method = "ts")


## apply a moving average filter to dimension 1 (using the column name) and diff to dimension 3
filteredStream <- stream %>%
  DSF_Convolve(kernel = filter_MA(5), dim = "approval_orig", na.rm = TRUE) %>%
  DSF_Convolve(kernel = filter_diff(1), dim = 3)
filteredStream
#> Memorized Stream
#> + convolved ("approval_orig": filter_MA(5))
#> + convolved (3: filter_diff(1))
#> Class: DSF_Convolve, DSF, DSD_R, DSD

## resetting the filtered stream also resets the original stream
reset_stream(filteredStream)
ps <- get_points(filteredStream, n = 120)
head(ps)
#>   weight weight.1 approval_orig approval_MA approval_diff1   .time
#> 1      1        1            NA          NA             NA 1945.00
#> 2      1        1           NaN          87             87 1945.25
#> 3      1        1     -2.500000          82             82 1945.50
#> 4      1        1     -3.166667          75             75 1945.75
#> 5      1        1     -4.583333          63             63 1946.00
#> 6      1        1     -5.350000          50             50 1946.25

year <- ps[[".time"]]
approval <- remove_info(ps)

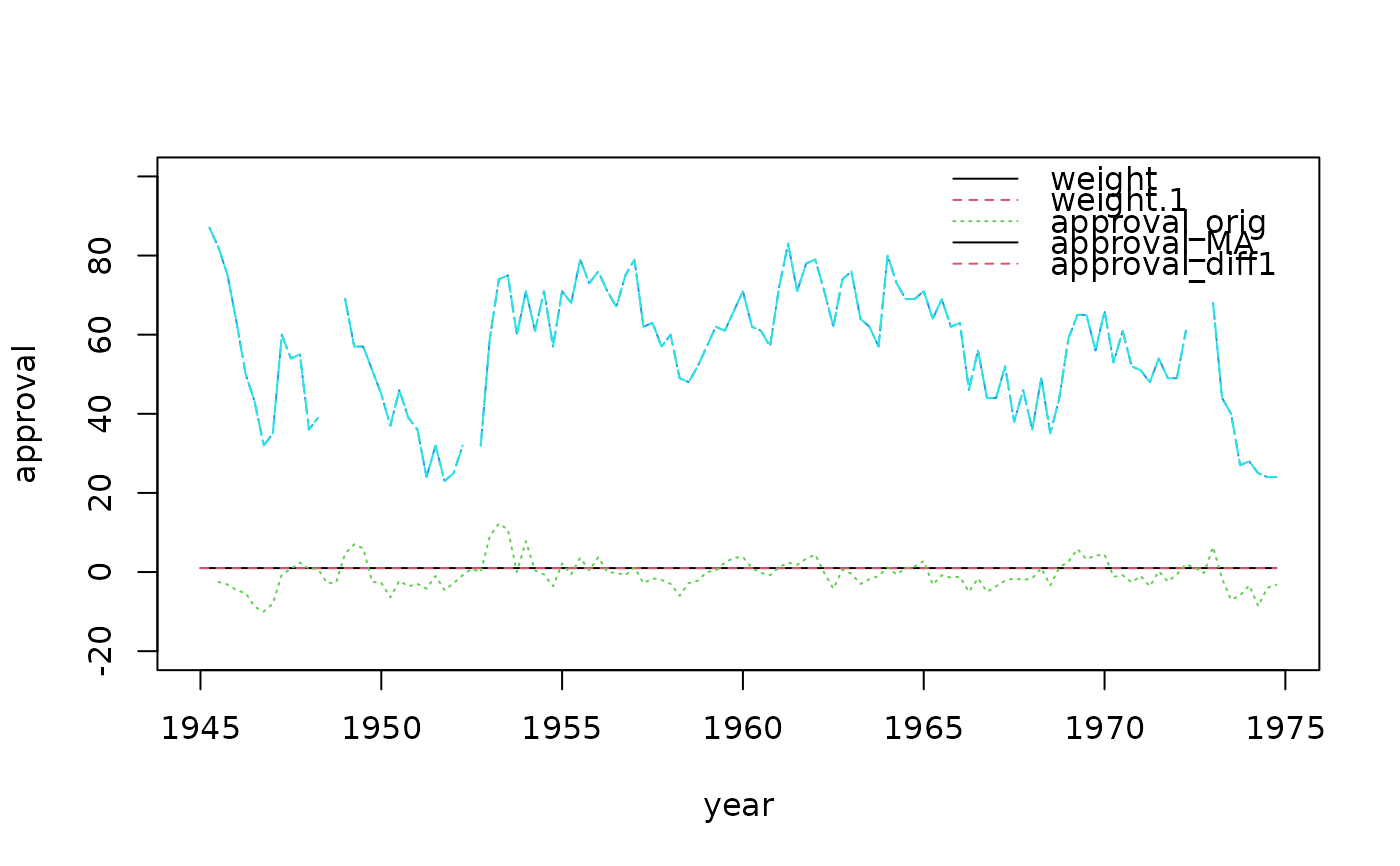

matplot(year, approval, type = "l", ylim = c(-20, 100))
legend("topright", colnames(approval), col = 1:3, lty = 1:3, bty = "n")


## Example 2: Create a stream with a constant sine wave and apply
## a moving average, an RMS envelope and a differences
stream <- DSD_Memory(data.frame(y = sin(seq(0, 2 * pi - (2 * pi / 100) ,
  length.out = 100))), loop = TRUE)

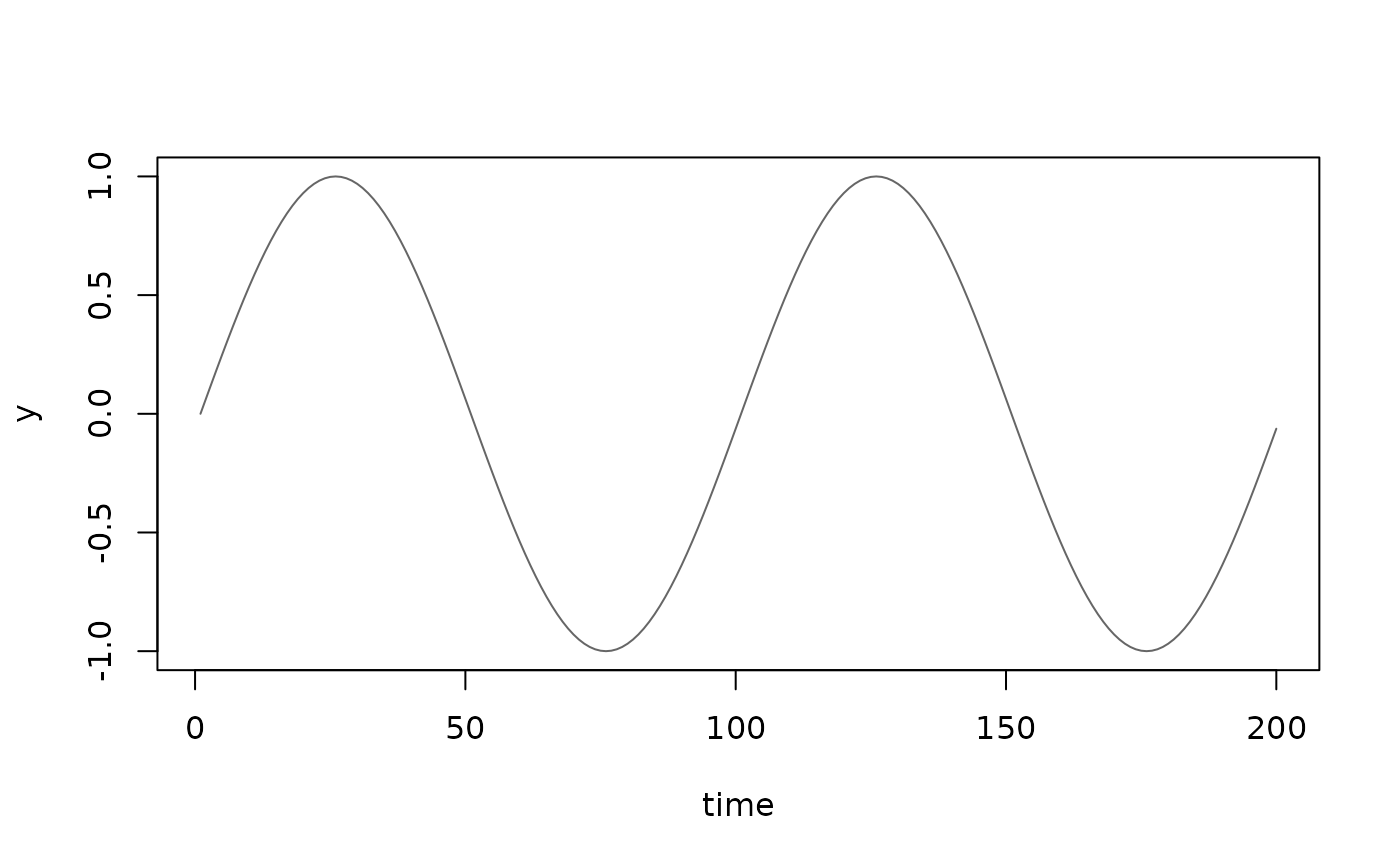

plot(stream, n = 200, method = "ts")


filteredStream <- stream %>%
  DSF_Convolve(kernel = filter_MA(100), dim = 1,
    replace = FALSE, name = "MA") %>%
  DSF_Convolve(kernel = filter_MA(100), pre = pow2, post = sqrt, dim = 1,
    replace = FALSE, name = "RMS") %>%
  DSF_Convolve(kernel = filter_diff(1), dim = 1,
    replace = FALSE, name = "diff1")
filteredStream
#> Memorized Stream
#> + convolved (1: MA)
#> + convolved (1: RMS)
#> + convolved (1: diff1)
#> Class: DSF_Convolve, DSF, DSD_R, DSD

ps <- get_points(filteredStream, n = 500)
head(ps)
#>   weight weight.2 weight.1          y weight_MA weight_RMS weight_diff1
#> 1      1        1        1 0.00000000         1          1            0
#> 2      1        1        1 0.06279052         1          1            0
#> 3      1        1        1 0.12533323         1          1            0
#> 4      1        1        1 0.18738131         1          1            0
#> 5      1        1        1 0.24868989         1          1            0
#> 6      1        1        1 0.30901699         1          1            0

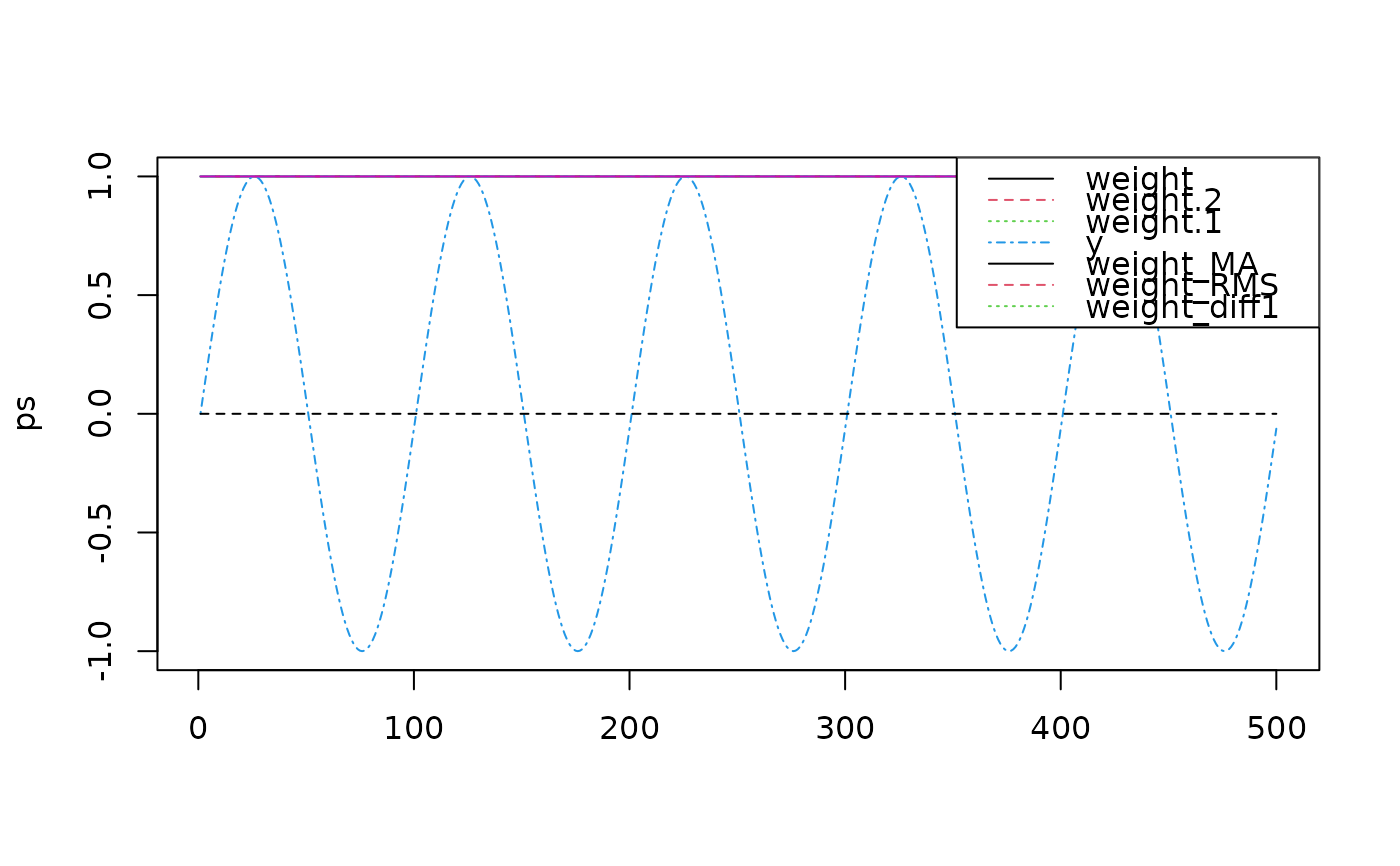

matplot(ps, type = "l")
legend("topright", colnames(ps), col = 1:4, lty = 1:4)


## Note that MA and RMS use a window of length 200 and are missing at the
##   beginning of the stream the window is full.

## Filters: look at different filters
filter_MA(5)
#> [1] 0.2 0.2 0.2 0.2 0.2
filter_diff(1)
#> [1] -1  1

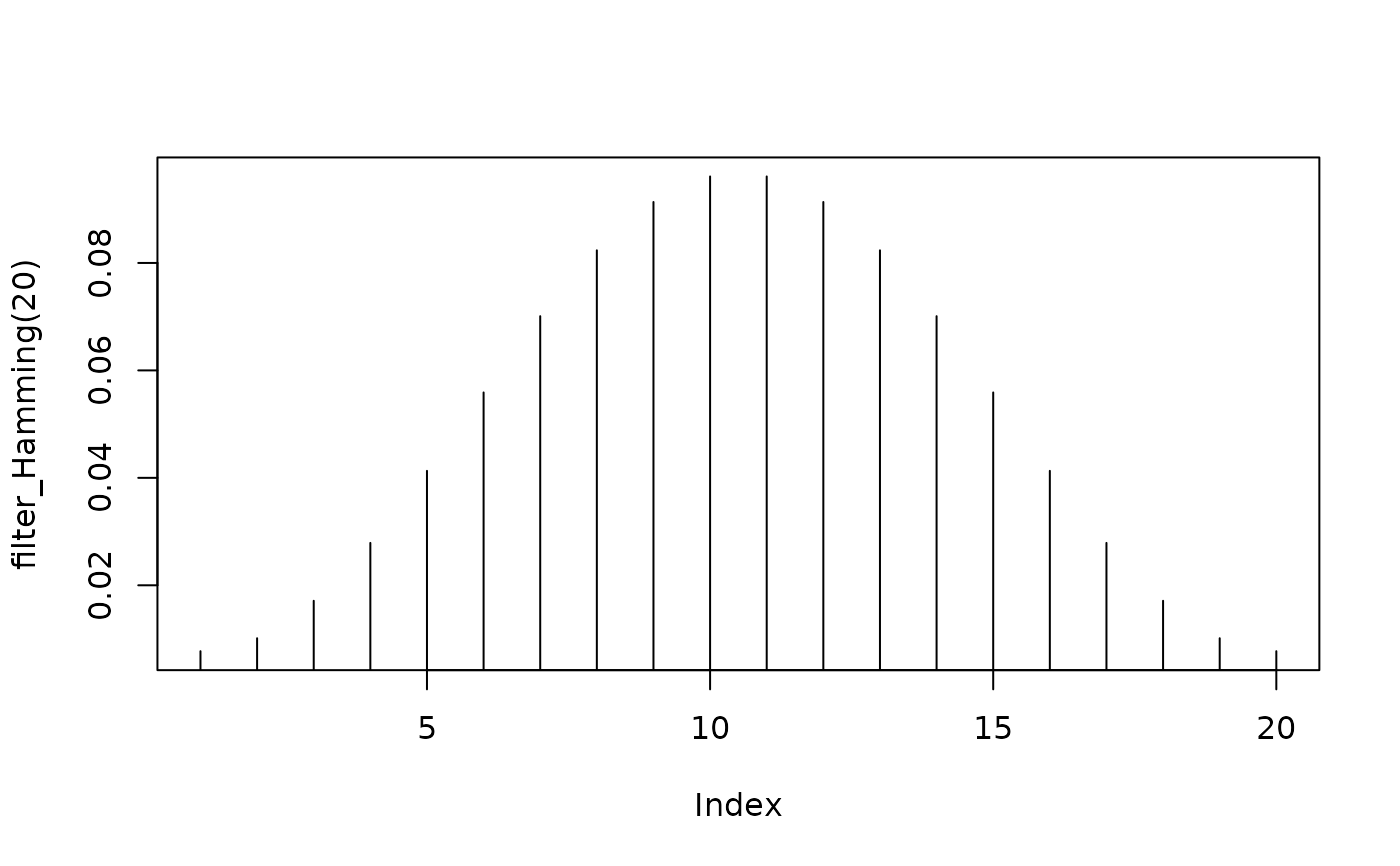

plot(filter_Hamming(20), type = "h")

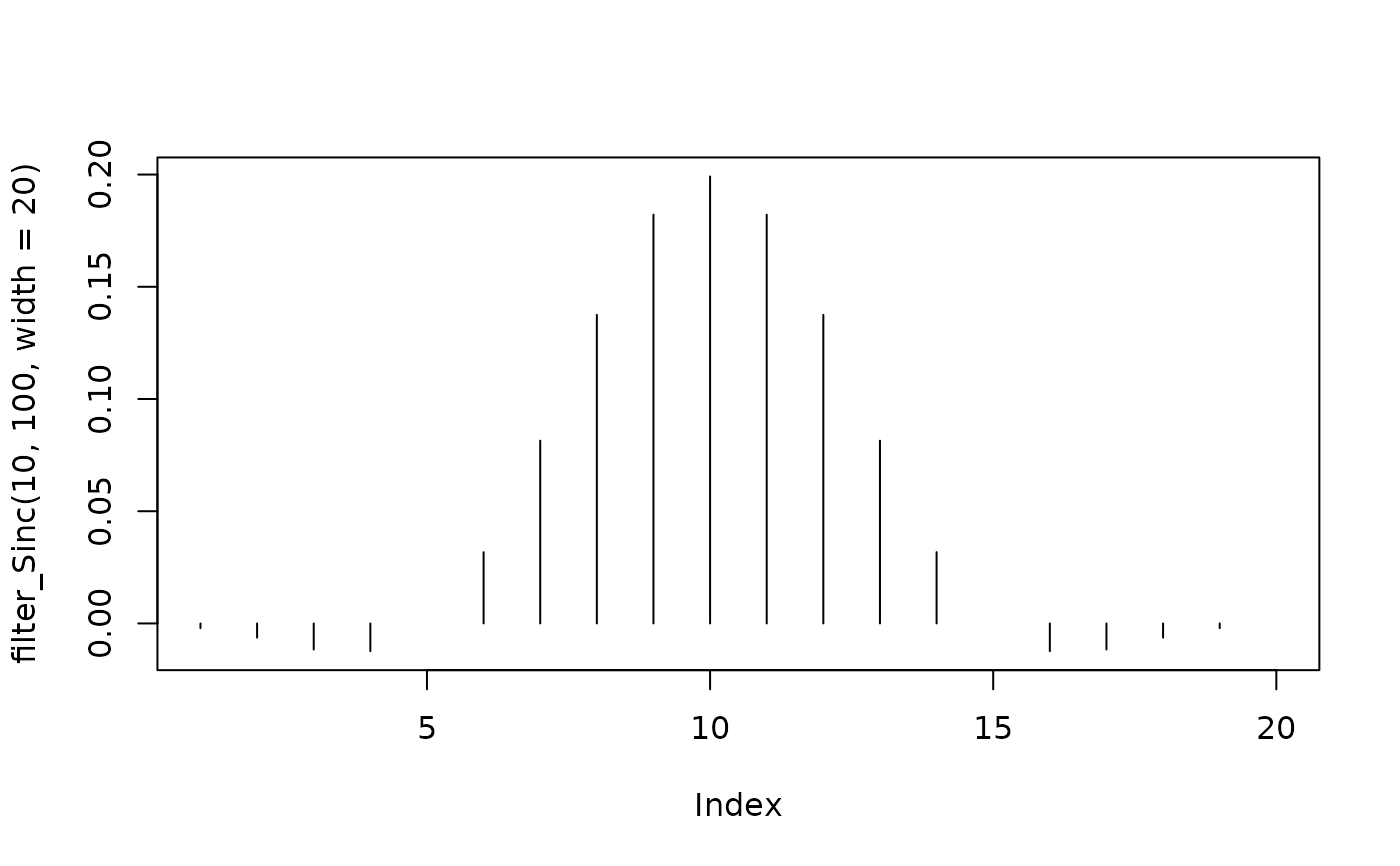

plot(filter_Sinc(10, 100, width = 20), type = "h")
