R package stream - Infrastructure for Data Stream Mining

Package on CRAN CRAN RStudio mirror downloads Licenser-universe status

Maintainer: Michael Hahsler

Introduction

The package provides support for modeling and simulating data streams as well as an extensible framework for implementing, interfacing and experimenting with algorithms with a focus on data stream clustering tasks. The main advantage of stream is that it seamlessly integrates with the large existing infrastructure provided by R. The package provides:

  • Stream Sources: streaming from files, databases, in-memory data, URLs, pipes, socket connections and several data stream generators including dynamically streams with concept drift.
  • Stream Processing with filters (convolution, scaling, exponential moving average, …)
  • Stream Aggregation: sampling, windowing.
  • Stream Clustering: BICO, BIRCH, D-Stream, DBSTREAM, and evoStream.
  • Stream Outlier Detection based on D-Stream, DBSTREAM.
  • Stream Mining Evaluation with prequential error estimation.

Additional packages in the stream family are:

  • streamConnect: Connect stream mining components using sockets and web services.
  • streamMOA: Interface to clustering algorithms implemented in the MOA framework. The package interfaces clustering algorithms like of DenStream, ClusTree, CluStream and MCOD.
  • rEMM: Provides implementations of threshold nearest neighbor clustering (tNN) and Extensible Markov Model (EMM) for modelling temporal relationships between clusters.

To cite package ‘stream’ in publications use:

Hahsler M, Bolaños M, Forrest J (2017). “Introduction to stream: An Extensible Framework for Data Stream Clustering Research with R.” Journal of Statistical Software, 76(14), 1-50. doi:10.18637/jss.v076.i14 https://doi.org/10.18637/jss.v076.i14.

@Article{,
  title = {Introduction to {stream}: An Extensible Framework for Data Stream Clustering Research with {R}},
  author = {Michael Hahsler and Matthew Bola{\~n}os and John Forrest},
  journal = {Journal of Statistical Software},
  year = {2017},
  volume = {76},
  number = {14},
  pages = {1--50},
  doi = {10.18637/jss.v076.i14},
}

Installation

Stable CRAN version: Install from within R with

Current development version: Install from r-universe.

install.packages("stream",
    repos = c("https://mhahsler.r-universe.dev",
              "https://cloud.r-project.org/"))

Usage

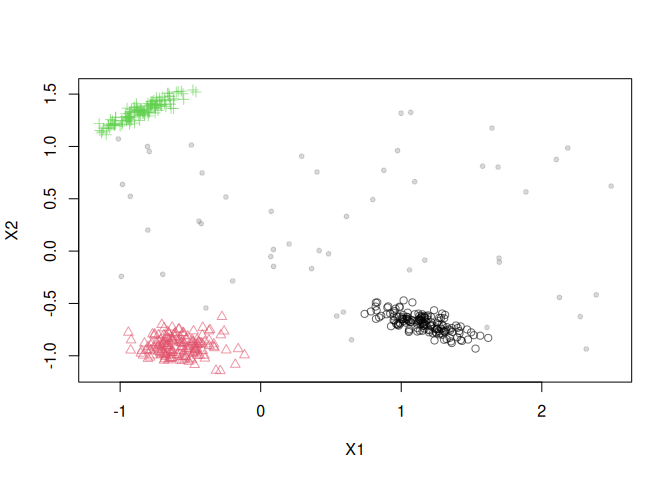

Load the package and a random data stream with 3 Gaussian clusters and 10% noise and scale the data to z-scores.

library("stream")
set.seed(2000)

stream <- DSD_Gaussians(k = 3, d = 2, noise = 0.1) %>%
    DSF_Scale()
get_points(stream, n = 5)
##       X1     X2 .class
## 1 -0.267 -0.802      2
## 2  0.531  1.078     NA
## 3 -0.706  1.427      3
## 4 -0.781  1.355      3
## 5  1.170 -0.712      1
plot(stream)

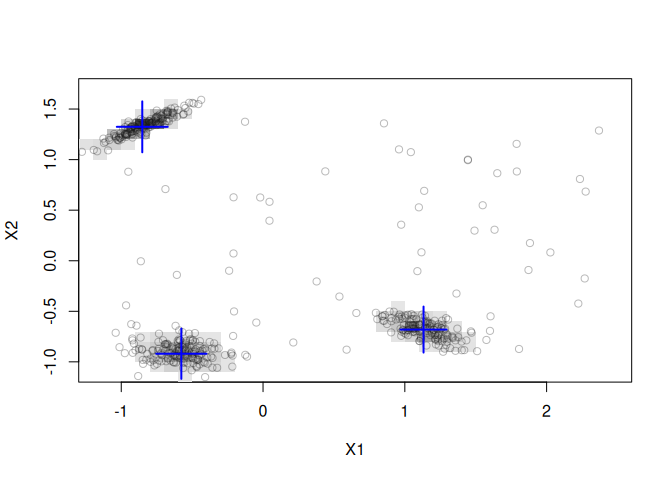

Cluster a stream of 1000 points using D-Stream which estimates point density in grid cells.

dsc <- DSC_DStream(gridsize = 0.1)
update(dsc, stream, 1000)
plot(dsc, stream, grid = TRUE)

evaluate_static(dsc, stream, n = 100)
## Evaluation results for micro-clusters.
## Points were assigned to micro-clusters.
##
##             numPoints      numMicroClusters      numMacroClusters
##              100.0000               65.0000                3.0000
##        noisePredicted                   SSQ            silhouette
##               23.0000                0.1696                0.0786
##       average.between        average.within          max.diameter
##                1.7809                0.5816                3.9368
##        min.separation ave.within.cluster.ss                    g2
##                0.0146                0.5217                0.1596
##          pearsongamma                  dunn                 dunn2
##                0.0637                0.0037                0.0154
##               entropy              wb.ratio            numClasses
##                3.1721                0.3266                4.0000
##           noiseActual        noisePrecision        outlierJaccard
##               16.0000                0.6957                0.6957
##             precision                recall                    F1
##                0.6170                0.1618                0.2563
##                purity             Euclidean             Manhattan
##                0.9920                0.1633                0.3000
##                  Rand                 cRand                   NMI
##                0.7620                0.1688                0.5551
##                    KP                 angle                  diag
##                0.2651                0.3000                0.3000
##                    FM               Jaccard                    PS
##                0.3159                0.1470                0.0541
##                    vi
##                2.2264
## attr(,"type")
## [1] "micro"
## attr(,"assign")
## [1] "micro"

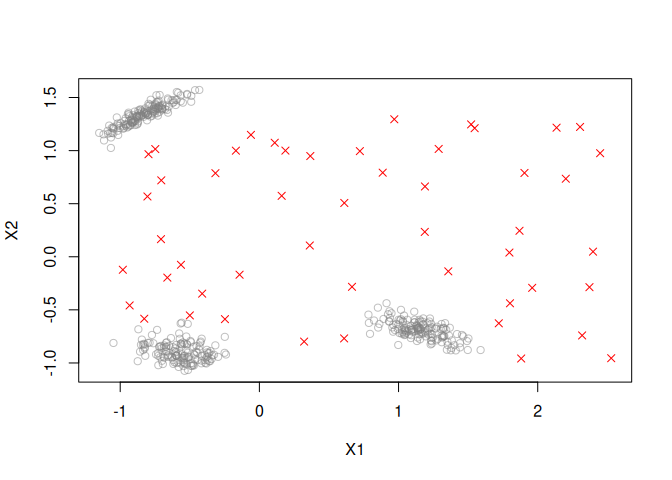

Outlier detection using DBSTREAM which uses micro-clusters with a given radius.

dso <- DSOutlier_DBSTREAM(r = 0.1)
update(dso, stream, 1000)
plot(dso, stream)

evaluate_static(dso, stream, n = 100, measure = c("numPoints", "noiseActual", "noisePredicted",
    "noisePrecision"))
## Evaluation results for micro-clusters.
## Points were assigned to micro-clusters.
##
##      numPoints    noiseActual noisePredicted noisePrecision
##            100              7              7              1
## attr(,"type")
## [1] "micro"
## attr(,"assign")
## [1] "micro"

Preparing complete stream process pipelines that can be run using a single update() call.

pipeline <- DSD_Gaussians(k = 3, d = 2, noise = 0.1) %>%
    DSF_Scale() %>%
    DST_Runner(DSC_DStream(gridsize = 0.1))
pipeline
## DST pipline runner
## DSD: Gaussian Mixture (d = 2, k = 3)
## + scaled
## DST: D-Stream
## Class: DST_Runner, DST
update(pipeline, n = 500)
pipeline$dst
## D-Stream
## Class: DSC_DStream, DSC_Micro, DSC_R, DSC
## Number of micro-clusters: 160
## Number of macro-clusters: 13

Acknowledgments

The development of the stream package was supported in part by NSF IIS-0948893, NSF CMMI 1728612, and NIH R21HG005912.
