Greedy Actions and Policies

Extract a greedy policy or select a greedy action from a solved model or a Q matrix.

Usage

greedy_action(x, s, Q = NULL, epsilon = 0, as = "factor", prob = FALSE)

greedy_policy(x)

Arguments

x

a solved MDP model or a Q matrix.

s

a state.

Q

an optional Q-matrix.

epsilon

an epsilon > 0 applies an epsilon-greedy policy.

as

string, format for returning the action (e.g., "factor", "id", "label").

prob

logical; return a probability distribution over the actions.

Value

• greedy_action() returns the action with the highest q-value for state s. If prob = TRUE, then a vector with the probability for each action is returned.

• greedy_policy() returns a data.frame with the policy.

greedy_policy() returns the greedy policy given Q.

References

Sutton, R. S., Barto, A. G. (2020). Reinforcement Learning: An Introduction. Second edition. The MIT Press.

See also

Other policy: action(), expected_return(), policy(), policy_evaluation(), regret(), visit_probability()

Author

Michael Hahsler

Examples

data(Maze)
Maze
#> MDPModel, MDP - Stuart Russell's 3x4 Maze
#>   Discount factor: 1
#>   Horizon: Inf epochs
#>   Size: 4 actions / 11 states
#>   Storage: transition prob as matrix / reward as matrix. Total size: 28.8 Kb
#>   Start: s(3,1)
#>   Model list components: ‘name’, ‘discount’, ‘horizon’, ‘states’,
#>     ‘actions’, ‘start’, ‘transition_model’, ‘reward’, ‘info’,
#>     ‘absorbing_states’

# create a random policy and calculate q-values
pi_random <- random_policy(Maze)
pi_random
#>     state  V action
#> 1  s(1,1) NA   left
#> 2  s(2,1) NA     up
#> 3  s(3,1) NA  right
#> 4  s(1,2) NA   left
#> 5  s(3,2) NA     up
#> 6  s(1,3) NA  right
#> 7  s(2,3) NA   left
#> 8  s(3,3) NA     up
#> 9  s(1,4) NA     up
#> 10 s(2,4) NA   left
#> 11 s(3,4) NA  right

V <- policy_evaluation(Maze, pi_random)
V
#>      s(1,1)      s(2,1)      s(3,1)      s(1,2)      s(3,2)      s(1,3)
#> -40.0000000 -40.0000000  -9.0419397 -40.0000000  -5.1330044   0.8196383
#>      s(2,3)      s(3,3)      s(1,4)      s(2,4)      s(3,4)
#>  -0.2237390  -0.8714694   0.0000000   0.0000000  -1.4000000

# calculate Q values
Q <- Q_values(Maze, V)
Q
#>                 up       right        down        left
#> s(1,1) -40.0400000 -40.0400000 -40.0400000 -40.0400000
#> s(2,1) -40.0400000 -36.9441940 -15.2735518 -36.9441940
#> s(3,1) -33.4574944  -9.0505975  -8.6910462 -12.1777458
#> s(1,2) -35.9580362  -7.3842894 -35.9580362 -40.0400000
#> s(3,2)  -5.1377445  -1.7637764  -5.1377445  -8.3001527
#> s(1,3)  -3.2842894   0.8195899  -4.1189912 -31.9804101
#> s(2,3)   0.4933367  -0.8451831  -0.8595494  -0.2241743
#> s(3,3)  -0.8722917  -1.2695208  -1.3904760  -4.2559244
#> s(1,4)   0.0000000   0.0000000   0.0000000   0.0000000
#> s(2,4)   0.0000000   0.0000000   0.0000000   0.0000000
#> s(3,4)  -1.0671469  -1.4000000  -1.3871469  -0.9771755

# get the greedy policy form the Q values
pi_greedy <- greedy_policy(Q)
pi_greedy
#>     state           V action
#> 1  s(1,1) -40.0400000  right
#> 2  s(2,1) -15.2735518   down
#> 3  s(3,1)  -8.6910462   down
#> 4  s(1,2)  -7.3842894  right
#> 5  s(3,2)  -1.7637764  right
#> 6  s(1,3)   0.8195899  right
#> 7  s(2,3)   0.4933367     up
#> 8  s(3,3)  -0.8722917     up
#> 9  s(1,4)   0.0000000     up
#> 10 s(2,4)   0.0000000     up
#> 11 s(3,4)  -0.9771755   left
Maze_with_policy <- add_policy(Maze, pi_greedy)

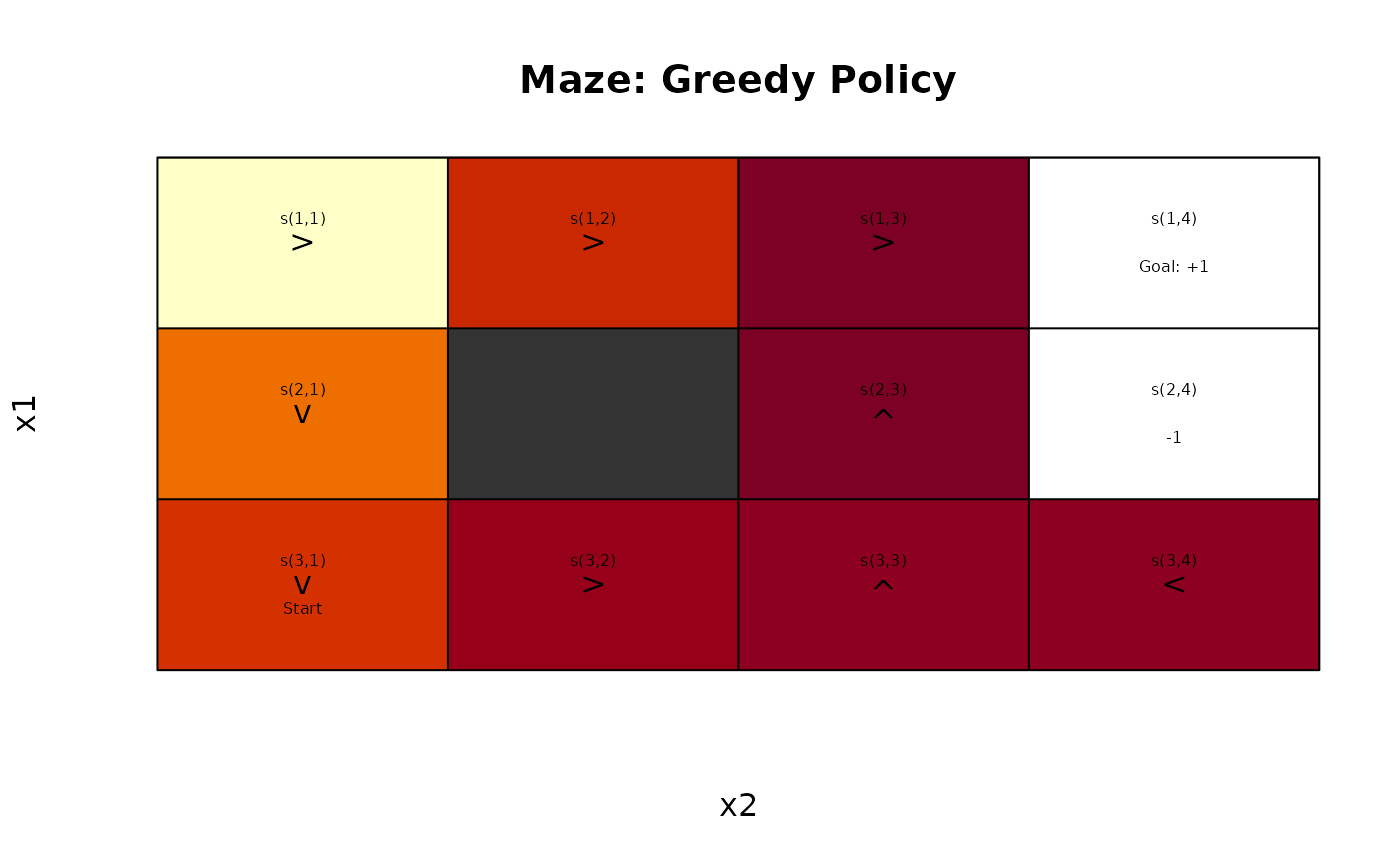

gw_plot(Maze_with_policy, main = "Maze: Greedy Policy")


# find the greedy/ epsilon-greedy action for the top-left corner state
greedy_action(Maze, "s(1,1)", Q, epsilon = 0, prob = FALSE)
#> right
#> right
#> Levels: up right down left
greedy_action(Maze, "s(1,1)", Q, epsilon = 0, prob = TRUE)
#>    up right  down  left
#>     0     1     0     0
greedy_action(Maze, "s(1,1)", Q, epsilon = .1, prob = TRUE)
#>    up right  down  left
#> 0.025 0.925 0.025 0.025

# we can also specify a model with a policy and use the internal Q-values
greedy_action(Maze_with_policy, "s(1,1)", epsilon = .1, prob = TRUE)
#>    up right  down  left
#> 0.025 0.925 0.025 0.025
