Common interface to all TSP solvers in this package.

Usage

solve_TSP(x, method = NULL, control = NULL, ...)

# S3 method for class 'TSP'
solve_TSP(x, method = NULL, control = NULL, ...)

# S3 method for class 'ATSP'
solve_TSP(x, method = NULL, control = NULL, as_TSP = FALSE, ...)

# S3 method for class 'ETSP'
solve_TSP(x, method = NULL, control = NULL, ...)

Arguments

x

a TSP problem.

method

method to solve the TSP (default: "arbitrary insertion" construction followed by the "two_opt" improvement heuristic).

control

a list of arguments passed on to the TSP solver selected by method.

...

additional arguments are added to control.

as_TSP

should the ATSP reformulated as a TSP for the solver?

Value

An object of class TOUR.

TSP Methods

TSP supports tour construction methods, tour improvement heuristics and an interface to Concorde (a state-of-the-art external solver). Tour construction methods create a tour from scratch, typically using a construction heuristic. Tour improvement heuristics take an existing tour and try to improve it. If no initial tour is provided for the improvement heuristic, then an initial tour (e.g., a random tour) is automatically created.

Most heuristic methods accept the following extra control parameters in addition to the parameters specified below:

  • "rep": an integer indicating how many replications (random restarts) should be performed. The best result is returned. The replications can be performed in parallel (see Section Parallel Execution Support).

  • "opt": a character string selecting a local-search refinement that is performed on the constructed tour. This is just for convenience so a constructive heuristic can be followed by refinement in a single call. Available values are "two" (2-opt), "or" (Or-opt), "three" (3-opt), and "two+or" (2-opt and Or-opt alternately until neither improves the tour). The default is no refinement. See the methods "two_opt", "or_opt" and "three_opt" below.

  • "two_opt": deprecated. Use opt = "two" instead.

  • "verbose": a logical. Most implementations provide verbose output to monitor progress. This argument can also be helpful to see what heuristics are used and what the default parameters are.

Tour Construction Methods

These methods construct tours from scratch. The available tour construction methods are:

  • "identity", "random" return a tour representing the order in the data (identity order) or a random order. [TSP, ATSP]

  • "nearest_insertion", "farthest_insertion", "cheapest_insertion", "arbitrary_insertion" Nearest, farthest, cheapest and arbitrary insertion algorithms for symmetric and asymmetric TSPs (Rosenkrantz et al. 1977). [TSP, ATSP]

    The distances between cities are stored in a distance matrix \(D\) with elements \(d(i,j)\). All insertion algorithms start with a tour consisting of an arbitrary city and choose in each step a city \(k\) not yet on the tour. This city is inserted into the existing tour between two consecutive cities \(i\) and \(j\), such that $$d(i,k) + d(k,j) - d(i,j)$$ is minimized. The algorithm stops when all cities are on the tour.

    The nearest insertion algorithm chooses city \(k\) in each step as the city which is nearest to a city on the tour.

    For farthest insertion, the city \(k\) is chosen in each step as the city which is farthest from any city on the tour.

    Cheapest insertion chooses the city \(k\) such that the cost of inserting the new city (i.e., the increase in the tour's length) is minimal.

    Arbitrary insertion chooses the city \(k\) randomly from all cities not yet on the tour.

    Nearest and cheapest insertion try to build the tour using cities that fit well into the partial tour constructed so far. The idea behind farthest insertion is to link distant cities into the tour first to establish an outline of the whole tour early.

    Additional control options:

    • "start" index of the first city (default: a random city).

  • "nn", "repetitive_nn" Nearest neighbor and repetitive nearest neighbor algorithms for symmetric and asymmetric TSPs (Rosenkrantz et al. 1977). [TSP, ATSP]

    The algorithm starts with a tour containing a random city. Then the algorithm always adds to the last city on the tour the nearest not yet visited city. The algorithm stops when all cities are on the tour.

    Repetitive nearest neighbor constructs a nearest neighbor tour for each city as the starting point and returns the shortest tour found.

    Additional control options:

    • "start" index of the first city (default: a random city).

Tour Improvement Heuristics

Tour improvement methods take a tour as the argument tour and try to improve the tour. If no tour is provided, a random tour is used as the initial tour.

The following tour improvement heuristics are available:

  • "sa" Simulated Annealing for TSPs (Kirkpatrick et al, 1983) [TSP, ATSP]

    A tour refinement method that uses simulated annealing with subtour reversal as a local move. The optimizer is stats::optim() with method "SANN". This method is typically a lot slower than "two_opt" and requires parameter tuning for the cooling schedule.

    Note: For speed, a relatively small number of evaluations (maxit) is used by default. A much larger value will result in more competitive results.

    Additional control options:

    • "tour" an existing tour which should be improved. If no tour is given, a random tour is used.

    • "local_move" a function that creates a local move with the current tour as the first and the TSP as the second parameter. Defaults to randomized subtour reversal.

    • "temp" initial temperature. Defaults to the length of the current tour divided by the number of cities.

    • "tmax" number of evaluations per temperature step. Default is 10.

    • "maxit" number of evaluations. Default is 10000.

    • "trace" set to 1 to print progress.

    See stats::optim() for more details on the parameters.

  • "two_opt" Two-edge exchange improvement procedure (Croes 1958). [TSP, ATSP]

    This is a tour refinement procedure which systematically exchanges two edges in the graph represented by the distance matrix until no improvements are possible. Exchanging two edges is equal to reversing part of the tour. The resulting tour is called 2-optimal. This heuristic takes \(O(n^2)\) time.

    Additional control options:

    • "tour" an existing tour which should be improved. If no tour is given, a random tour is used.

    • "two_opt_repetitions" number of times to try with random restarts (default: 1).

  • "or_opt" Or-opt segment insertion (Or 1976). [TSP, ATSP]

    This is a tour refinement procedure which moves segments of 1 to max_segment consecutive cities to a better position in the tour until no improvement is possible. For symmetric problems, segments may also be reinserted in reverse order. Or-opt can move a misplaced city or small group of cities in a single step, which 2-opt cannot. It is often also used as an additional improvement step after "two_opt" (see Examples). This heuristic also takes \(O(n^2)\) time.

    Additional control options:

    • "tour" an existing tour which should be improved. If no tour is given, a random tour is used.

    • "max_segment" maximum number of cities in a moved segment (default: 3).

  • "three_opt" Three-edge exchange improvement procedure (Bock 1958; Lin 1965). [TSP, ATSP]

    This is a tour refinement procedure which removes three edges and reconnects the three resulting parts of the tour in the best possible way until no improvements are possible. The resulting tour is called 3-optimal. The search checks all triples of edges and each pass takes \(O(n^3)\) time, so it is only practical for small to medium problems. For ATSPs, only the reconnection that does not reverse any part of the tour is used.

    Additional control options:

    • "tour" an existing tour which should be improved. If no tour is given, a random tour is used.

State-of-the-art Solvers Interfaces

  • "concorde" Concorde algorithm (Applegate et al. 2001). [TSP, ETSP]

    Concorde is an advanced exact TSP solver for symmetric TSPs based on branch-and-cut. ATSPs can be solved using reformulate_ATSP_as_TSP() done automatically with as_TSP = TRUE. The program is not included in this package and has to be obtained and installed separately.

    Additional control options:

    • "exe" a character string containing the path to the executable (see Concorde).

    • "clo" a character string containing command line options for Concorde, e.g., control = list(clo = "-B -v"). See concorde_help() on how to obtain a complete list of available command line options.

    • "precision" an integer which controls the number of decimal places used for the internal representation of distances in Concorde. The values given in x are multiplied by \(10^{precision}\) before being passed on to Concorde. Note that therefore the results produced by Concorde (especially lower and upper bounds) need to be divided by \(10^{precision}\) (i.e., the decimal point has to be shifted precision places to the left). The interface to Concorde uses write_TSPLIB().

    • "seed" an optional whole number between 0 and .Machine$integer.max that is passed on to Concorde's -s option to make its randomized components reproducible. If no seed is specified, Concorde is still seeded: one random number is drawn from R's random number generator and passed on as the seed. Therefore, calling set.seed() before solve_TSP() also makes Concorde reproducible (see Section Reproducible Results). Do not combine seed with -s in clo.

    • "verbose" logical; FALSE suppresses the output printed to the terminal.

  • "linkern" Concorde's Chained Lin-Kernighan heuristic (Applegate et al. 2003). [TSP, ETSP]

    The Lin-Kernighan (Lin and Kernighan 1973) heuristic uses variable \(k\) edge exchanges to improve an initial tour. The program is not included in this package and has to be obtained and installed separately (see Concorde).

    Additional control options: see Concorde above. This includes seed, which is passed on to linkern's -s option and is drawn from R's random number generator if it is not specified.

Treatment of NAs and Infinite Values in x

TSP and ATSP need to contain valid distances. NAs are not allowed. Inf is allowed and can be used to model the missing edges in incomplete graphs (i.e., the distance between the two objects is infinite) or infeasible connections. Internally, Inf is replaced by a large value given by \(max(x) + 2 range(x)\). Note that the solution might still place the two objects next to each other (e.g., if x contains several unconnected subgraphs) which results in a path length of Inf. -Inf is replaced by \(min(x) - 2 range(x)\) and can be used to encourage the solver to place two objects next to each other.

Solving ATSP and ETSP

Some solvers (including Concorde) cannot solve ATSP directly. An ATSP can be reformulated as a larger TSP and solved this way. For convenience, solve_TSP() has an extra argument as_TSP which can be set to TRUE to automatically solve the ATSP reformulated as a TSP (see reformulate_ATSP_as_TSP()).

Only methods "concorde" and "linkern" currently solve ETSPs directly. For all other methods, ETSPs are converted into TSPs by creating a distance matrix and then solved. Note: distance matrices can become very large, leading to high memory usage and long computation times.

Parallel Execution Support

If several repetitions are performed (this includes method "repetitive_nn") then foreach is used so they can be performed in parallel on multiple cores/machines. To enable parallel execution an appropriate parallel backend needs to be registered (e.g., doParallel::registerDoParallel()).

Reproducible Results

All randomized methods implemented in this package (e.g., "random", "nn", "arbitrary_insertion", "sa", and repetitions with rep) use R's global random number generator. Call set.seed() before solve_TSP() to make the results reproducible, and note that every call advances the global random-number stream. If a parallel backend is used for repetitions (rep > 1 and "repetitive_nn"), one random number per repetition is drawn from the global random number generator of the main R process and used as the seed of the iteration.

Concorde and linkern are external programs with their own random number generators. The programs are seeded with with one random number is drawn from R's global random number generator. This means that set.seed() also makes their results reproducible. In the unlikely evenet, that a specific seed value for these programs is needed, then it can be set via the control option seed (a whole number between 0 and .Machine$integer.max, e.g., control = list(seed = 1234)), which is passed on to the program via its -s command line option.

References

David Applegate, Robert Bixby, Vasek Chvatal, William Cook (2001): TSP cuts which do not conform to the template paradigm, Computational Combinatorial Optimization, M. Junger and D. Naddef (editors), Springer.doi:10.1007/3-540-45586-8_7

D. Applegate, W. Cook and A. Rohe (2003): Chained Lin-Kernighan for Large Traveling Salesman Problems. INFORMS Journal on Computing, 15(1):82–92. doi:10.1287/ijoc.15.1.82.15157

F. Bock (1958): An algorithm for solving traveling-salesman and related network optimization problems. Unpublished manuscript presented at the 14th ORSA meeting, Saint Louis.

G.A. Croes (1958): A method for solving traveling-salesman problems. Operations Research, 6(6):791–812. doi:10.1287/opre.6.6.791

Kirkpatrick, S., C. D. Gelatt, and M. P. Vecchi (1983): Optimization by Simulated Annealing. Science 220 (4598): 671–80 doi:10.1126/science.220.4598.671

S. Lin and B. Kernighan (1973): An effective heuristic algorithm for the traveling-salesman problem. Operations Research, 21(2): 498–516. doi:10.1287/opre.21.2.498

S. Lin (1965): Computer solutions of the traveling salesman problem. Bell System Technical Journal, 44(10):2245–2269. doi:10.1002/j.1538-7305.1965.tb04146.x

I. Or (1976): Traveling salesman-type combinatorial problems and their relation to the logistics of regional blood banking. PhD thesis, Northwestern University, Evanston, IL.

D.J. Rosenkrantz, R. E. Stearns, and Philip M. Lewis II (1977): An analysis of several heuristics for the traveling salesman problem. SIAM Journal on Computing, 6(3):563–581. doi:10.1007/978-1-4020-9688-4_3

See also

Other solver: Concorde

Author

Michael Hahsler

Examples


## solve a simple Euclidean TSP (using the default method)
etsp <- ETSP(data.frame(x = runif(20), y = runif(20)))
tour <- solve_TSP(etsp)
tour
#> object of class ‘TOUR’
#> result of method ‘arbitrary_insertion+two_opt’ for 20 cities
#> tour length: 3.837619
tour_length(tour)
#> [1] 3.837619

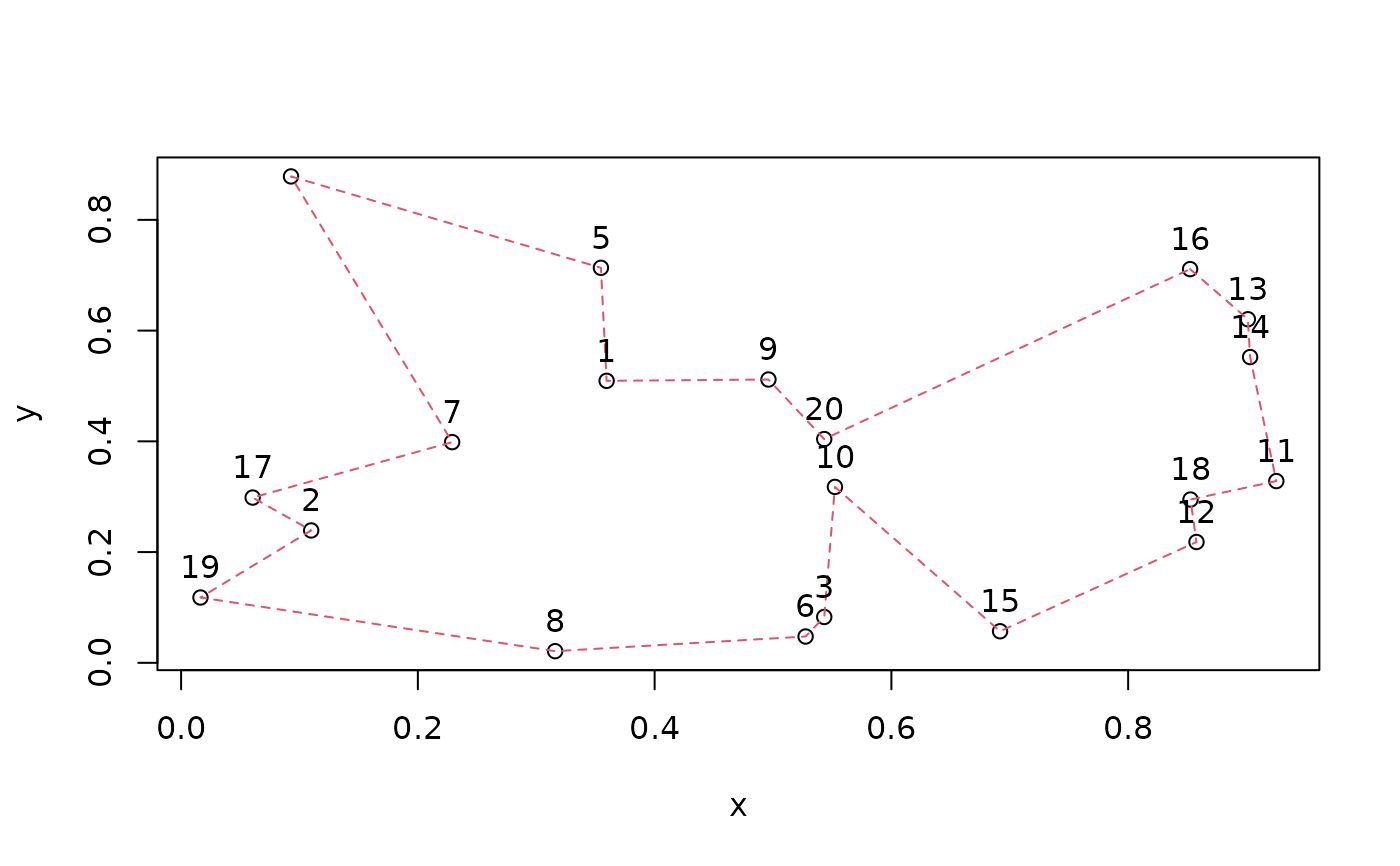

plot(etsp, tour)


## manually run a construction followed by an improvement heuristic by
## calling solve_TSP() twice.
tour_constr <- solve_TSP(etsp, method = "nn")
tour_constr
#> object of class ‘TOUR’
#> result of method ‘nn’ for 20 cities
#> tour length: 4.155962

tour_improved <- solve_TSP(etsp, method = "sa", tour = tour_constr)
tour_improved
#> object of class ‘TOUR’
#> result of method ‘sa’ for 20 cities
#> tour length: 3.895906

## chain improvement heuristics: 2-opt, then Or-opt, then 3-opt
tour_2 <- solve_TSP(etsp, method = "two_opt", tour = tour_constr)
tour_or <- solve_TSP(etsp, method = "or_opt", tour = tour_2)
tour_3 <- solve_TSP(etsp, method = "three_opt", tour = tour_or)
c(nn = tour_length(tour_constr), two_opt = tour_length(tour_2),
  or_opt = tour_length(tour_or), three_opt = tour_length(tour_3))
#>        nn   two_opt    or_opt three_opt
#>  4.155962  4.155962  3.837619  3.837619

## compare methods
data("USCA50")
USCA50
#> object of class ‘TSP’
#> 50 cities (distance ‘euclidean’)
methods <- c("identity", "random", "nearest_insertion",
  "cheapest_insertion", "farthest_insertion", "arbitrary_insertion",
  "nn", "repetitive_nn", "two_opt", "or_opt", "three_opt", "sa")

## calculate tours
tours <- lapply(methods, FUN = function(m) solve_TSP(USCA50, method = m))
names(tours) <- methods

## use the external solver which has to be installed separately
if (FALSE) { # \dontrun{
tours$concorde  <- solve_TSP(USCA50, method = "concorde")
tours$linkern  <- solve_TSP(USCA50, method = "linkern")
} # }

## register a parallel backend to perform repetitions in parallel
if (FALSE) { # \dontrun{
library(doParallel)
registerDoParallel()
} # }

## add some tours using repetition and two_opt refinements
tours$'nn+two_opt' <- solve_TSP(USCA50, method = "nn", opt = "two")
tours$'nn+two_opt+or_opt' <- solve_TSP(USCA50, method = "nn", opt = "two+or")
tours$'nn+rep_10' <- solve_TSP(USCA50, method = "nn", rep = 10)
tours$'nn+two_opt+rep_10' <- solve_TSP(USCA50, method = "nn", opt = "two", rep = 10)
tours$'arbitrary_insertion+two_opt' <- solve_TSP(USCA50)

## show first tour
tours[[1]]
#> object of class ‘TOUR’
#> result of method ‘identity’ for 50 cities
#> tour length: 59321

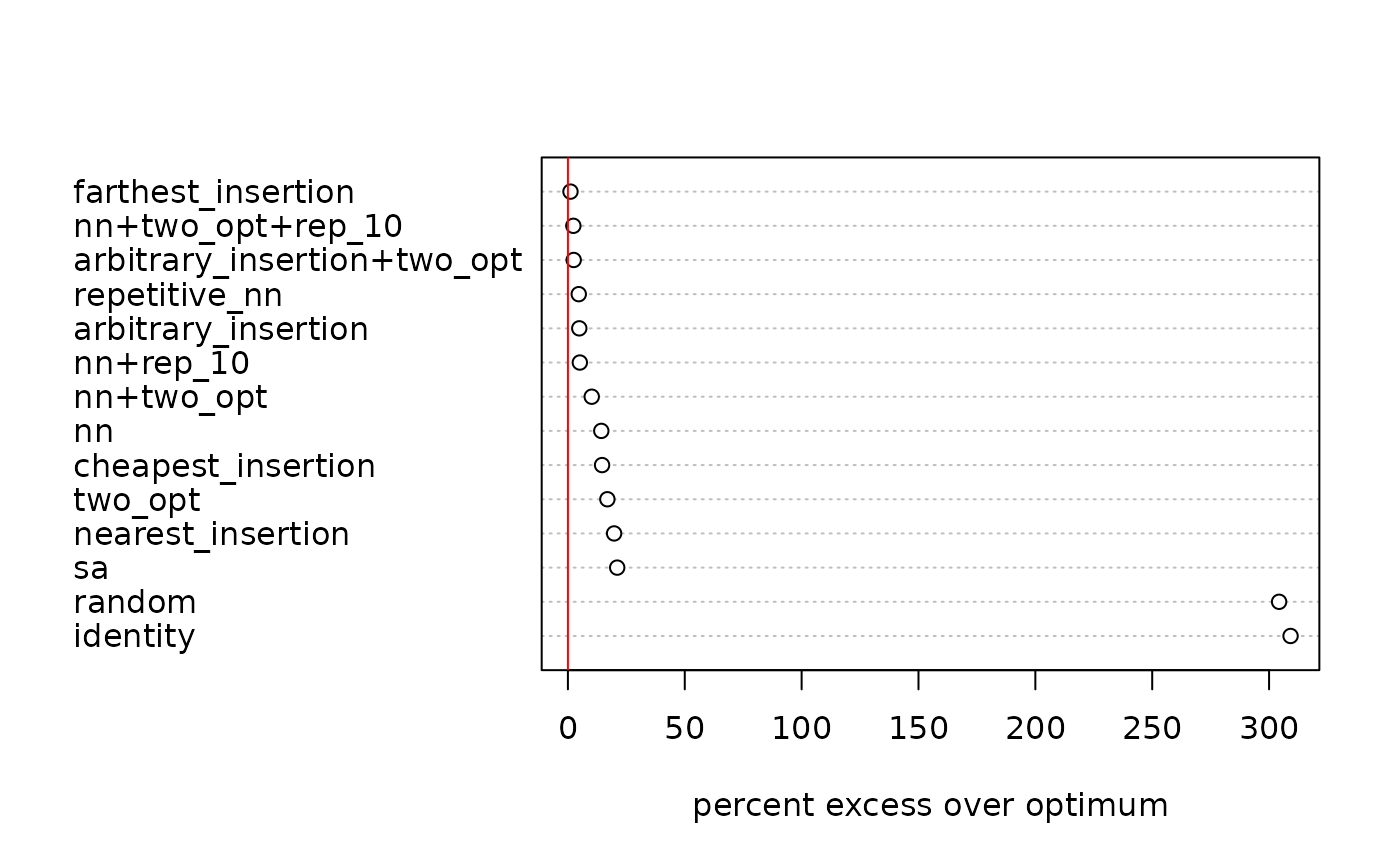

## compare tour lengths
opt <- 14497 # obtained by Concorde
tour_lengths <- sort(sapply(tours, tour_length), decreasing = TRUE)
dotchart(tour_lengths / opt * 100 - 100, xlab = "percent excess over optimum")
abline(v = 0, col = "red")
